JVC KY-F70B - Manual (Page 47)

E43
It is possible to change the video signal which is output from the camera via MONITOR terminal
from positive to negative video.
1.
Press the MODE button to enter the REC mode (REC
lamp on), then press the MENU button for at least 2
seconds to display the REC MENU screen.
2.
Use the UP or DOWN button to select 5. SYSTEM SET-
TING (displayed in purple when selected), then press
the SET button.
The SYSTEM SETTING screen will appear.
3.
Press the UP or DOWN button to select NEGA (NEGA
will be displayed in purple when selected), then press
the SET button.
The set value will be displayed in purple, indicating that
it can be changed.
4.
Press the UP or DOWN button to set the value to ON.
The outputted image will be the negative image.
5.
Pressing the SET button will register the setting to the
memory.
6.
Press the MENU button twice to return to the normal
screen.

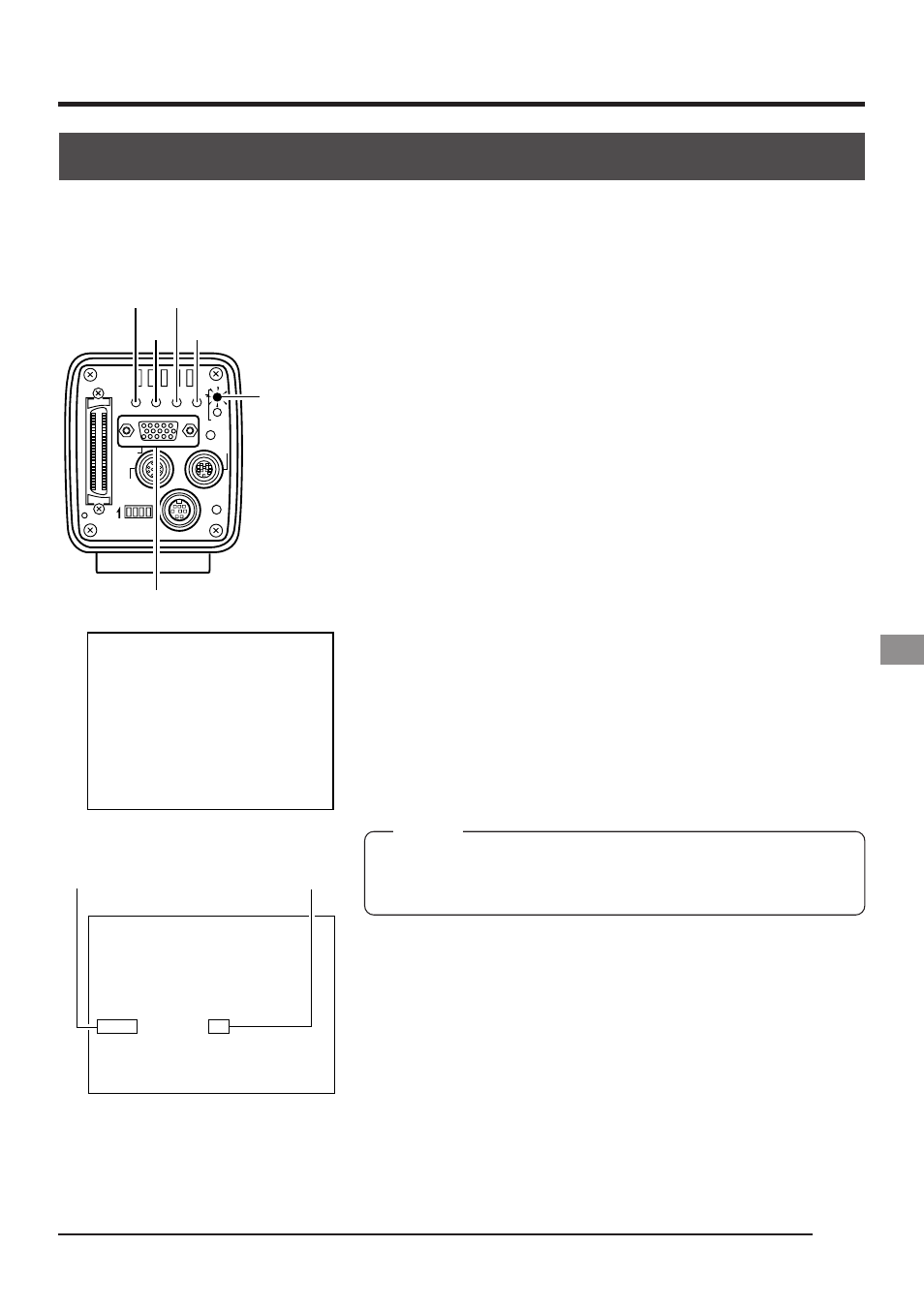

Outputting negative images
SEE INSTRUCTION MANUAL
POWER
DC IN REMOTE
MONITOR LENS
FREEZE
PLAY
SET DOWN
AW/SEL SEND
SCSI
UP MENU
MODE
REC
ON 1 2 3 4
UP
DOWN
MODE/SET
REC lamp
MENU
- - - ET T I NG - - - SYSTEM S
ON SCREEN
FRZ D I S PLAY
I T Y
:
:
:
MEMORY NUM
: 0.7 V
: ON
R CL EA . .
: PR IO R
MON I T
: N AR ROW AREA
O R
: OF F SYNC G ON
MORY
BAR L EVE L
NEGA
MENU RE
I T ME AD J UST
S
V I DEO ME
ET . .
O N
F I N E
D I S K
REC MENU screen
SYSTEM SETTING screen
Set value Menu item
MONITOR terminal
Pressing the MENU button without pressing the SET button
will return the unit to its previous settings without confirm-
ing the changes.
MEMO
REC - - - MENU - - -
1 : EXPOSURE . .
2 : WH I TE BA L ANCE . .
3 : FREEZE . .
4 : PROCESS . .
5 : SYSTEM SET T I NG . .
