E14

Compatible Printer

(Mitsubishi CP-700DSU/E)

CP-770DW
CP-800DW

AC ADAPTER AA-P700

ON

OFF

POWER

POWER

ALARM

SHEET

PAPER

DATA

OPEN

CP700DSA

MITSUBISHI

ONLINE

COPY

AA-P700

AC

MONITOR

VIDEO IN

SCSI

DC IN

KY-F70B

CAMERA

DIGITAL

C-MOUNT

& CUT

PAPER FEED

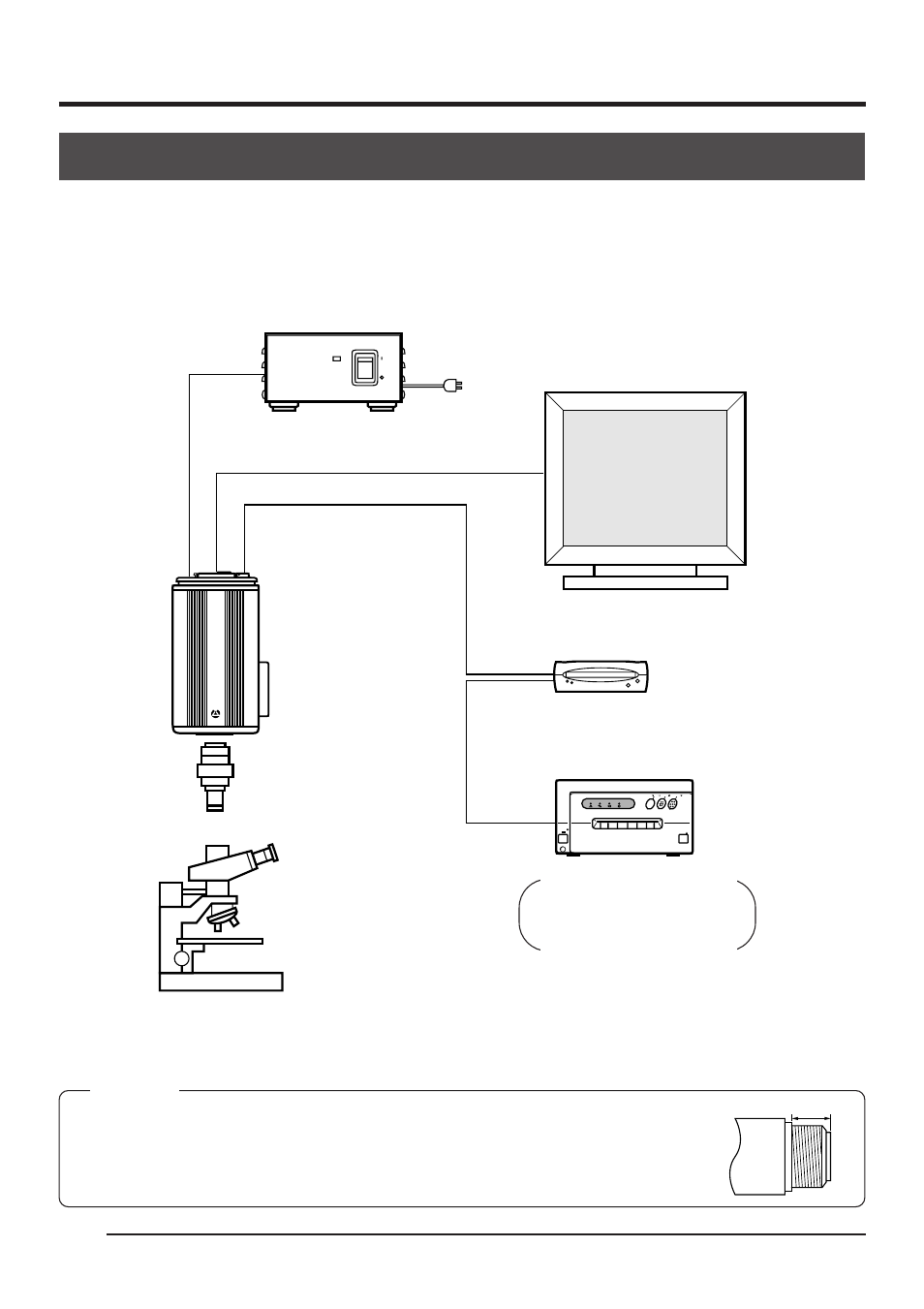

2. Before recording

Basic system 1

While checking the images from the camera on the monitor, output the images to an MO disk,
Zip

®

disk or printer.

• Be sure to terminate the last device on the SCSI bus.
• For the power supply, always use the AA-P700 AC adapter.

Connect to the
power supply
(

੬ page 18)

AC adapter

Connect the PC monitor (VGA)
(

੬ page 19)

VGA monitor

Connect the MO/Zip

®

drive (

੬ page 20)

MO drive
or Zip

®

drive

Connect the printer
(

੬ page 21)

CAUTION

Use a 1/2 inch C mount microscope adapter compatible to the used microscope.

To avoid damage to the unit, always use an adapter that is 4mm or less from

the lens mount side.

Microscope
adapter

4mm or less

Adapter
