1-10 McDATA Sphereon 4300 Fabric Switch Installation and Service Manual
General Information

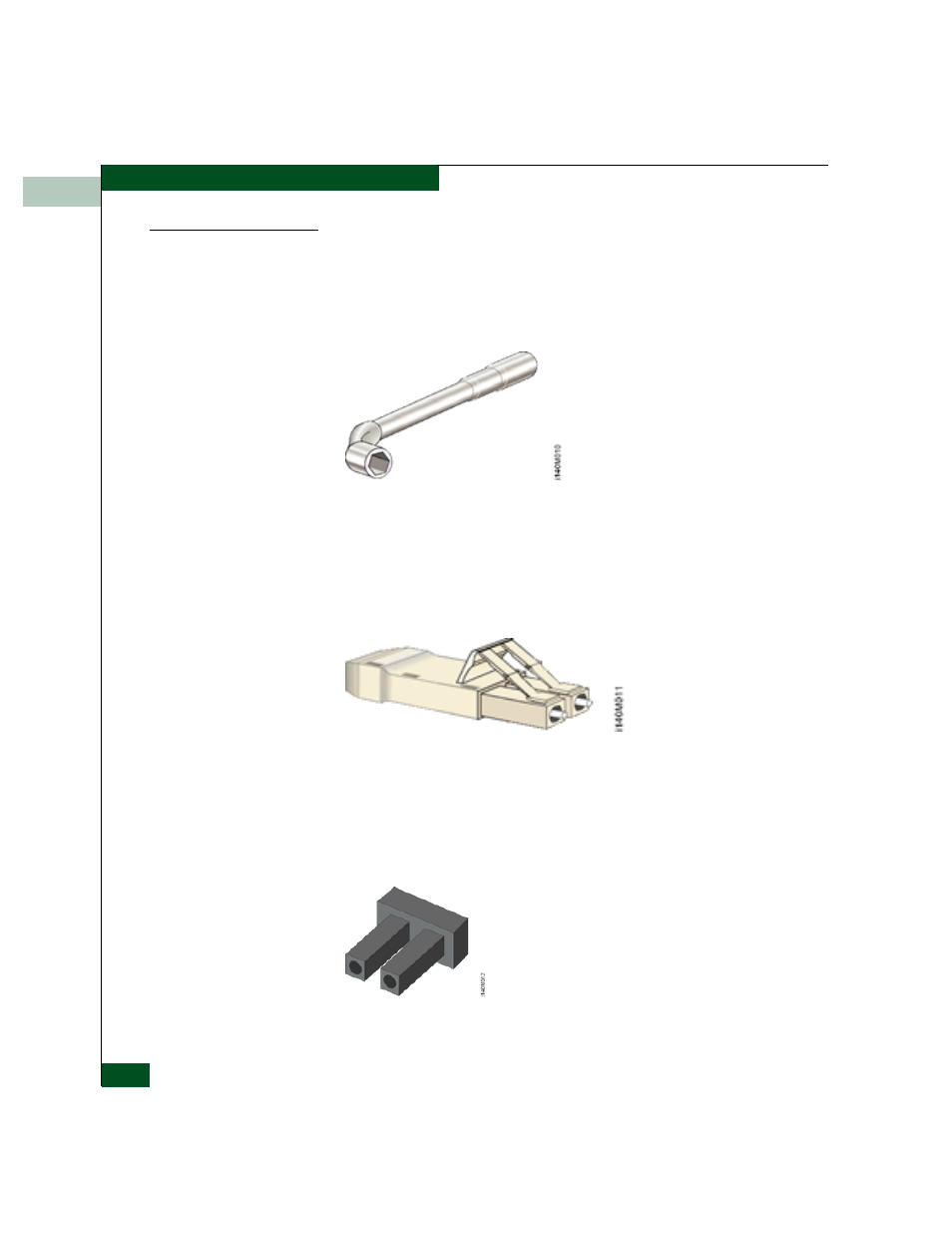

Tools Supplied with
the Product The following tools are supplied with the product:
• Door key - A door key with 5/16-inch socket ( Figure 1-3 ) is
required to open front and rear doors of the Fabricenter
Equipment Cabinet. A 5/16-inch socket wrench may also be used.
Figure 1-3 Door Key
• Loopback plug - A multimode (shortwave laser) or singlemode
(longwave laser) loopback plug ( Figure 1-4 ) is required to
perform port diagnostic tests. Loopback plugs are shipped with
the product, depending on the types of port transceivers installed.
Figure 1-4 Loopback Plug
• Fiber-optic protective plug - For safety and port transceiver
protection, fiber-optic protective plugs ( Figure 1-5 ) are inserted in
all product ports without fiber-optic cables attached. Products are
shipped with protective plugs installed.
Figure 1-5 Fiber-Optic Protective Plug
