6-2 McDATA Sphereon 4300 Fabric Switch Installation and Service Manual
Illustrated Parts Breakdown
Front-Accessible FRUs

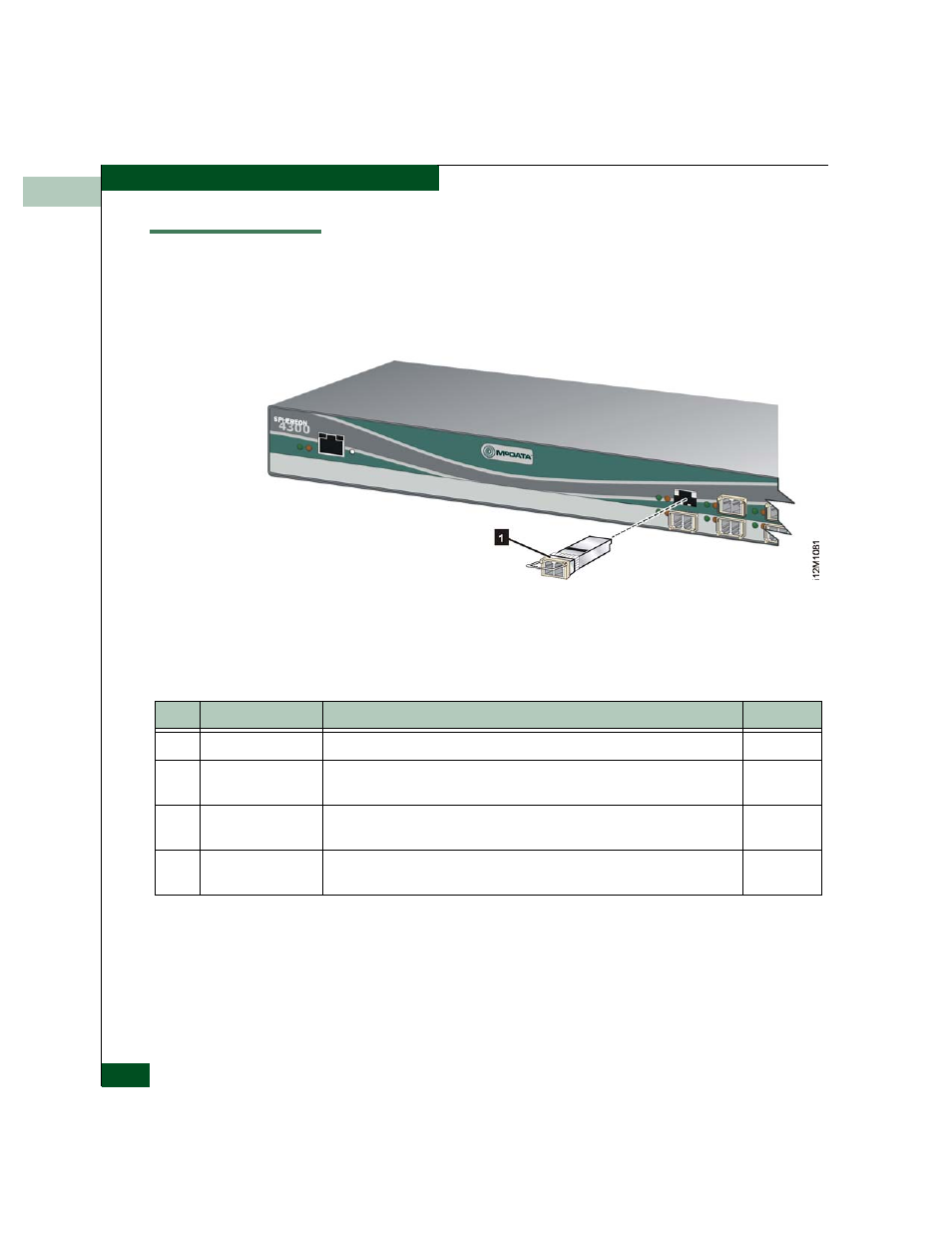

Figure 6-1 illustrates front-accessible FRUs. Table 6-1 is the associated
FRU parts list. The table includes reference numbers to Figure 6-1 ,
FRU part numbers, descriptions, and quantities.
Figure 6-1 Front-Accessible FRUs
Table 6-1 Front-Accessible FRU Parts List
Ref. Part Number Description Qty.
6 - 1 002-002788-002 Switch, Sphereon 4300, Version 2, base assembly Reference
-1 803-000074-386 Transceiver, optical, SFP, 850 nm, 3.3 volt, LC connector, dual-rate
(1.0625/2.1250 Gbps), digital diagnostic 0 to 12
-1 803-000075-313 Transceiver, optical, SFP, 1310 nm, 3.3 volt, LC connector, dual-rate
(1.0625/2.1250 Gbps), digital diagnostic, 10 km 0 to 12
-1 803-000076-313 Transceiver, optical, SFP, 1310 nm, 3.3 volt, LC connector, dual-rate
(1.0625/2.1250 Gbps), digital diagnostic, 20 and 35 km 0 to 12
