AC Electrical Characteristics

Electrical Characteristics

19-35

19.3.32

Normal Mode Timing

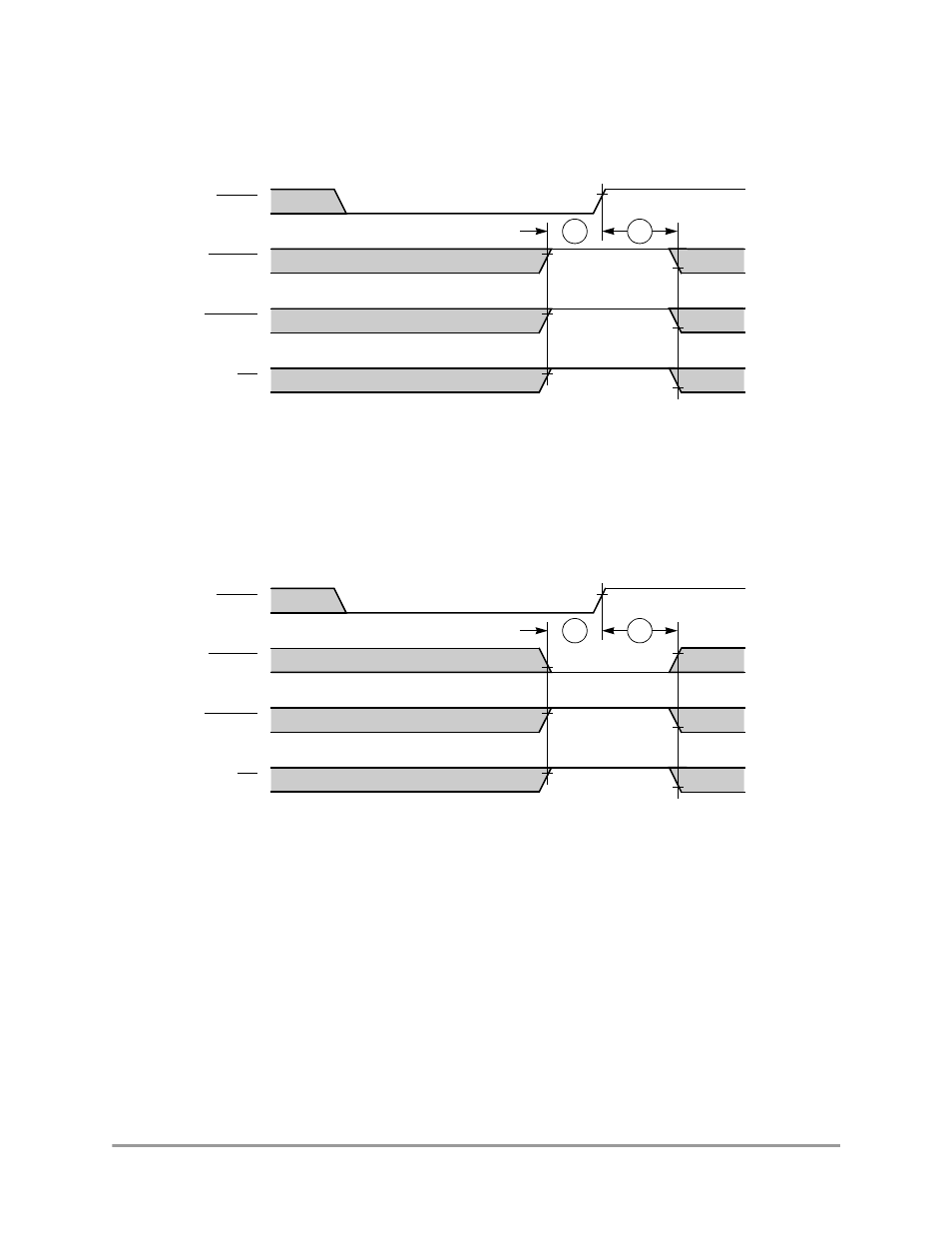

Figure 19-33 shows the timing diagram for normal mode timing of the MC68VZ328. The signal values
and units of measure for Figure 19-33 through Figure 19-35 are found in Table 19-18 on page 19-36.

Figure 19-33. Normal Mode Timing Diagram

19.3.33

Emulation Mode Timing

Figure 19-34 shows the timing diagram for emulation mode timing of the MC68VZ328. The signal values
and units of measure for Figure 19-33 through Figure 19-35 are found in Table 19-18 on page 19-36.

Figure 19-34. Emulation Mode Timing Diagram

RESET

EMUIRQ

EMUBRK

HIZ

2

1

RESET

EMUIRQ

EMUBRK

HIZ

2

1
