PAGE 50 — DCA-220SSK — PARTS AND OPERATION MANUAL (STD) — REV. #3 (06/05/01)
4. Close all engine enclosure doors (Figure 45).
Figure 45. Engine Enclosure Doors
5. Set the battery ON/OFF switch (Figure 46) to the ON
position.
Figure 46. Battery ON/OFF Switch
2. Connect the load to the UVW terminals as shown in
Figure 43. These terminals can be found on the output
terminal panel, see page 35 Figure 15. To gain access
to the output terminals lift the UVW cover. Make sure to
tighten terminal nuts securely to prevent load wires from
slipping out.
Figure 43. UVW Terminal Lugs (Load)

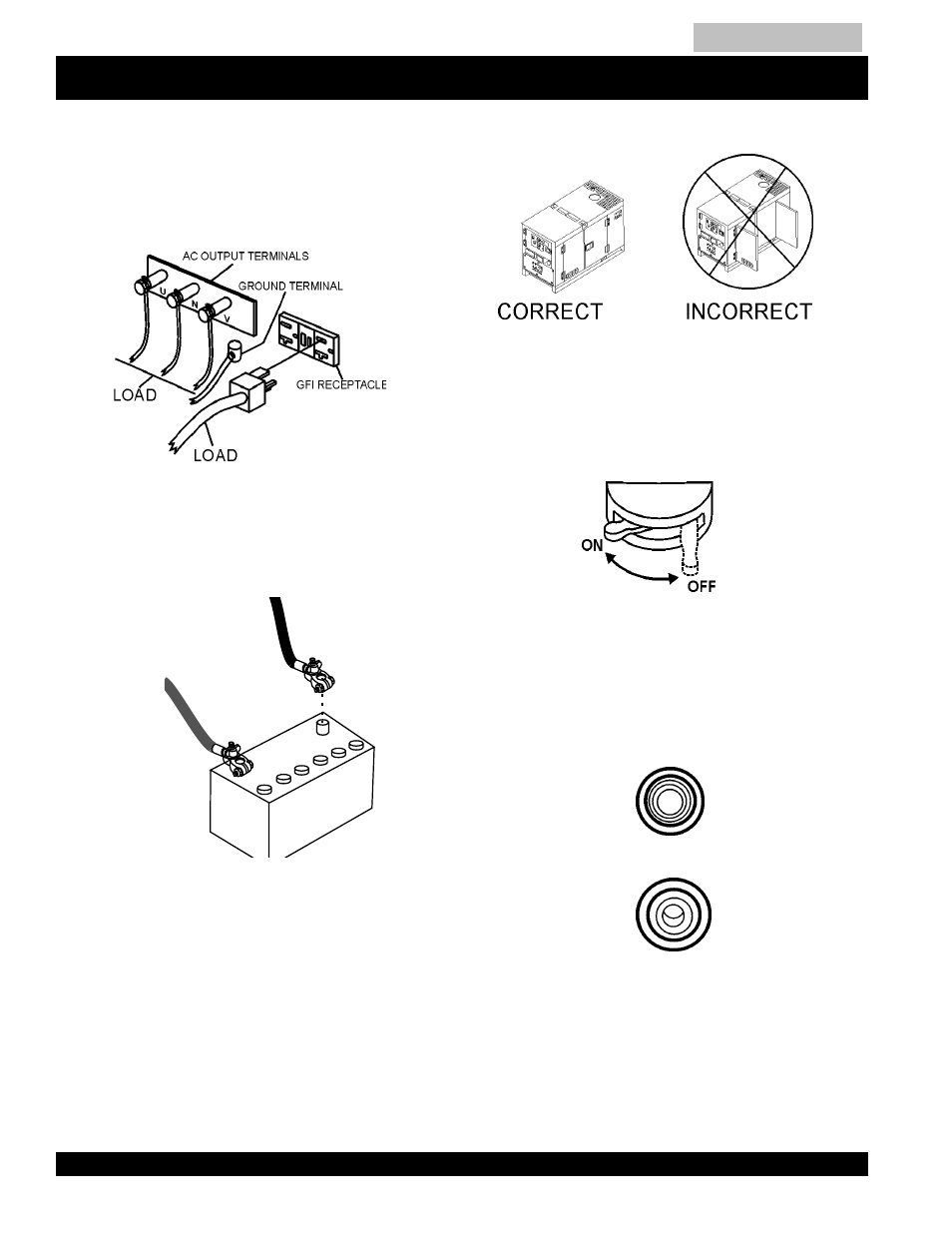

DCA-220SSK — GENERATOR START-UP PROCEDURE (MANUAL)
NEGA
TIVE
POSTIVE
BATTER
Y
3. Connect the negative battery cable (BLACK) to the
negative post on the battery (Figure 44).
Figure 44. Battery Connections
6. When starting the generator in COLD weather conditions,
press and hold the engine preheat button (Figure 47)
until the preheat lamp (Figure 48) is lit (ON).
Figure 48. Engine Pre-Heat Lamp
Figure 47. Engine Pre-Heat Button
