DCA-220SSK — PARTS AND OPERATION MANUAL (STD)— REV. #3 (06/05/01) — PAGE 41
Voltage Selector Switch- Single Phase 240/120V
Position
The following are additional voltages available when the
voltage selector switch is in the single phase 240/120V
position. (See Figure 35 below)
Single Phase, 240 Volt
The following connection, with the voltage selector switch
locked into the single phase 240/120V position (See
Figure 35), will offer SINGLE PHASE power at 240V. After
hooking up the hard wires to the lugs as shown in Figure
37 below, use the Voltage Regulator Knob to fine tune to
240V. (See Figure 36)
Single Phase: 120 Volt
The following connection, with the voltage selector switch
locked into the single phase 240/120V position (See
Figure 35), will offer SINGLE PHASE power at 120V. After
hooking up the hard wires to the lugs as shown in Figure
38 below, use the Voltage Regulator Knob to fine tune to
120V. (See Figure 36).

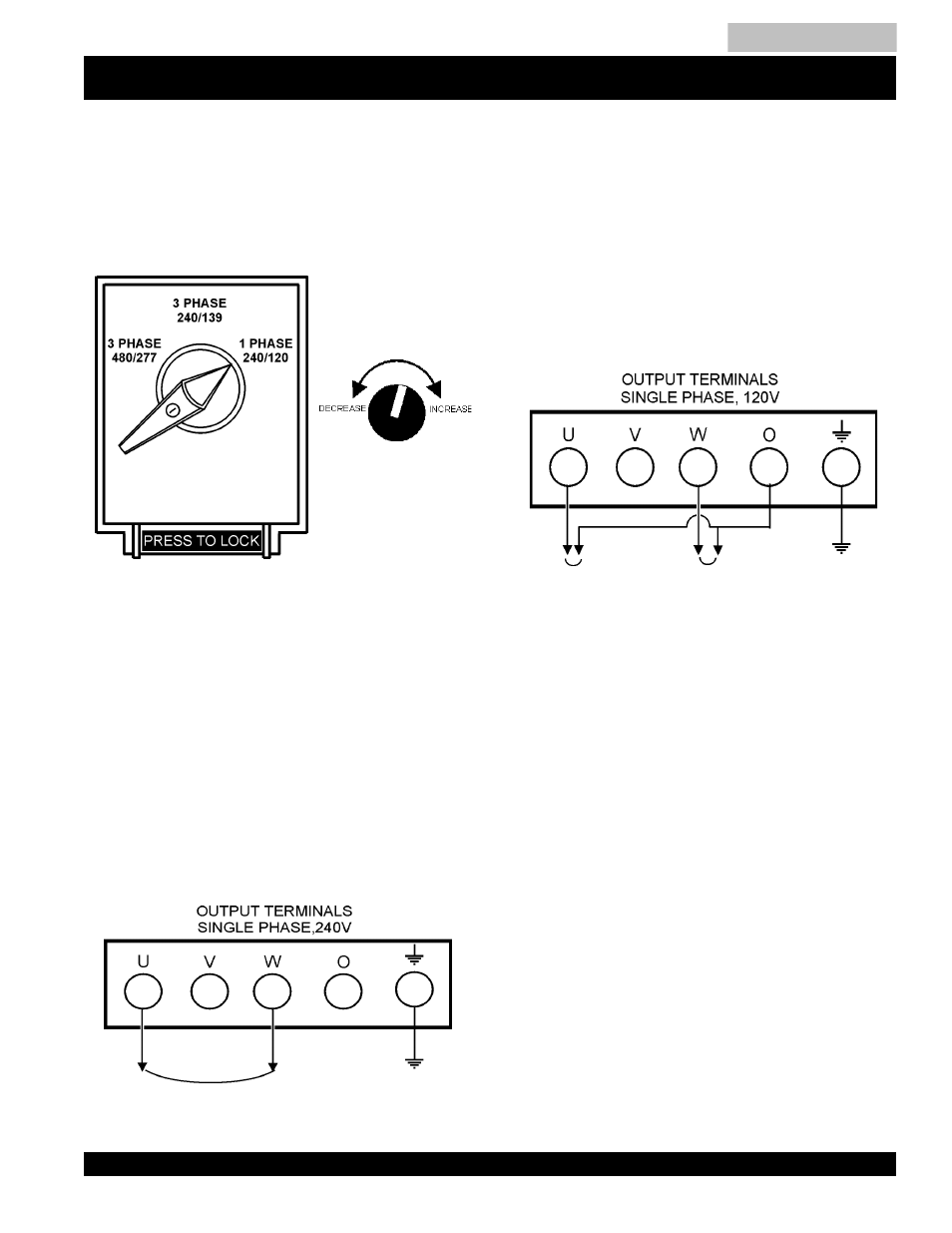

FIGURE 35. Voltage Selector Switch 240/120V Single Phase
Position
FIGURE 37. Hard Wire Hookup for Single Phase 240 volt
FIGURE 38. Hard Wire Hookup for Single Phase, 120 volt
DCA-220SSK — OUTPUT TERMINAL PANEL OVERVIEW
FIGURE 36. Voltage
Regulator Knob
located on the control
panel
