Sliding the optical drive outward, 5 sliding the optical drive outward – FUJITSU PRIMERGY RX900 S1 User Manual
Page 92
92
Maintenance Manual
RX900
S1
Hard disk and solid state drives
6.4.5
Sliding the optical drive outward

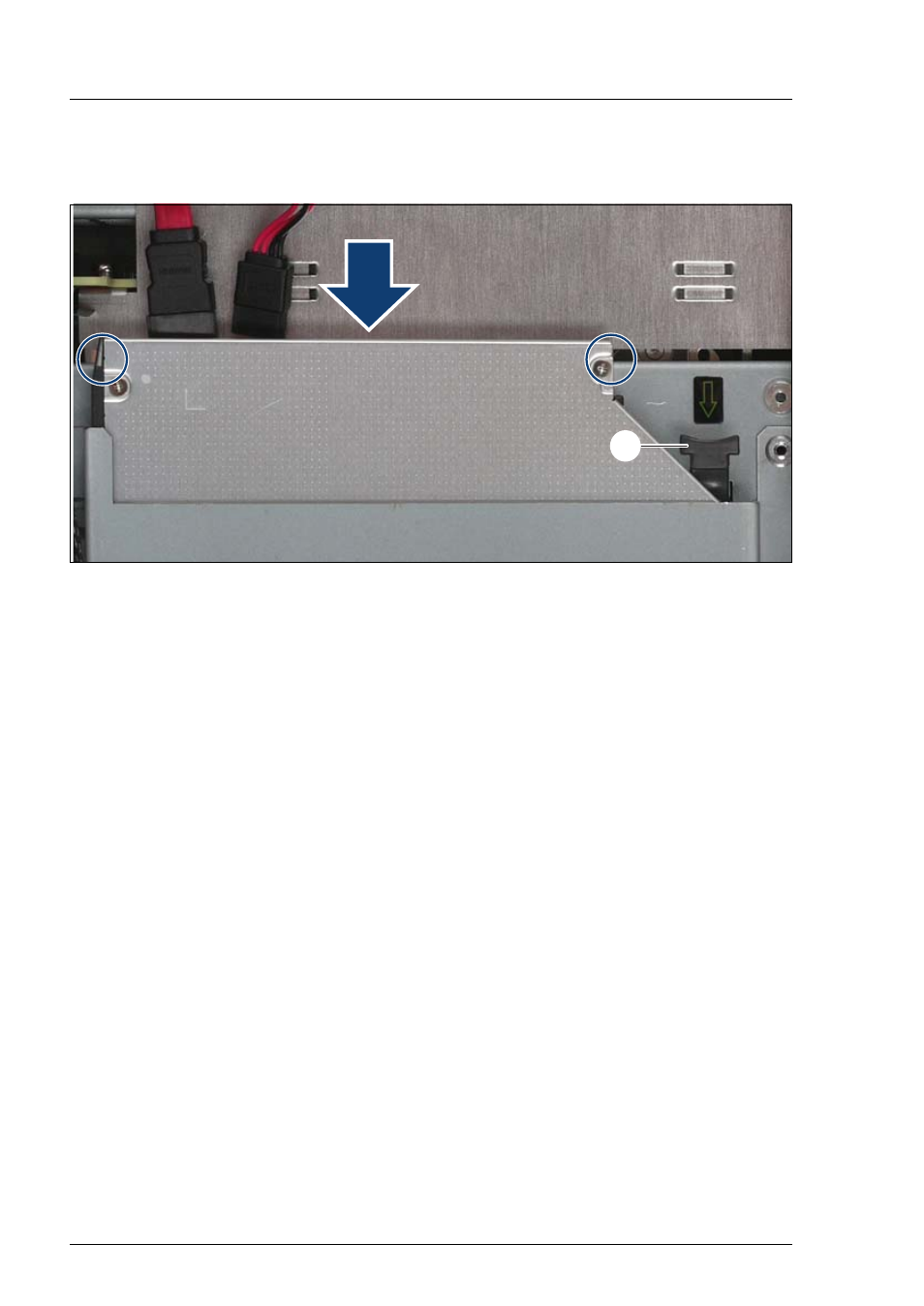

Figure 41: Sliding the optical drive outward
Ê
Use the handle (A) to unlock the optical drive.
Ê
Slide the optical drive outward a few centimeters so that you have free
access to the SAS backplane (see circles).
C
A
