Cables
Ê Carefully lower the baseboard in the chassis by using the handle (1).
Ê Slide the baseboard in the direction of the arrow (2) until it clicks into place.
Ê Fasten the captive screws (3).
V
CAUTION!
Ensure not to damage the EMI springs to comply with applicable EMC
regulations and satisfy cooling requirements and fire protection
measures.
15.5.12 Installing the air guide

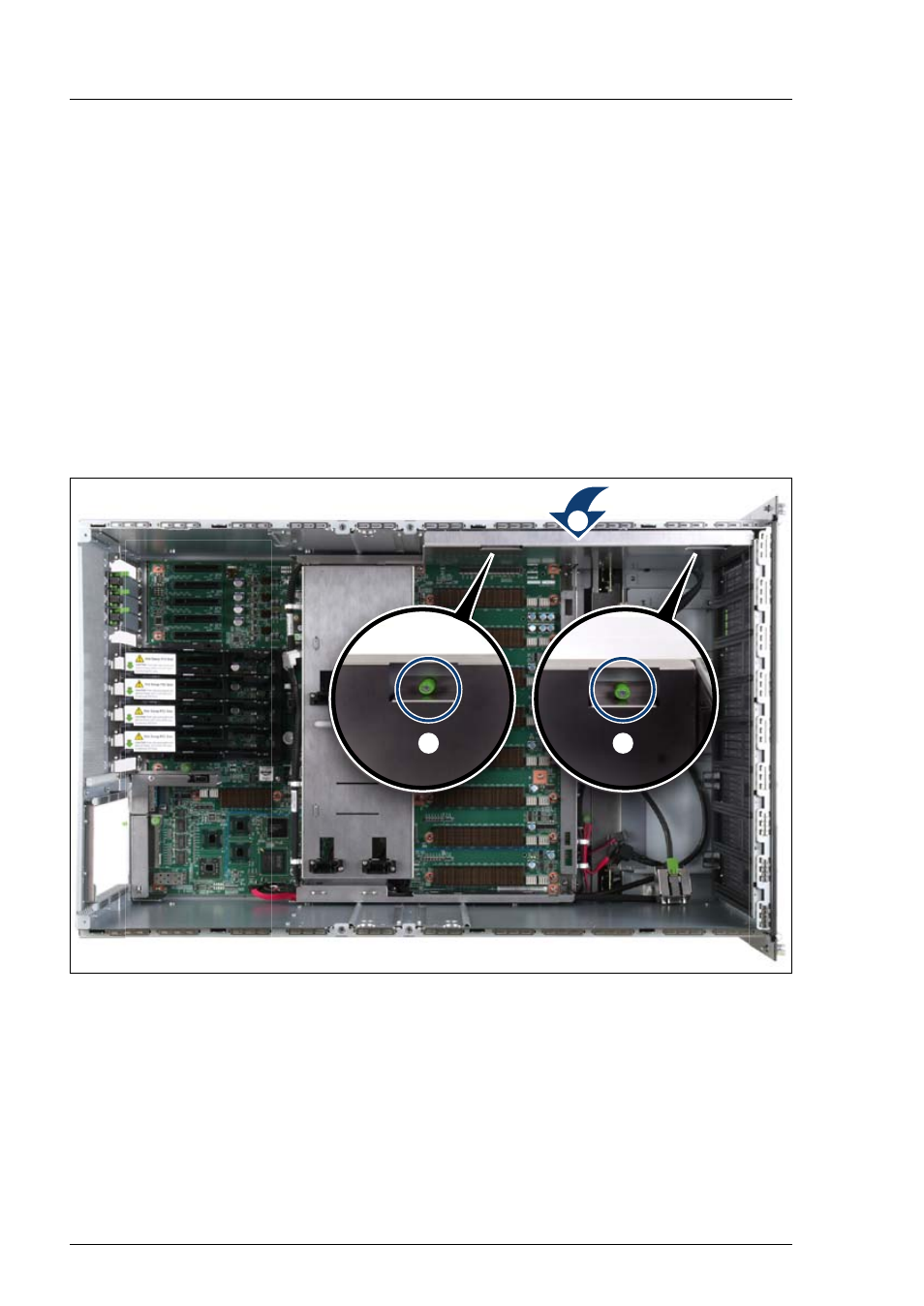

Figure 233: Installing the air guide
Ê Place the air guide in the chassis (1).
Ê Fasten the captive screws (2).
/
