RX900 S1 Maintenance Manual 341
Cables
15.5.9 Opening the cable guides
For the SAS cable, the SATA cable, the front video connector cable, or the
front USB cable

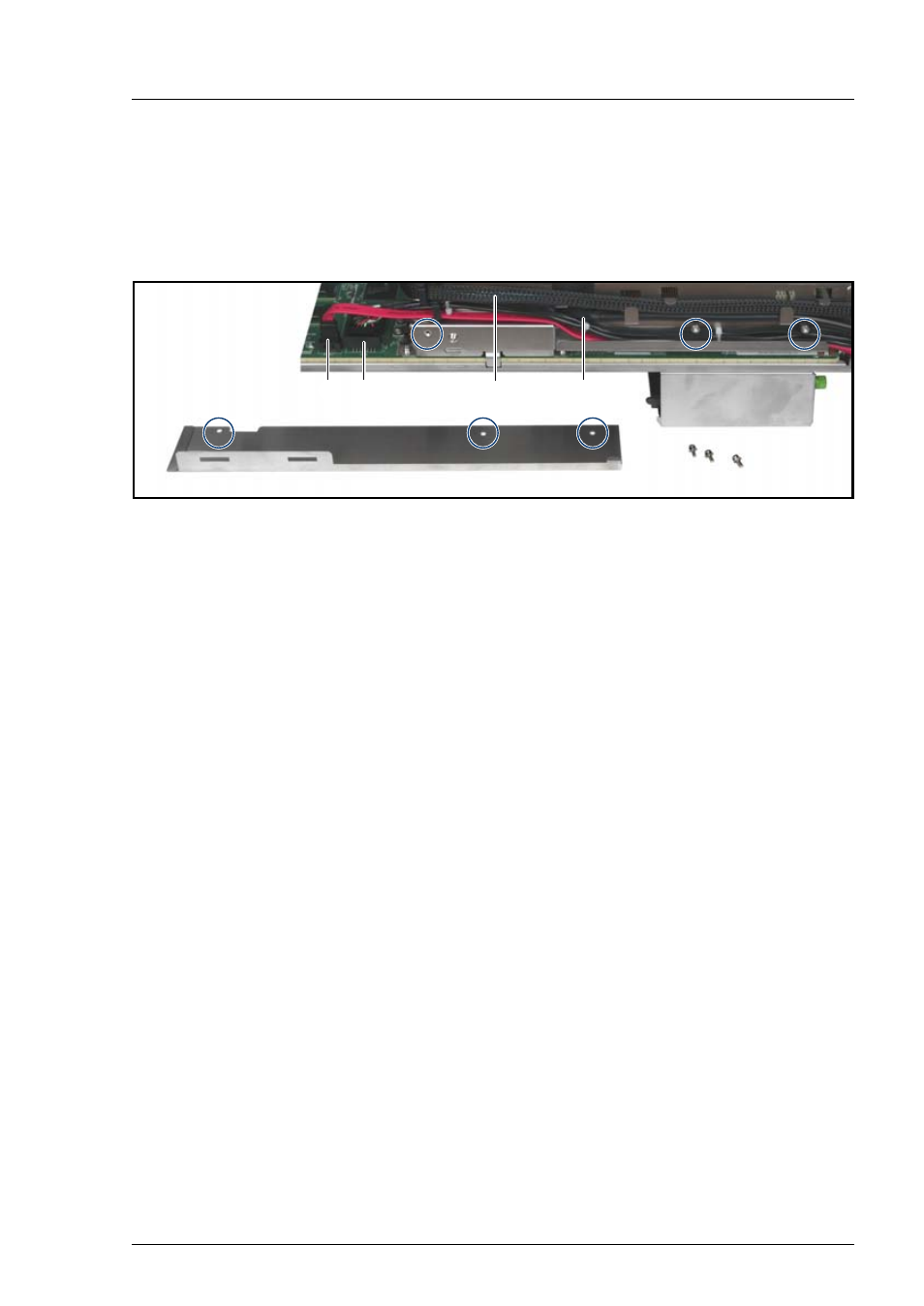

Figure 228: Opening the front connectors cable guide
Ê Remove the screws (see circles).
Ê Open the cable guide.
Ê Select the cable to be removed:
– Front USB cable (1)
– SAS backplane cable (2)
– Front video connector cable (3)
– Signalling cable to the optical drive (4)
Ê Open the corresponding cable clamps and remove the defective cable(s).
