Inserting a retaining plate in the removal tool, 7 inserting a retaining plate in the removal tool – FUJITSU PRIMERGY RX900 S1 User Manual
Page 137
RX900 S1
Maintenance Manual
137
Expansion cards and BBU
8.5.7
Inserting a retaining plate in the removal tool

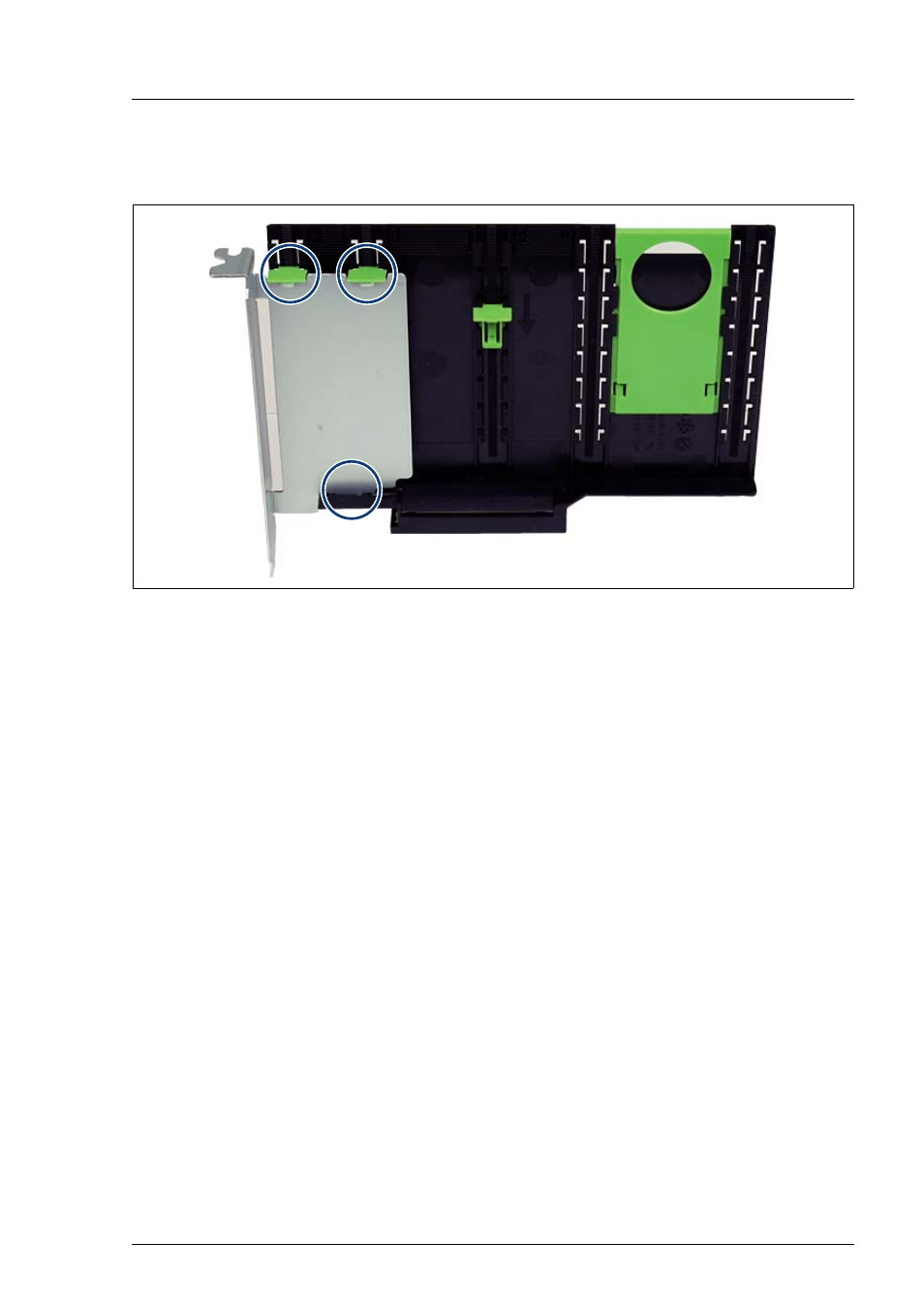

Figure 73: Inserting the retaining plate in the removal tool
Ê
Insert the retaining plate in the slot of the removal tool.
Ê
Insert the green engaging hooks in the rods and push them down until they
engage in the upper edge of the retaining plate.
