Maintenance Manual
RX900
S1
Expansion cards and BBU
8.6.8
Inserting the expansion card in the slot

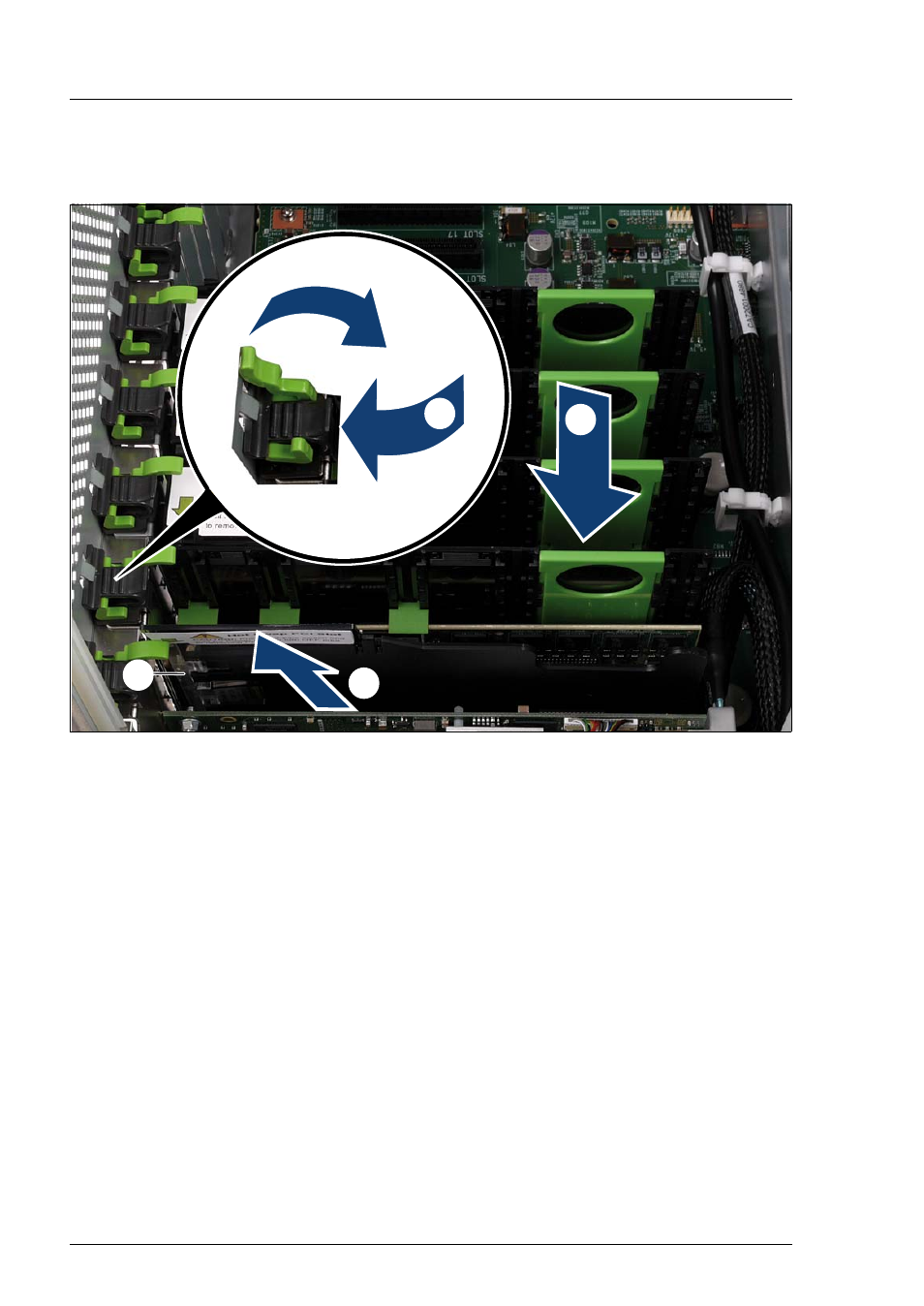

Figure 81: Inserting the expansion card in the slot
Ê
Carefully insert the removal tool together with the expansion card in the slot
(1).
Ê
Insert the slot lock (2) and relock the slot (3).
Ê
Close the hot-plug slot (4).
Ê
If applicable, connect the cables on the expansion card.
/
