Removing the heat sink, 3 removing the heat sink – FUJITSU PRIMERGY RX900 S1 User Manual
Page 216
216
Maintenance Manual
RX900
S1
Processors
4.
"Sliding the server out of the rack" on page 42
5.
"Opening the server" on page 44
6.
"Removing the CPUMEMR" on page 190
10.3.3 Removing the heat sink

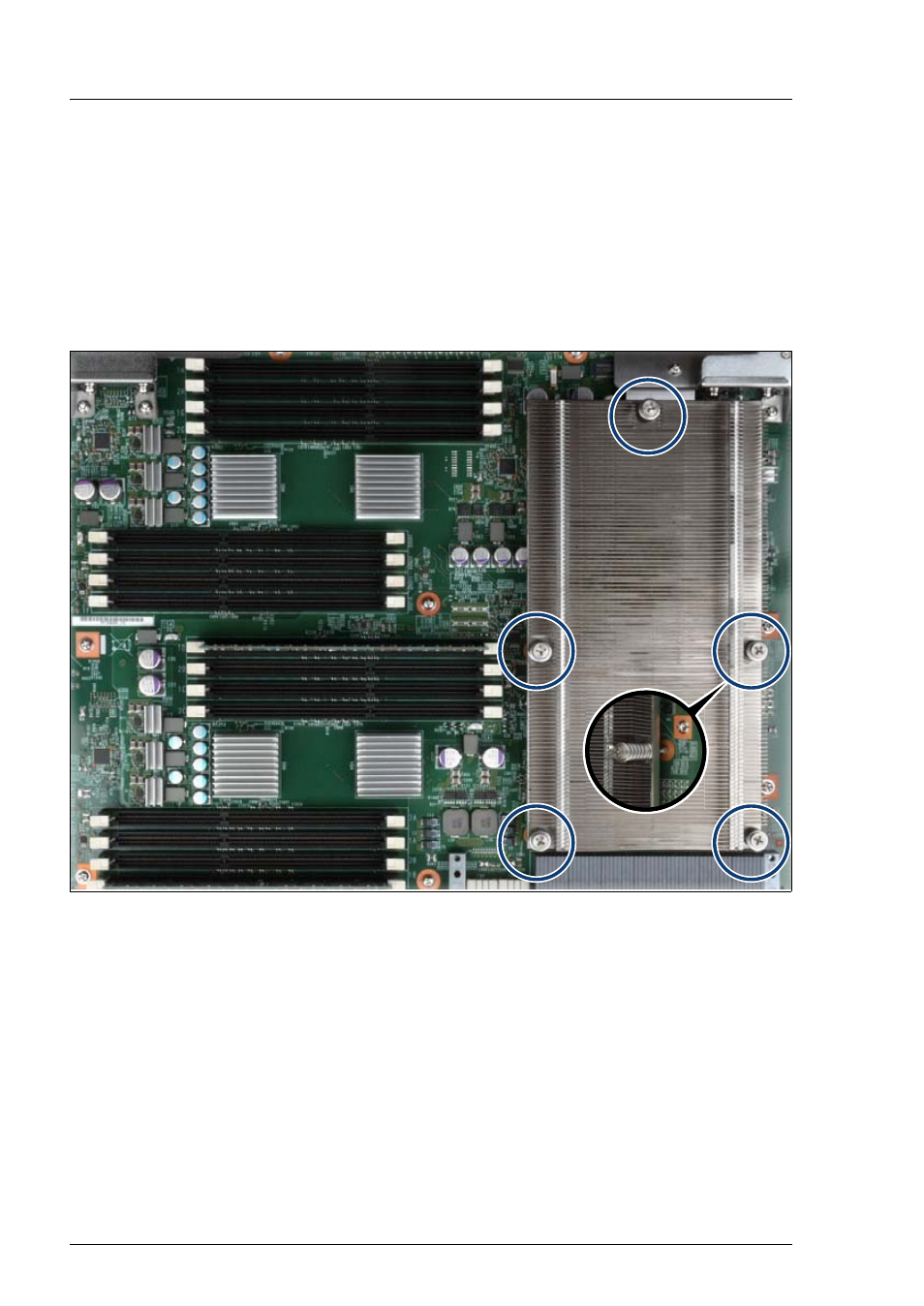

Figure 128: Removing the heat sink
Ê
Loosen the captive screws of the heat sink alternately until they are fully
released.
Ê
Loosen the heat sink by turning it back and forth and then lift it out.
