15.4.9 Removing the power distribution board

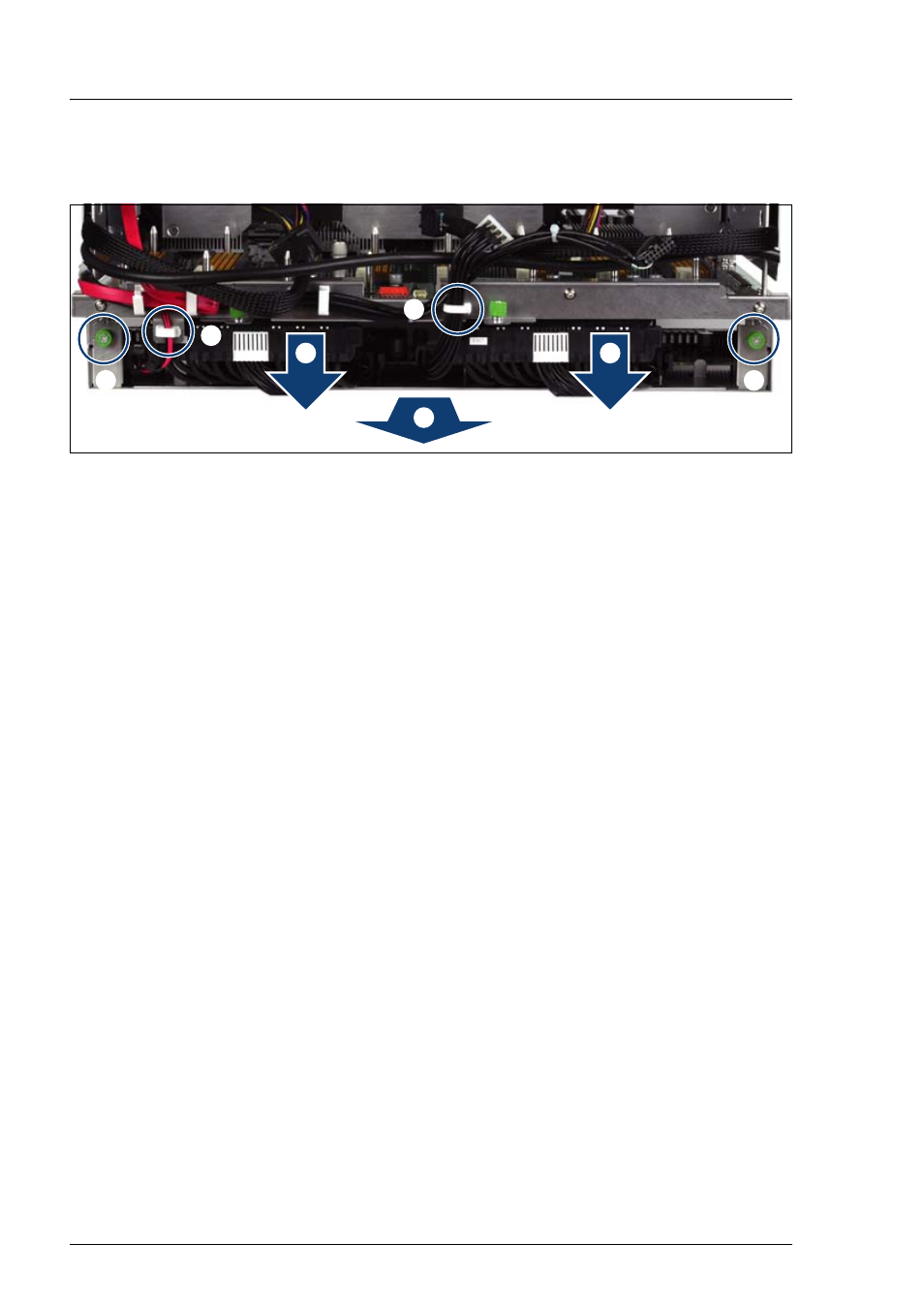

Figure 212: Removing the power distribution board
Ê
Open the cable clamps (1).
Ê
Disconnect the power distribution cables from the baseboard (2).
Ê
Loosen the captive screws (3).
Ê
Remove the power distribution board from the baseboard.
/
/
0
0
1
1
2
