RX900 S1 Maintenance Manual 91
Hard disk and solid state drives
6.4.4 Disconnecting the cables

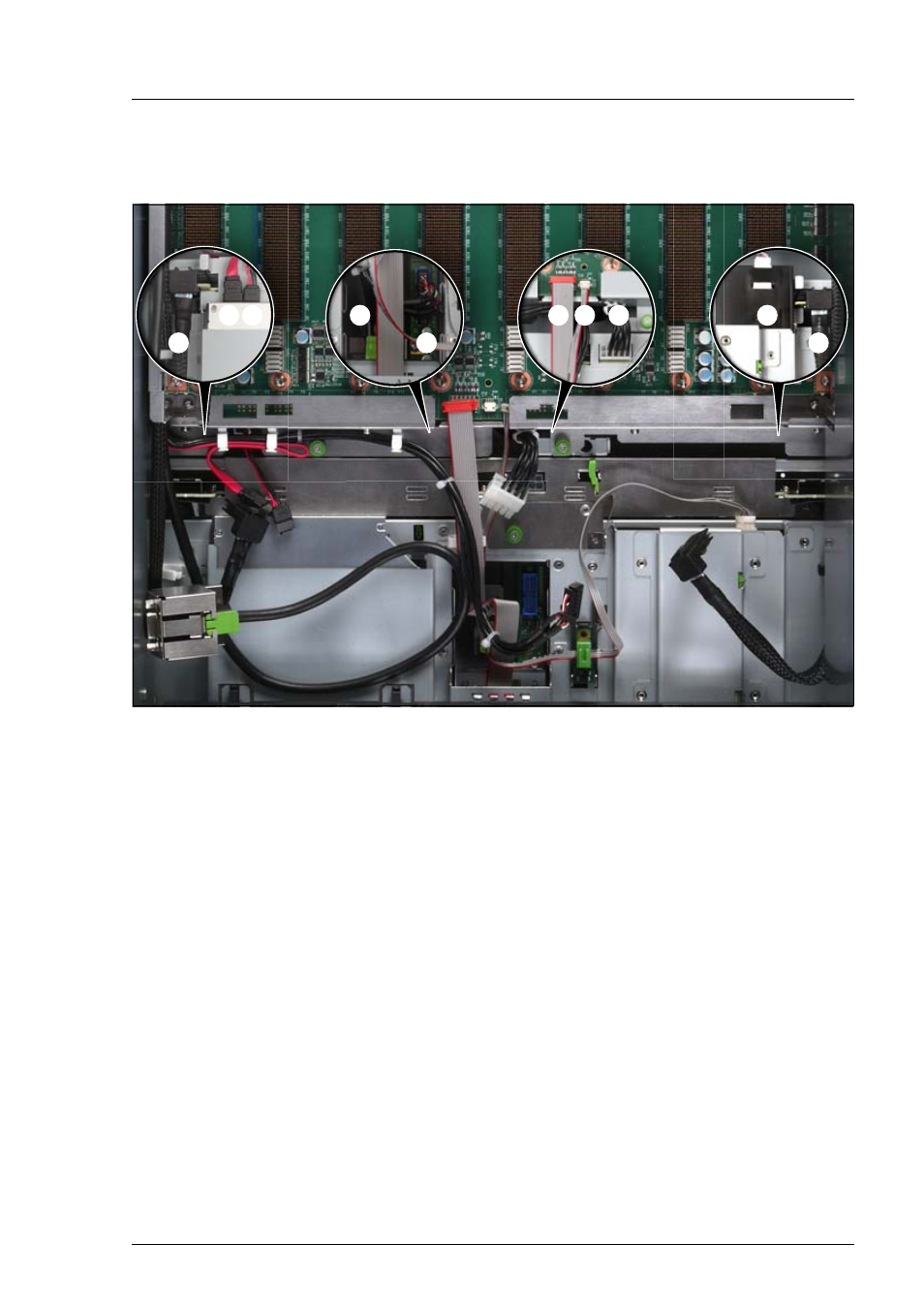

Figure 40: Disconnecting the cables from the baseboard
Ê Disconnect the following cables from the baseboard:
– SAS backplane cable (1)
– Signalling cable (2) and power cable (3) to the optical drive
– Front video connector cable (4)
– Front USB cable (5)
– Control panel cable (6)
– Chassis ID cable (7)
– Power cable for the SAS backplane (8)
For the cable plan see "Cabling" on page 367 .
/ /
01 2
3
4 5 6 7
