FUJITSU PRIMERGY RX900 S1 User Manual
Page 255
RX900 S1
Maintenance Manual
255
Management and diagnostics modules

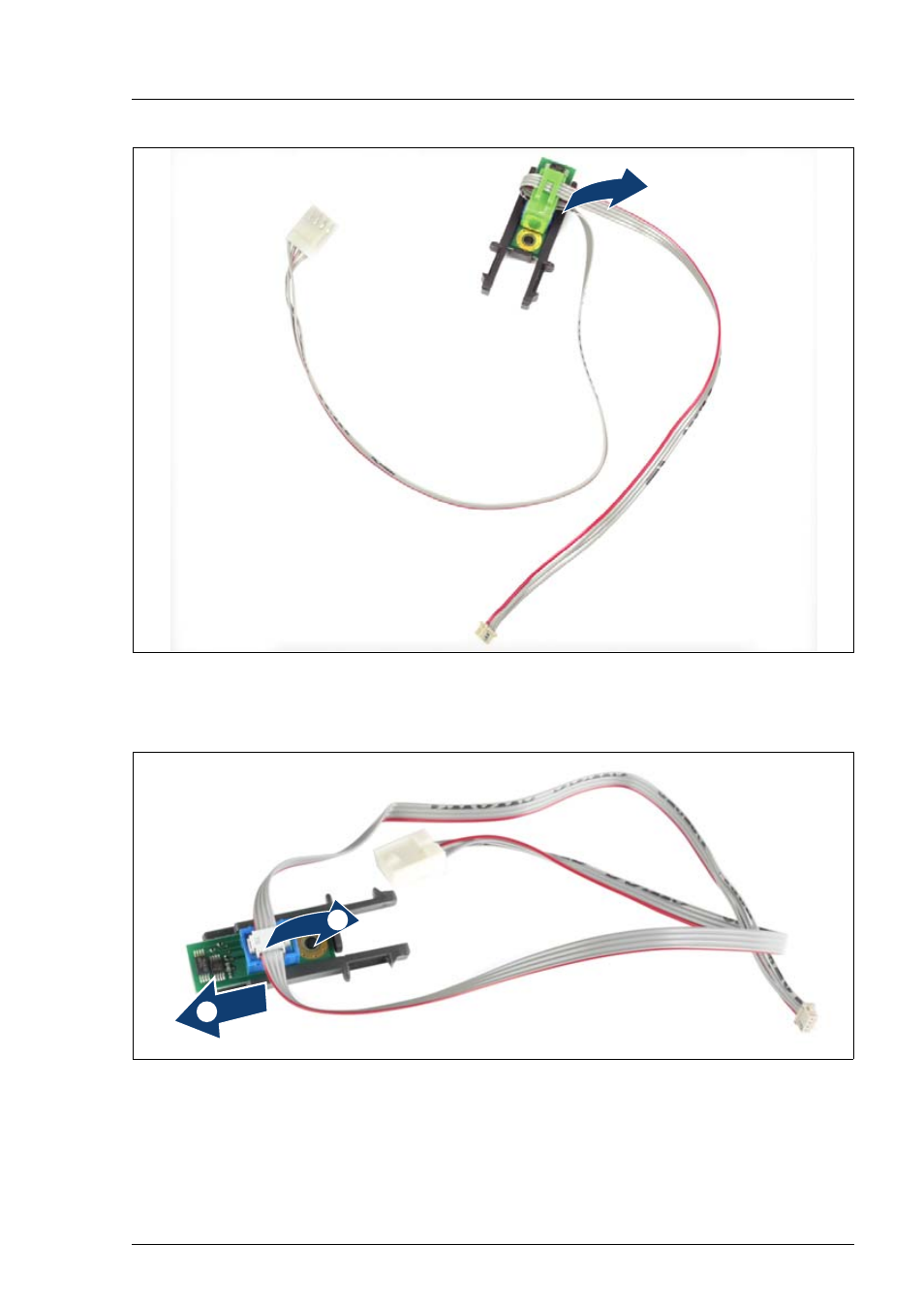

Figure 157: Removing the connector clamp
Ê
Remove the connector clamp.
Figure 158: Disconnecting the chassis ID board cable
Ê
Disconnect the chassis ID board cable from the chassis ID board (1).
Ê
Slide the chassis ID board out of the holder (2).
/
