RX900 S1

Maintenance Manual

343

Cables

For the SAS cable

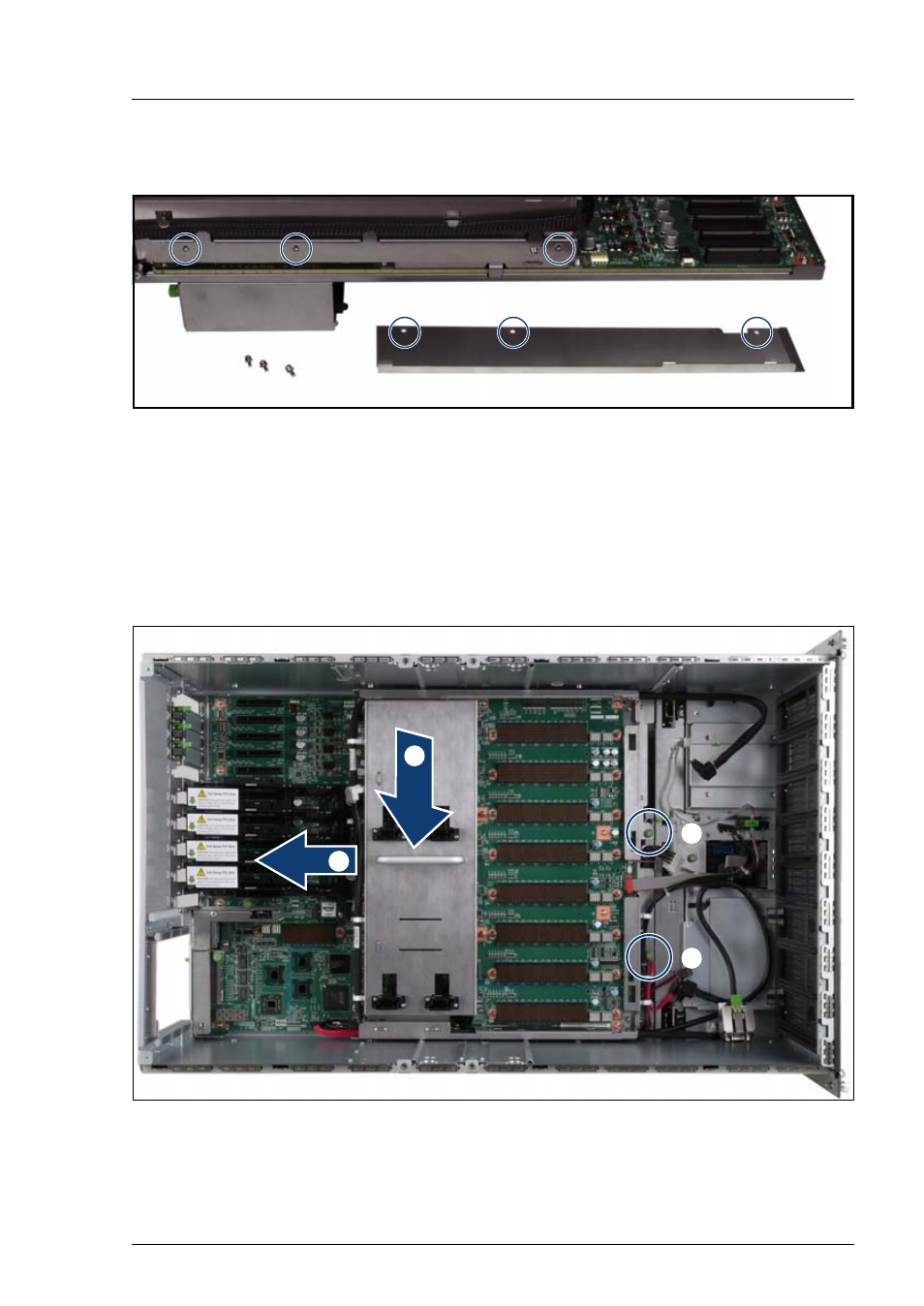

Figure 231: Closing the SAS cable guide

Ê

Insert the new cable and close the cable clamps.

Ê

Close the cable guide and fasten the screws (see circles).

15.5.11 Inserting the baseboard

Figure 232: Inserting the baseboard

0

/

1

1
