Power supply

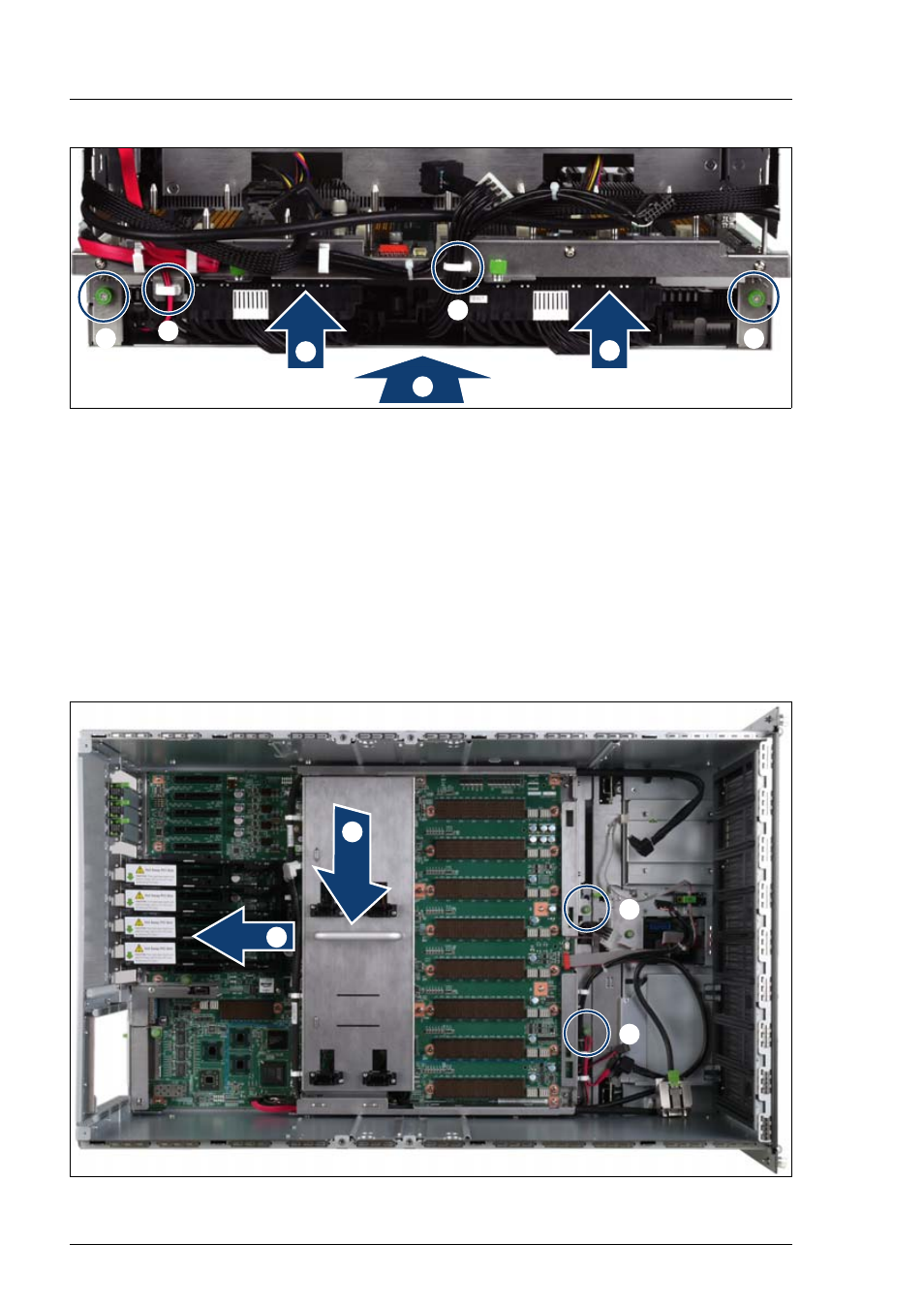

Figure 27: Installing the power distribution board
Ê Insert the power distribution board in the baseboard (1).
Ê Connect the power cables to the baseboard (2).
Ê Fasten the captive screws (3).
Ê Close the cable clamps (4).
5.4.11 Inserting the baseboard
Figure 28: Inserting the baseboard
/
