Main memory
5. "Opening the server" on page 44
6. "Locate the faulty component by PRIMERGY diagnostics indicators" on
page 39
7. "Identifying a fault on the CPUMEMR" on page 189
8. "Removing the CPUMEMR" on page 190
9.4.3 Removing the DIMM memory module

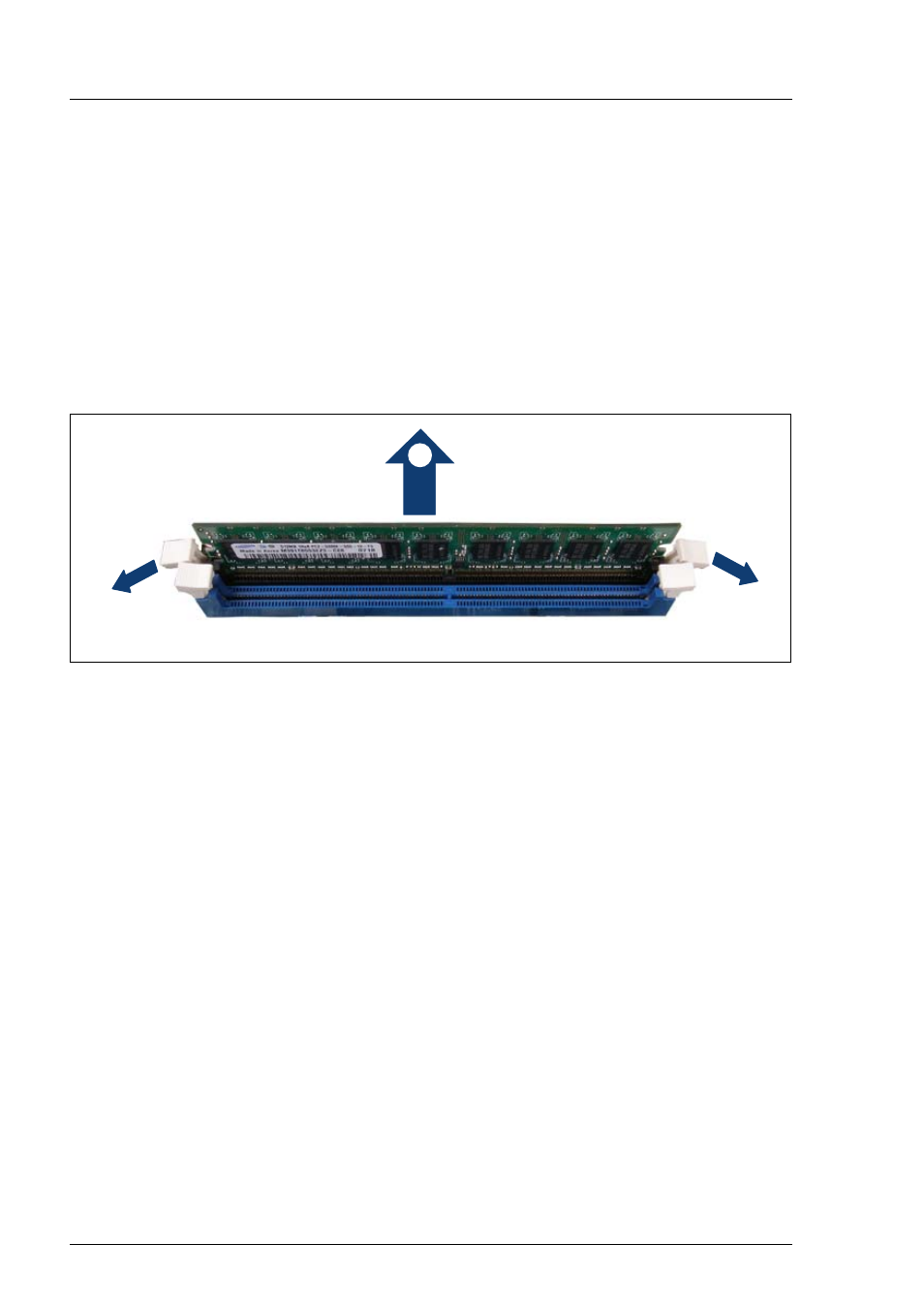

Figure 115: Removing the DIMM memory module
Ê Press the securing clips on either side of the DIMM memory module slot
outward (1).
Ê Pull the DIMM memory module out of the slot (2).
9.4.4 Reinstalling a DIMM memory module
Ê Cross-check the DIMM memory module slot position with the configuration
rules summarized in
"Selecting the DIMM memory module slot" on
page 192 . For detailed information see "Baseboard D3081, CPUMEMR
D3131, PCIR D3082 for PRIMERGY RX900 S1 Technical Manual".
/
/
