RX900 S1 Maintenance Manual 83
Hard disk and solid state drives
6.1.5 Inserting the HDD/SSD module

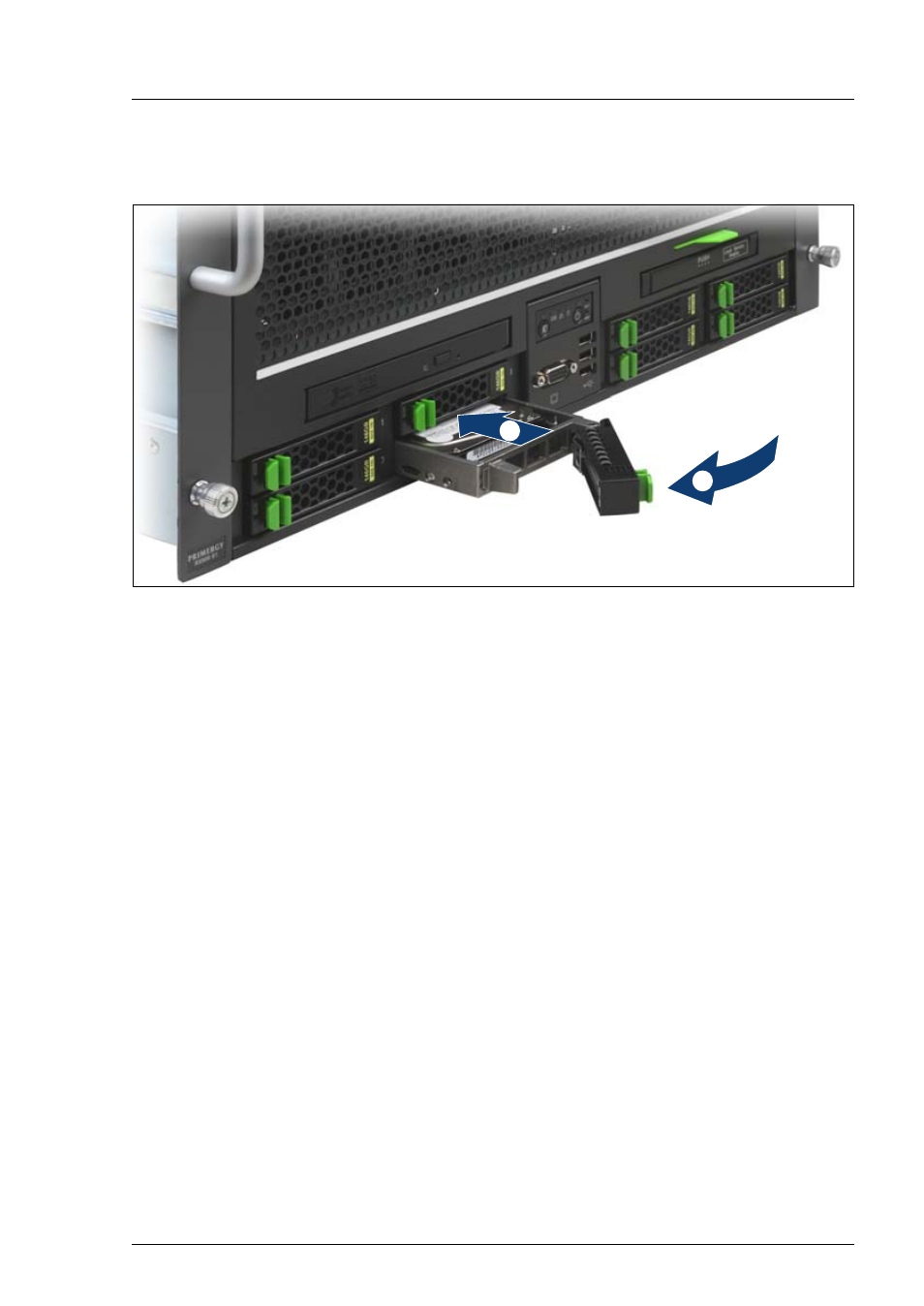

Figure 36: Installing the 2.5-inch HDD/SSD module
Ê Carefully push the HDD/SSD module into the empty bay (1) until it stops.
Ê Push the handle completely (2) in the direction of the arrow until the locking
mechanism engages.
6.1.6 Completing the task
Ê Perform the following procedures to complete the task:
1. "Closing the rack door" on page 51
/
