Modular Block System: Hydraulic Presses 6-95
Parallel muting mode
(muting when leaving the danger area)

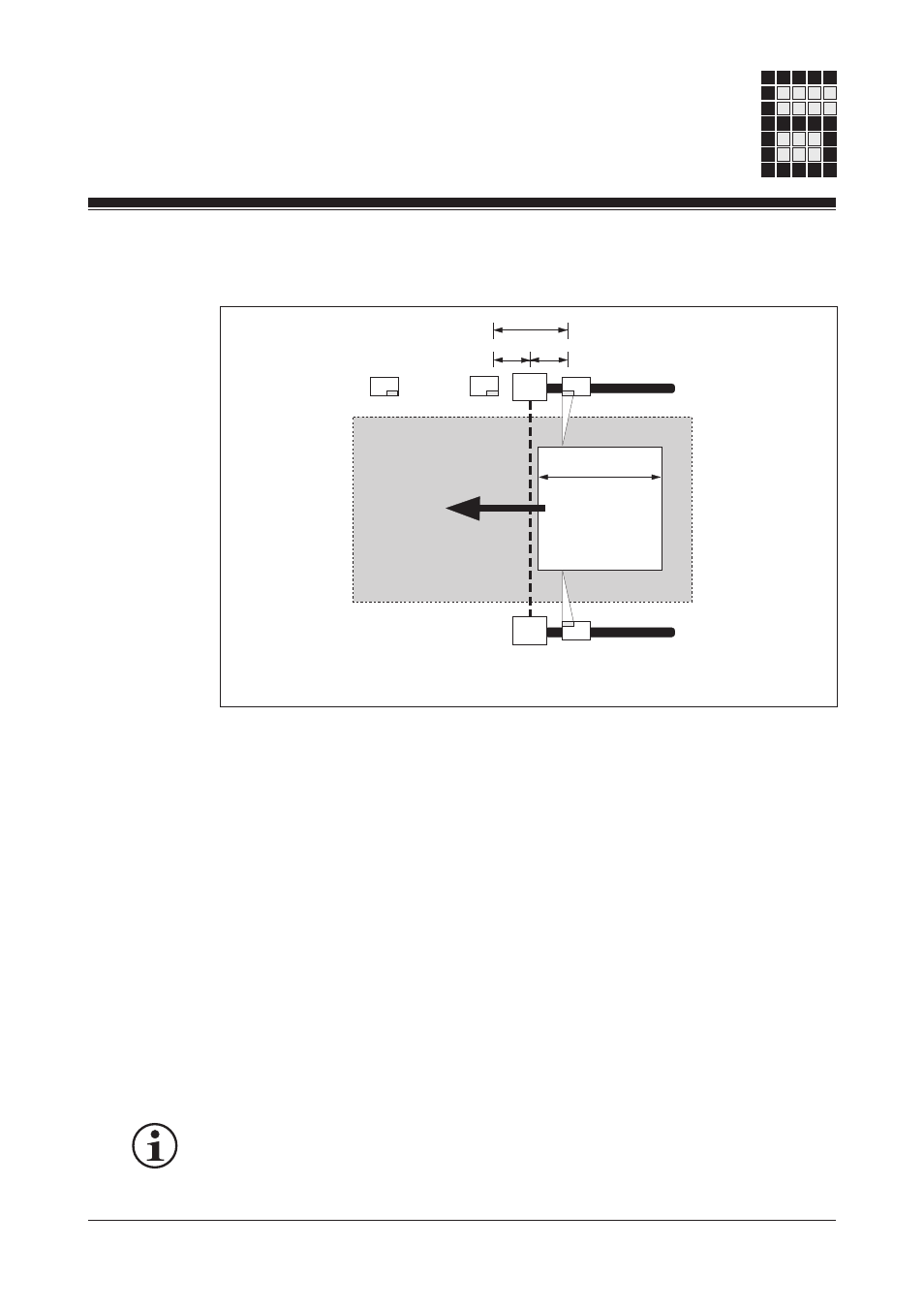

Fig. 6-2: Muting when leaving the danger area (parallel muting mode)
Muting signal arrangement
Position MP1/MP2:
- Muting signals MP1 and MP2 must be positioned at the same
height to the left and right of the vehicle and:
- the length of the vehicle W must > A
- distance C must be as short as possible.
Position MS1:
Muting signal MS1 is optional and is used to detect vehicles
entering the danger area.
If muting signal MS1 is not being used, the input parameter
MS1 should be assigned RLO-0 (M 110.00).
Position MP2:
Requires muting signal MP2.
INFORMATION
Important additional information on the use of sensors and contacts can
be found under “Safety guidelines” at the end of this SB description.
MS1 MS2 MP1 ESPE/
AOPD
MP2
ESPE/
AOPD
C C
A
W
Danger Area
Transport
Vehicle
