2.
Pull gently until the hot-pluggable disk drive slides out of the chassis.

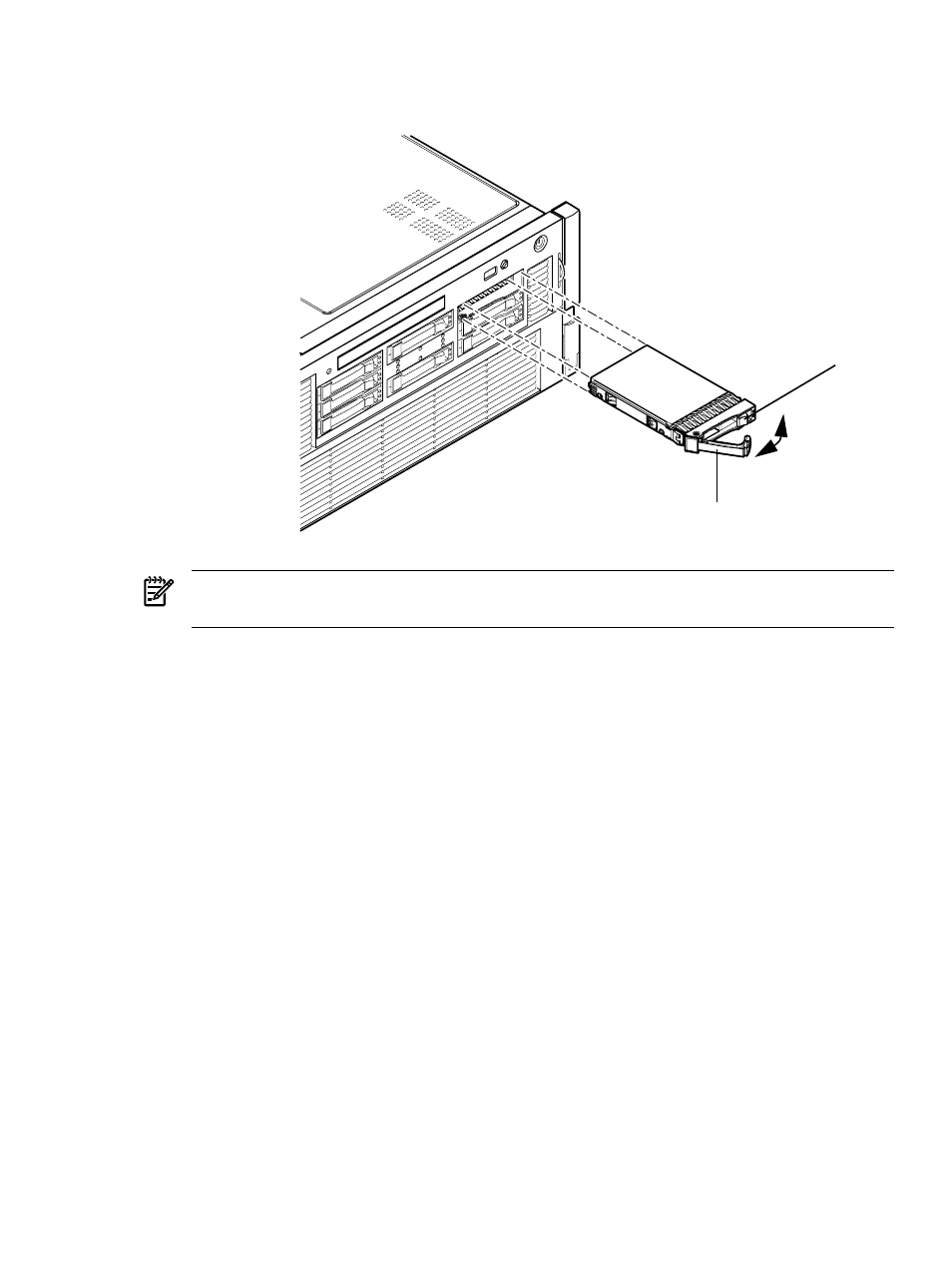

Figure 6-7 Removing and Replacing a Hot-Pluggable Disk Drive
Front chassis View
Extraction
handle
Release Tab
Extraction
Handle
Rotation
NOTE:
For cooling purposes, always leave disk drive fillers in slots that do not contain a
disk drive.
Disk Drive Load Order
Disk drive are factory loaded in the following order:
1st drive load in Bay 8
2nd drive load in Bay 7
3rd drive load in bay 6
4th drive load in bay 5
5th drive load in Bay 4
6th drive load in Bay 3
7th drive load in bay 2
Removing and Replacing a Hot-Pluggable Disk Drive
189
