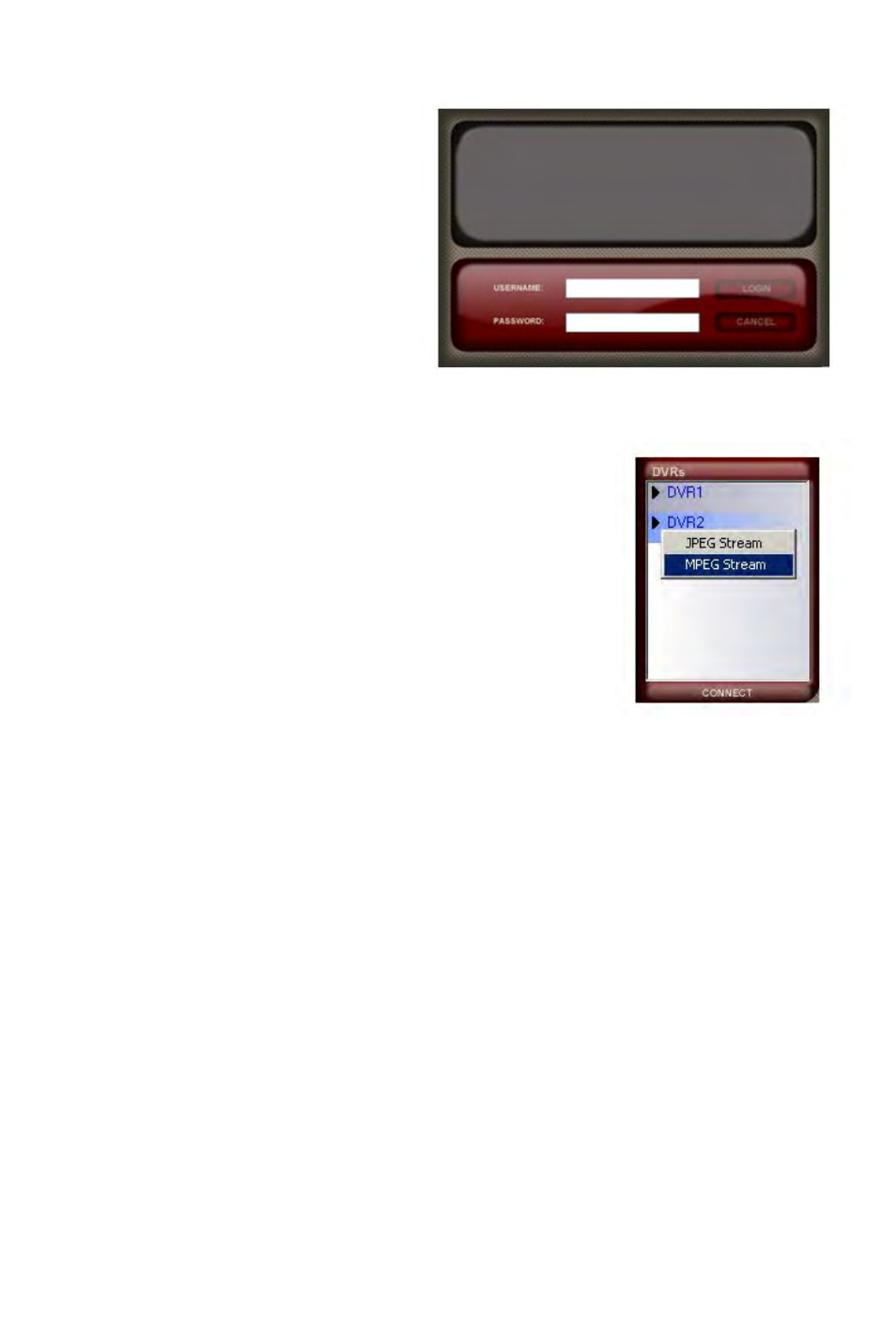

Client Login
1. To login, click on the DVR Client on your
desktop to open the Remote Client.
2. Enter username and password.
3. Click on the Login button or press
ENTER to login. Click on the X button to
exit.
NOTE: The factory default for username is “Admin”
and for password is “password” respectively. You
can change the default username and password
once you are logged in.
DVR Connection
To connect to a DVR
1. Select a DVR from the list.
2. Click the Connect button or double-click on the DVR Name
to connect to the selected DVR.
3. A menu will appear with the option for JPEG Stream
connection or MPEG Stream connection. Select the desired
connection and the application will then connect to the DVR Server.
JPEG Stream Connection
This type of connection displays the video as motion-JPEG images. The bandwidth it uses to display one
camera or 16 cameras is the same but it comes with certain limitations. The limitations to this type of
connection are:
• Display is at most 5 frames per second
• Live streaming audio is not available
• Remote recording is not available
• Zoom while in full screen mode is not available
• Image enhancements functionality is not available
*note : JPEG streaming is only available on some models
MPEG Stream Connection
This type of connection streams MPEG4 video to the Remote Client. The frames per second display fol-
lows what is set on the server just as long as the bandwidth can accommodate it. Once connected, the
number of frames received, frames displayed and the size of data received per second are displayed for
the user.
