Emulex DCP_link - Manual (Page 92)

Frame Relay Configuration 6-15
4) Select the desired protocol (e.g., IPX), then press .
5) From the Network Interface menu, select a configured WAN interface
port, then press to bind the protocol to that port.
A new window displays the parameters for binding the protocol you have
chosen to the selected WAN interface.

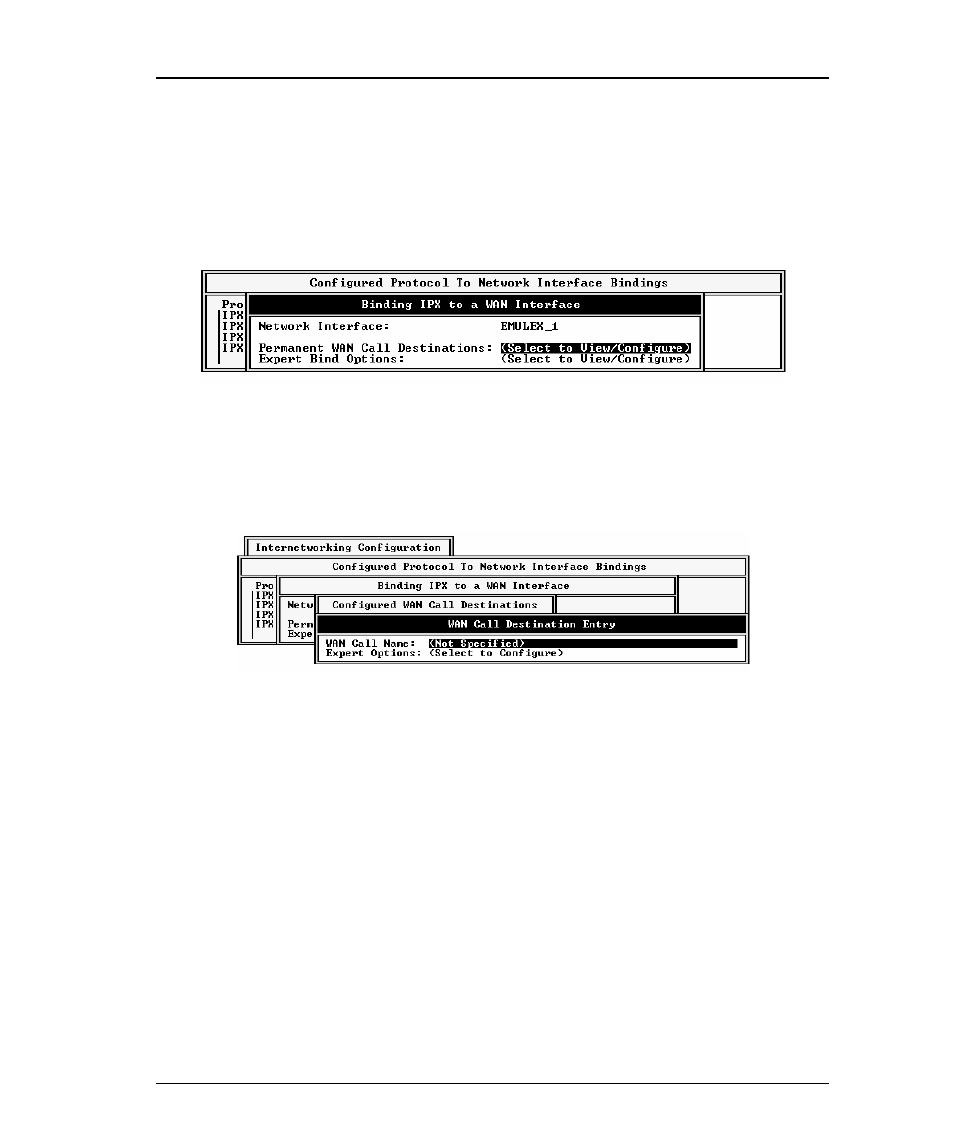

Figure 6-12 Binding IPX
6) Press to select a Permanent WAN Call Destination.
7) Press to add a permanent call to the interface.
Figure 6-13 Wan Call Destination Entry
9) Press to select a configured WAN call destination. The
Configured WAN Call Destinations screen will be displayed reflecting
the selection.
