7-12 Chapter 7

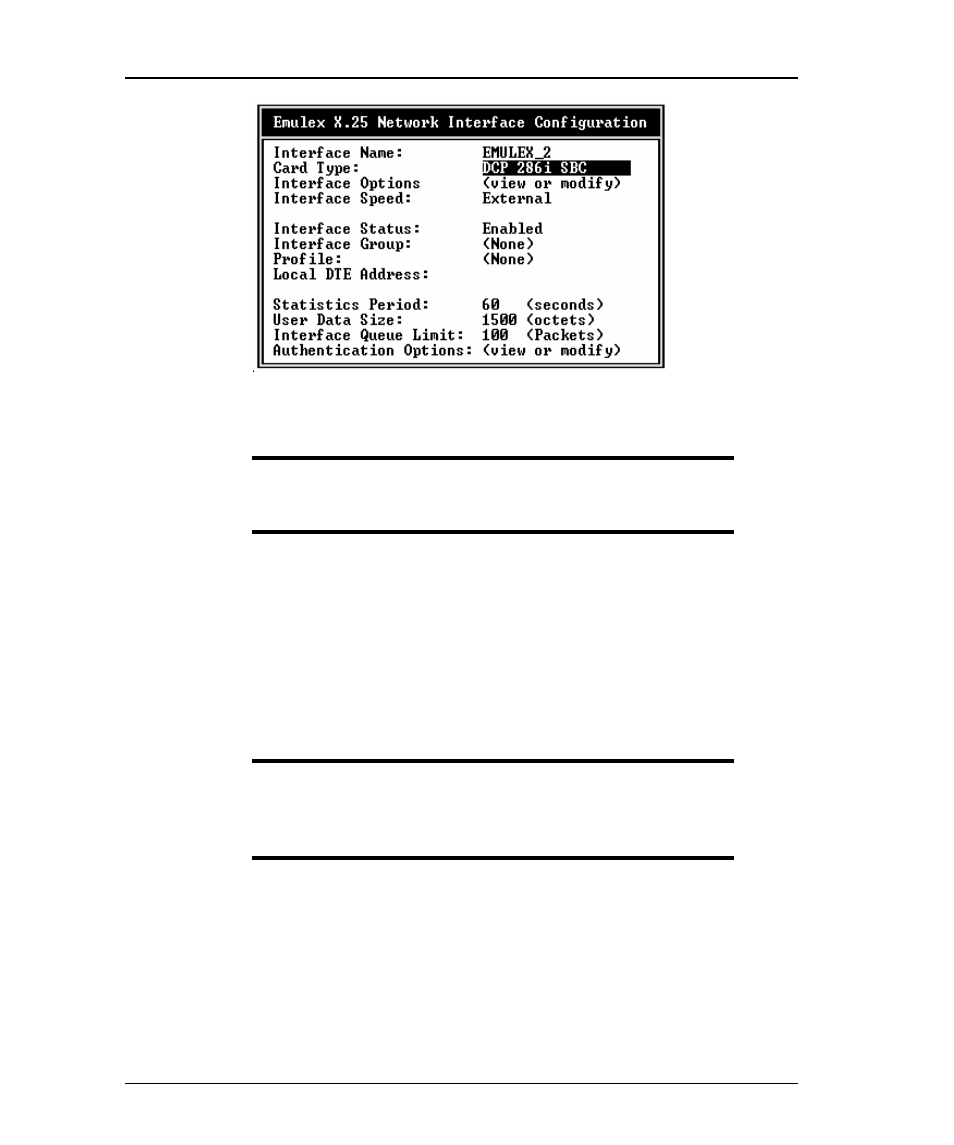

Figure 7-3 Network Interface Configuration
NOTE: Network interfaces assigned to a group may require
the same configuration for physical and link
parameters. For example baud rate, DTE/DCE...etc
5) Card Type: Select the Emulex adapter type if not already displayed.
6) Interface Options : Press to select Interface Options.
7) Interface Speed: Press and select the line clocking rate (default
is “External” for modem operation).
8) Interface Status : Displays the current status of the selected network
interface (normally enabled).
NOTE: Use the Interface Status field to test a particular
board configuration by disabling other boards,
which prevents their respective drivers from
loading.
9) Interface Group: Assigns this interface as a member of a collective
group of WAN interfaces. WAN Call Destinations can then be assigned
to the same collective interface groups. This enables protocols like IPX
or IP to request an X.25 virtual circuit through any available interface
within the group. The WAN interface actually used for the call is
dynamically determined at the time the call is made.
