Hardware Configuration 2-11
DCP386i Adapter Configuration

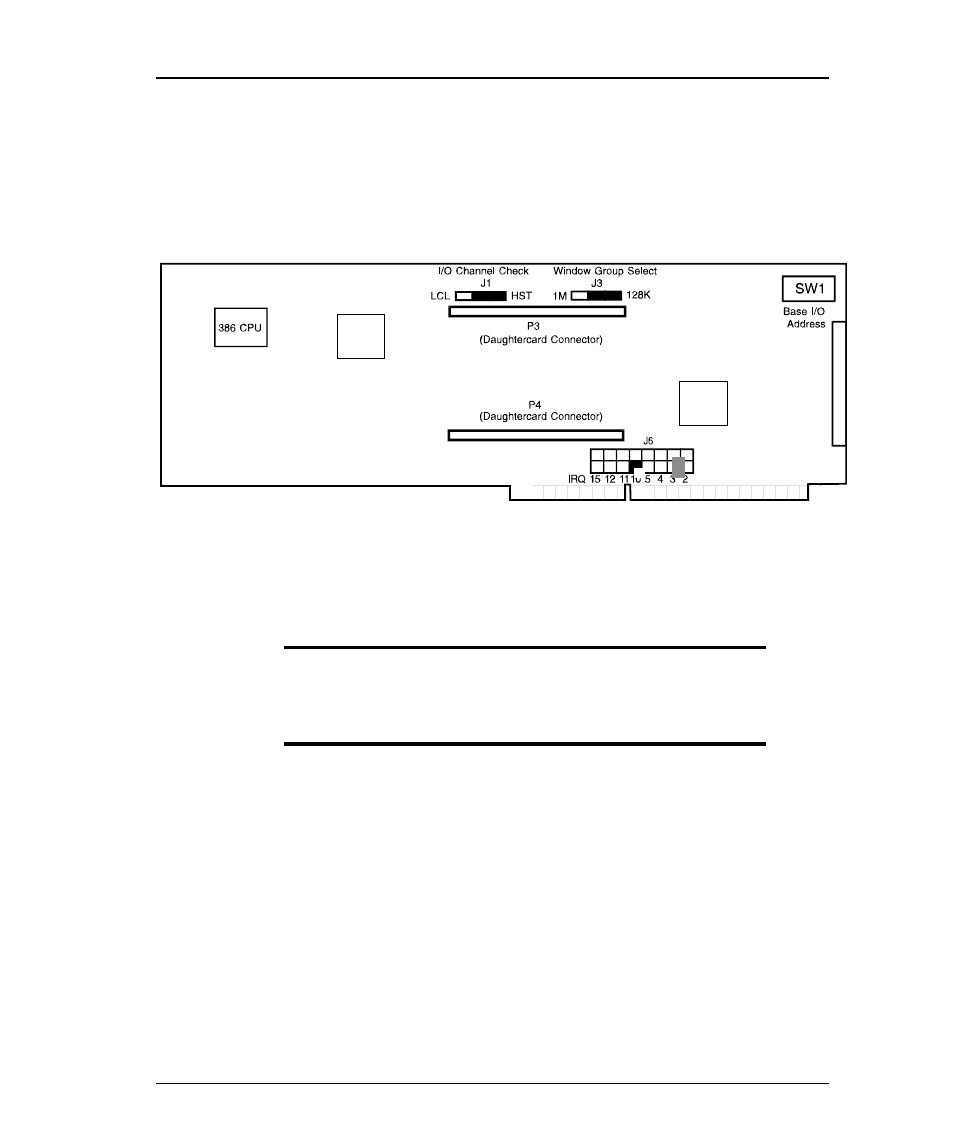

The following diagram of the DCP386i adapter shows the location of all
option setting switches and jumpers:
Figure 2-11 DCP386i Jumper Block Placement
Jumper Settings
See Figure 2-11 for the location of each jumper block.
NOTE: Jumper block J6 sets the Host Interrupt Level and
SW1 sets the base I/O address for the 386 adapter.
Reference the beginning of this chapter for details
on these settings.
Jumper block J1 and J3 contain the factory default settings for the following
options:
• PC I/O Channel Check
• Window Group Select
Reference the following factory default options for the standard Wan
configuration.
