HEIDENHAIN iTNC 530 45
1
.4 Stat
us Displa
ys

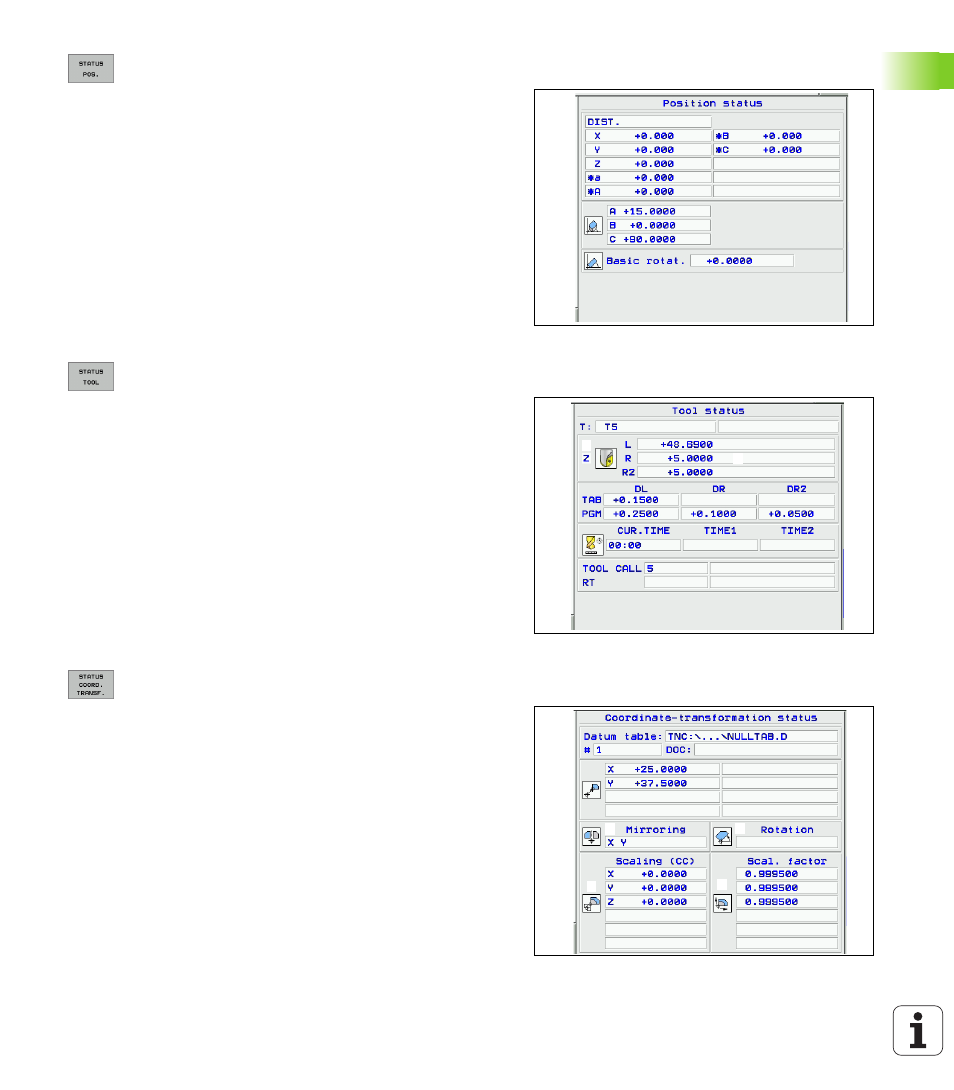

Positions and coordinates
Information on tools
Coordinate transformations
See “Coordinate Transformation Cycles” on page 426.
4
1
3
2
1 Position display
2 Type of position display, e.g. actual position
3 Tilt angle of the working plane
4 Angle of a basic rotation
3
2
5
1
4
6
1 „ T: Tool number and name
„ RT: Number and name of a replacement tool
2 Tool axis
3 Tool lengths and radii
4 Oversizes (delta values) from TOOL CALL (PGM) and the tool
table (TAB)
5 Tool life, maximum tool life (TIME 1) and maximum tool life for
TOOL CALL (TIME 2)
6 Display of the active tool and the (next) replacement tool
6 7
5 4
3
1
2
1 Name of the active datum table
2 Active datum number (#), comment from the active line of the
active datum number (DOC) from Cycle 7
3 Active datum shift (Cycle 7); The TNC displays an active datum
shift in up to 8 axes
4 Mirrored axes (Cycle 8)
5 Active rotation angle (Cycle 10)
6 Active scaling factor/factors (Cycles 11 / 26); The TNC displays an
active scaling factor in up to 6 axes
7 Scaling datum
