Homing the axes, 5 mac h ine set u p – HEIDENHAIN SW 68894x-03 User Manual
Page 95
HEIDENHAIN CNC PILOT 640
95
3.5 Mac
h
ine set
u
p
Homing the axes
It is possible to home axes that have already been homed. Here you
can select individual axes or all axes simultaneously.

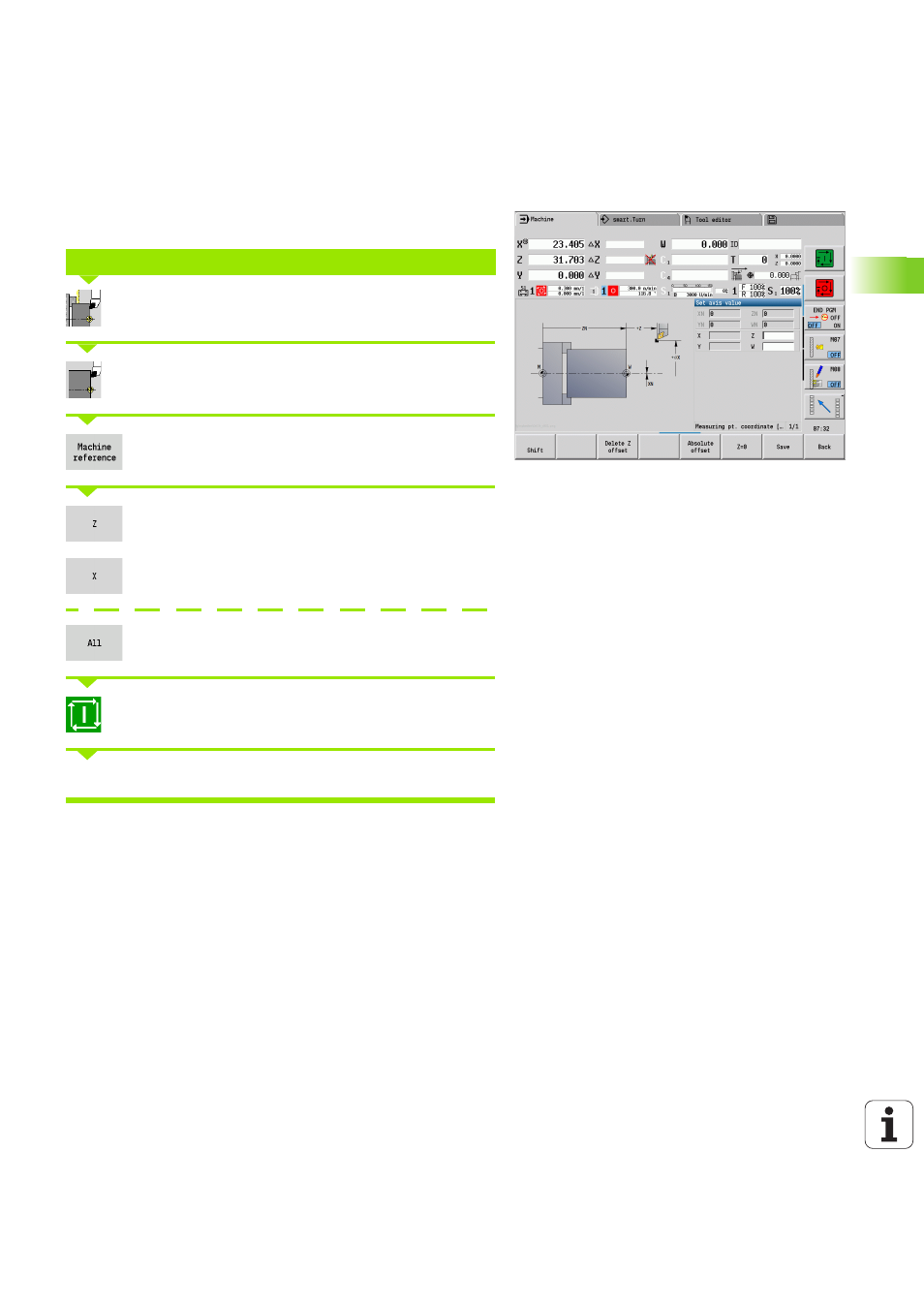

Select Setting up
Select Set axis values
Press the Machine reference soft key
Press the Z reference soft key
Press the X reference soft key
Or press the All soft key
Press Cycle start for the control to traverse the
reference marks
The CNC PILOT refreshes the position display.
REFERENCE RUN
