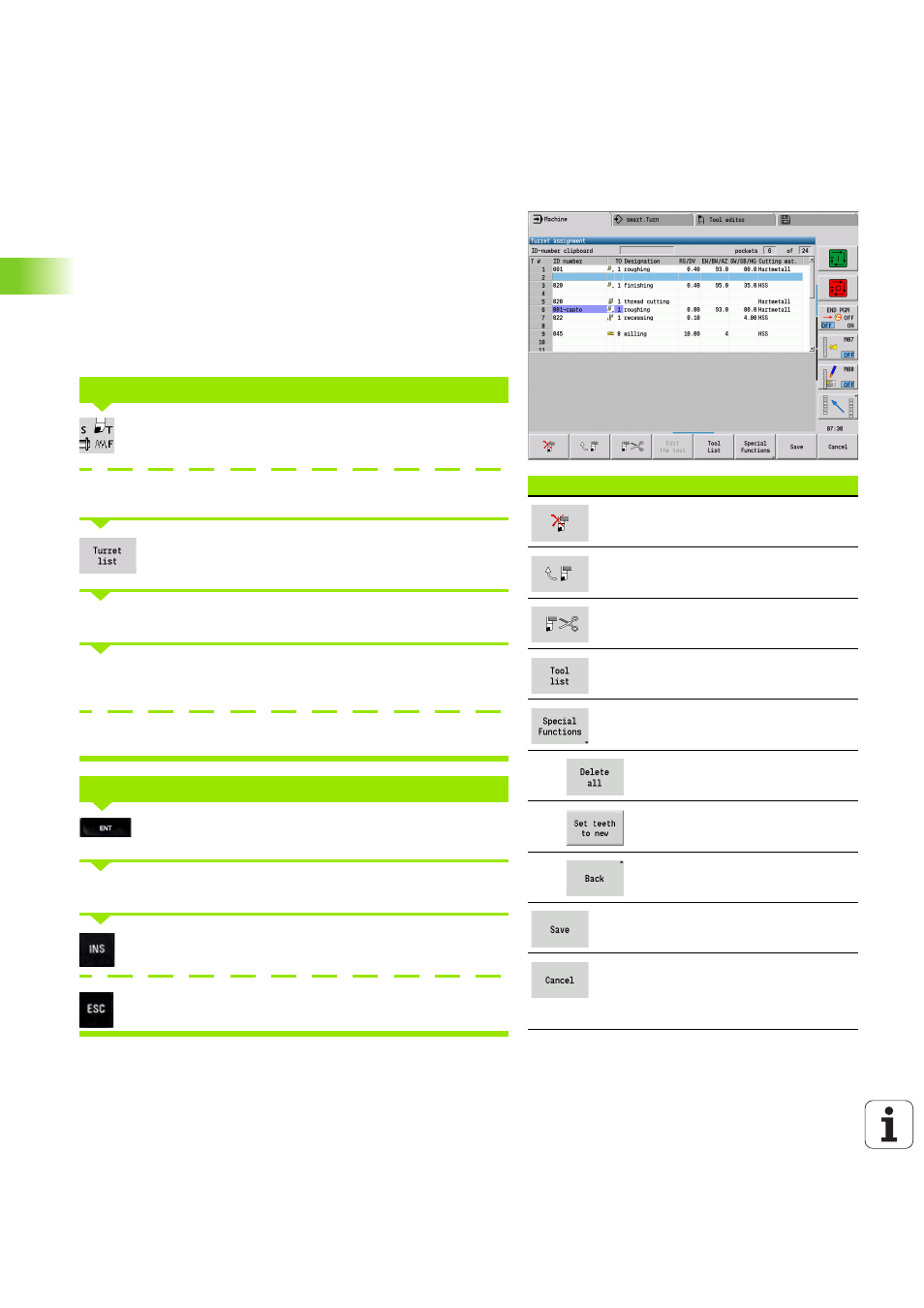

88 Machine mode of operation
3.4 Set
ting up a t
ool list
Filling the turret list
The turret assignment indicates the current assignment of the tool
carrier. When you set up a turret list, you enter the ID numbers of the
tools.
The turret list can be set up through the TSF menu or directly from the
cycle dialogs in the Teach-in mode. The desired turret pocket is
selected through the cursor keys.
You can also set up manual changing systems in the turret assignment
(siehe „Setting up the holder for manual change systems” auf Seite
515).
Select Set T, S, F (only available in Manual mode)
Initiate the cycle dialog
Press the Turret list soft key to activate the turret
assignment list
Use the arrow keys to select a turret pocket
Adapt the turret assignment with the soft keys (see soft-key table at
right).
Enter the tool ID number directly
Press the ENT key to activate direct input.
Enter the tool ID number
Press the INS key to conclude input.
Press the ESC key to cancel input.
Soft keys in turret list
Delete entry
Paste entry from clipboard
Cut out entry and save it in the clipboard
Show entries in the tool database
Switch to next menu
Delete the complete turret list
Reset tool life
Back by one menu level
Load the T number and the tool ID
number into the TSF or cycle dialog
Close the turret list without loading the T
number and tool ID into the dialog box.
Changes in the turret list remain
effective.
SET UP THE TURRET LIST
ENTER THE TOOL ID NUMBER DIRECTLY
