Recess turning, axial finishing—expanded
Call the recessing cycles
Select recess turning
Select recess turning, axial
Press the Expanded soft key
Press the Finishing run soft key
The cycle finishes the contour area defined by the contour starting
point
and contour end point (see also “Recess turning” auf
Seite 238).
With oversizes I, K for the workpiece blank, you define
the material to be machined during the finishing cycle. For
this purpose, enter the oversizes for recess turning,
finishing.
With oversizes I, K, you define the material left
remaining after the finishing cycle.

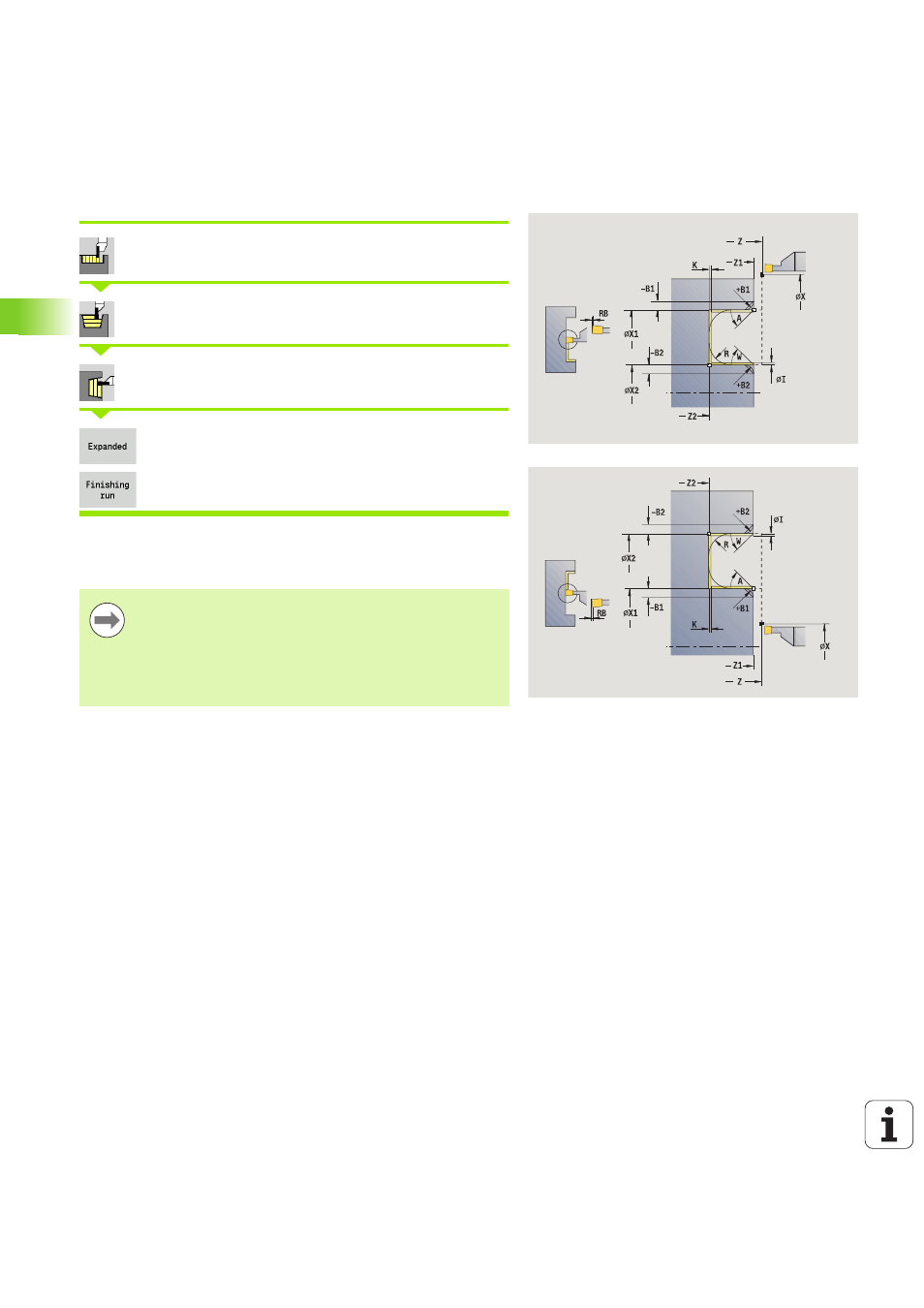

Cycle parameters
X, Z
Starting point
X1, Z1 Contour starting point
X2, Z2 Contour end point
RB Depth compensation
I, K Oversizes in X and Z are taken into account during finishing
in subsequent machining operations
RI, RK Workpiece blank oversizes in X and Z
A Start angle (range: 0° <= A < 90°)
W End angle (range: 0° <= W < 90°)
R Rounding arc
G14 Tool change point (siehe Seite 140)
T Turret pocket number
ID Tool ID number
S Spindle speed/cutting speed
F Feed per revolution
