94

Machine mode of operation

3.5 Mac

h

ine set

u

p

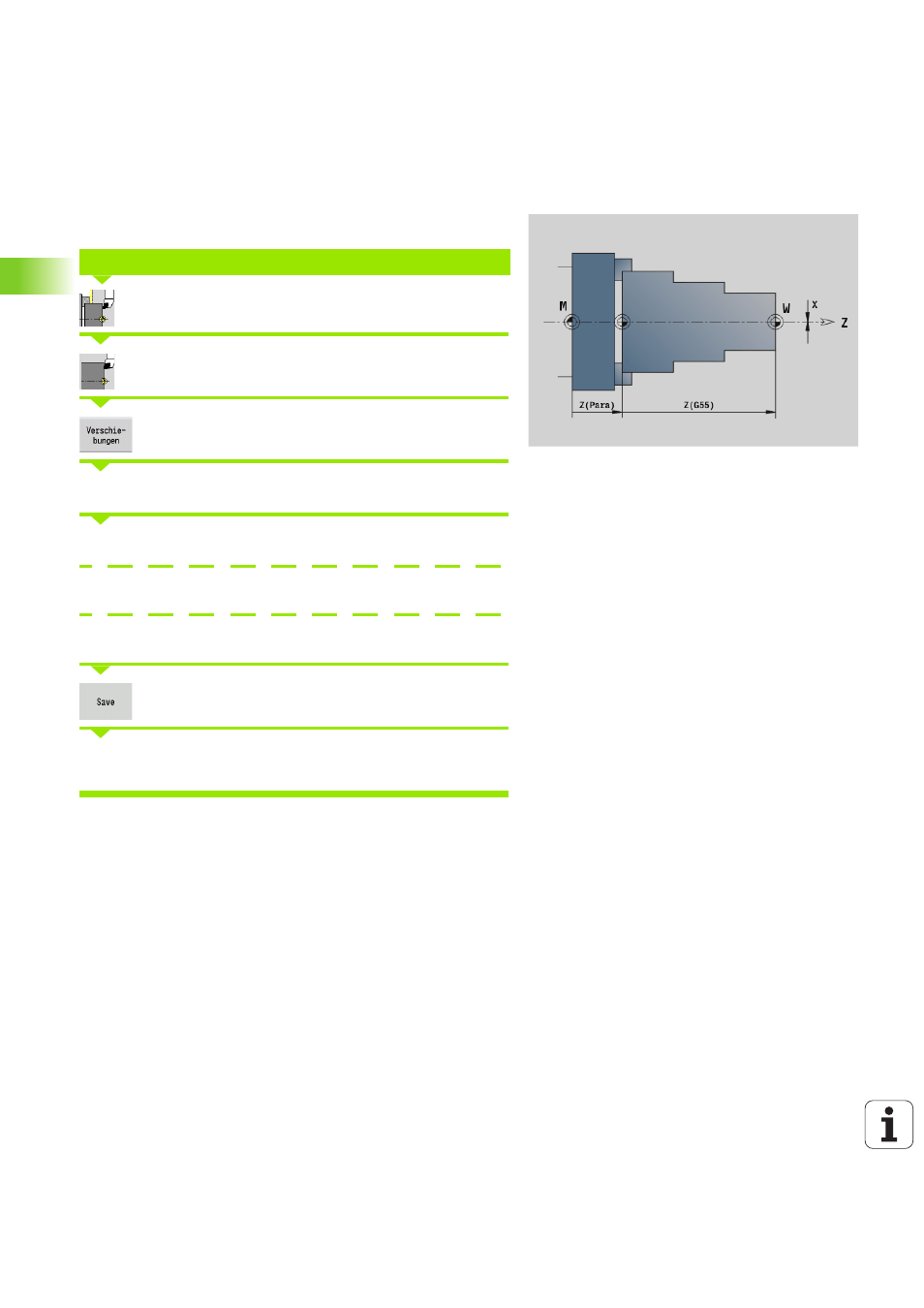

Defining offsets

Before using zero point shifts with G53, G54 and G55, you need to
define the offset values in setup mode.

Select Setting up

Select Set axis values

Press the Shift soft key

Enter the offset value

Press the G53 soft key

Press the G54 soft key

Press the G55 soft key

Press the Save soft key.

The CNC PILOT saves the values to a table. In this way, you can
activate the offsets in the program by entering the respective G codes.

SET OFFSET
