Tool and technology database

7.

3 T

ool data

Angle cutters

Select "New tool."

Select special tools.

Select special milling tools.

Select angle cutters.

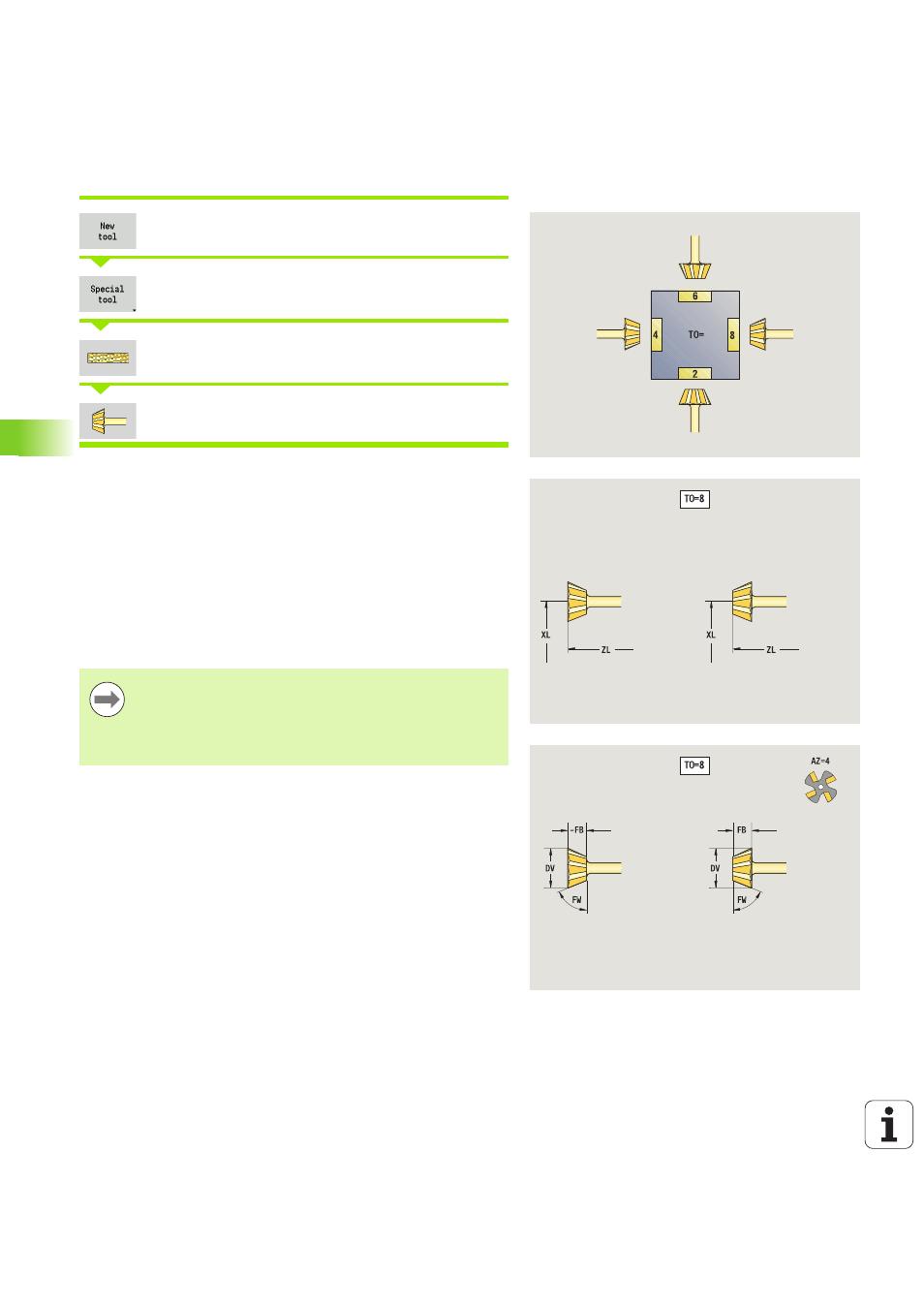

The help graphics illustrate the dimensions of the tools.

Special parameters for angle cutters
DV

(Large) milling diameter

AZ

Number of teeth

FB

Cutter width

FB<0: Large cutter diameter on front

FB>0: Large cutter diameter on back

FW

Cutter angle

DD

Cutter diameter compensation

For further tool parameters, see Seite 516.

For milling operations with constant cutting speed, the
milling cutter diameter (DV)

is used to calculate the

spindle speed.

The number of teeth (AZ) parameter is evaluated for
G193 Feed per tooth

.
