HEIDENHAIN CNC PILOT 640

533

7.

3 T

ool data

Touch probes

Select "New tool."

Select special tools.

Select handling systems and touch probes.

Select touch probes.

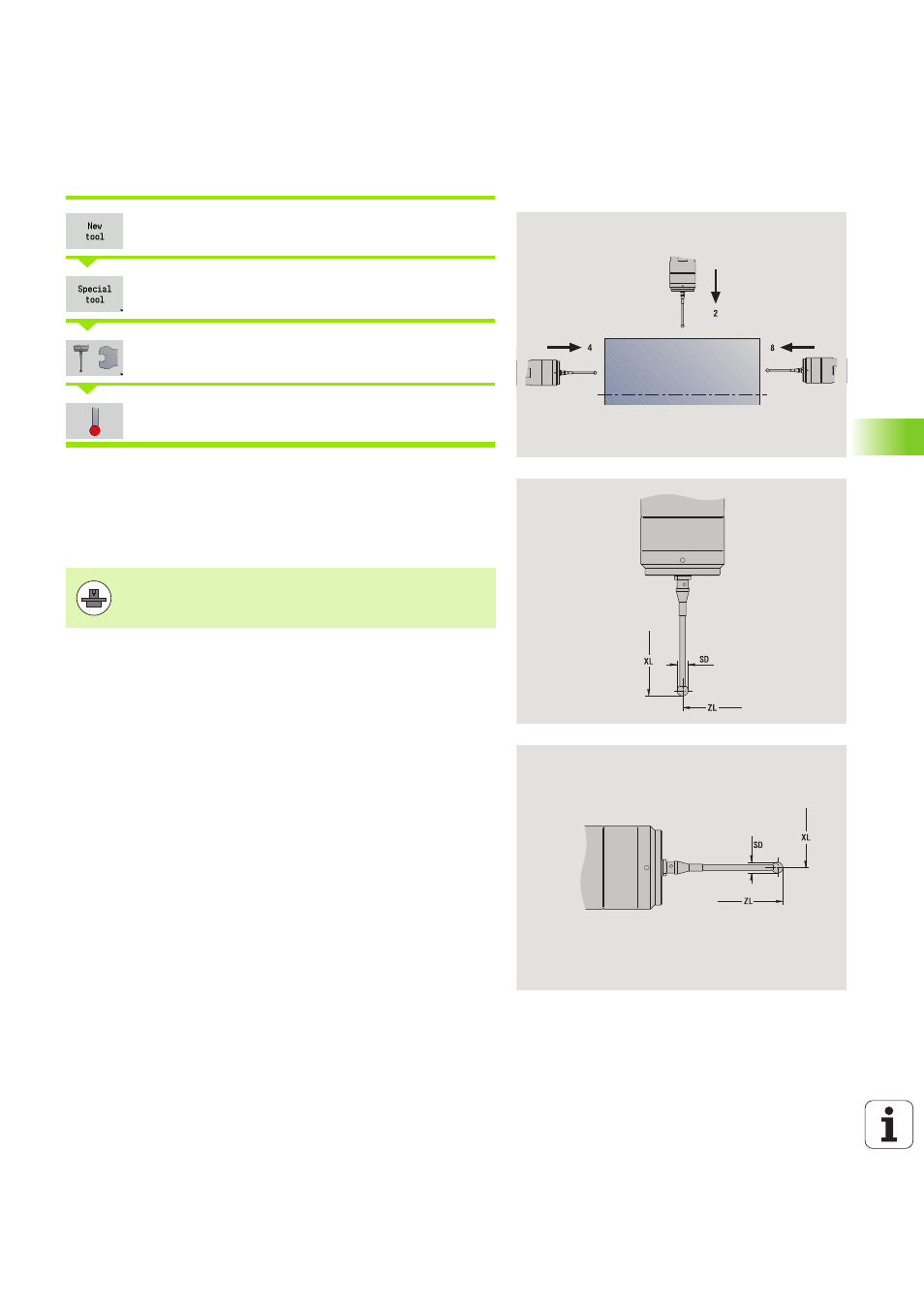

The help graphics illustrate the dimensions of the tools.

Special parameters for touch probes
SL

Cutting length

TP

Selection of touch probes

For further tool parameters, see Seite 516.

The CNC PILOT must be specially prepared by the
machine tool builder for the use of a 3-D touch probe.
