420 ICP programming
5.1
0
Cont
our elements on lat
e
ra
l surf
ace

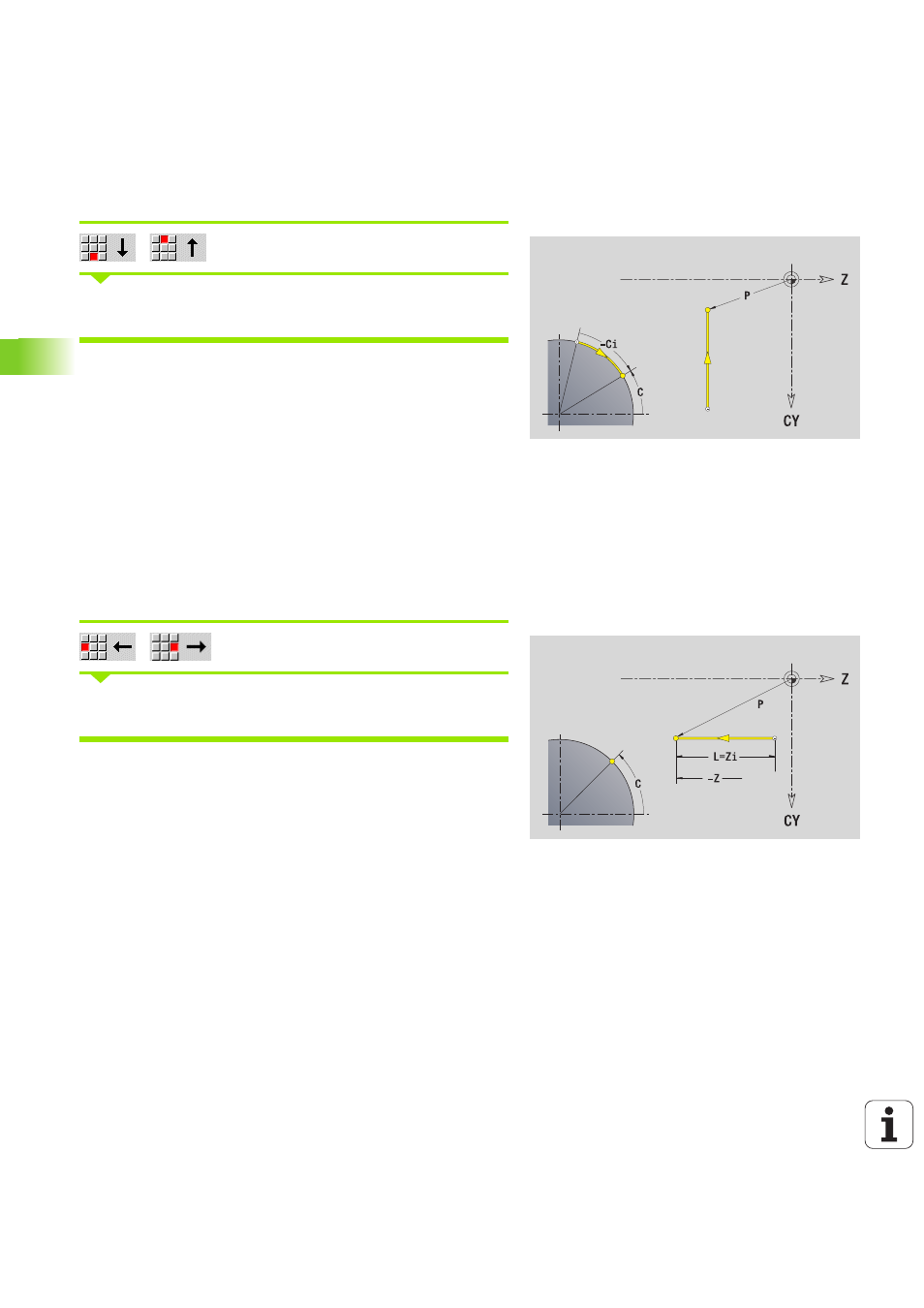

Vertical lines on lateral surface
Select the line direction.
Enter the line dimensions and define the transition to the next contour
element.
In smart.Turn, ICP generates a G111.
Horizontal lines on lateral surface
Select the line direction.
Enter the line dimensions and define the transition to the next contour
element.
In smart.Turn, ICP generates a G111.
Parameters
CY
Target point as linear dimension (reference: diameter XS)
CYi Incremental target point as linear dimension (reference:
diameter XS)
P Target point as polar radius
C Polar target point (angle)
Ci Incremental polar target point – angle
L Length of line
F: See machining attributes on Seite 375
Parameters
Z
Target point
Zi Incremental target point
P Target point as polar radius
L Length of line
F: See machining attributes on Seite 375
