234 Teach-in mode
4.5 Recessing cy
cles

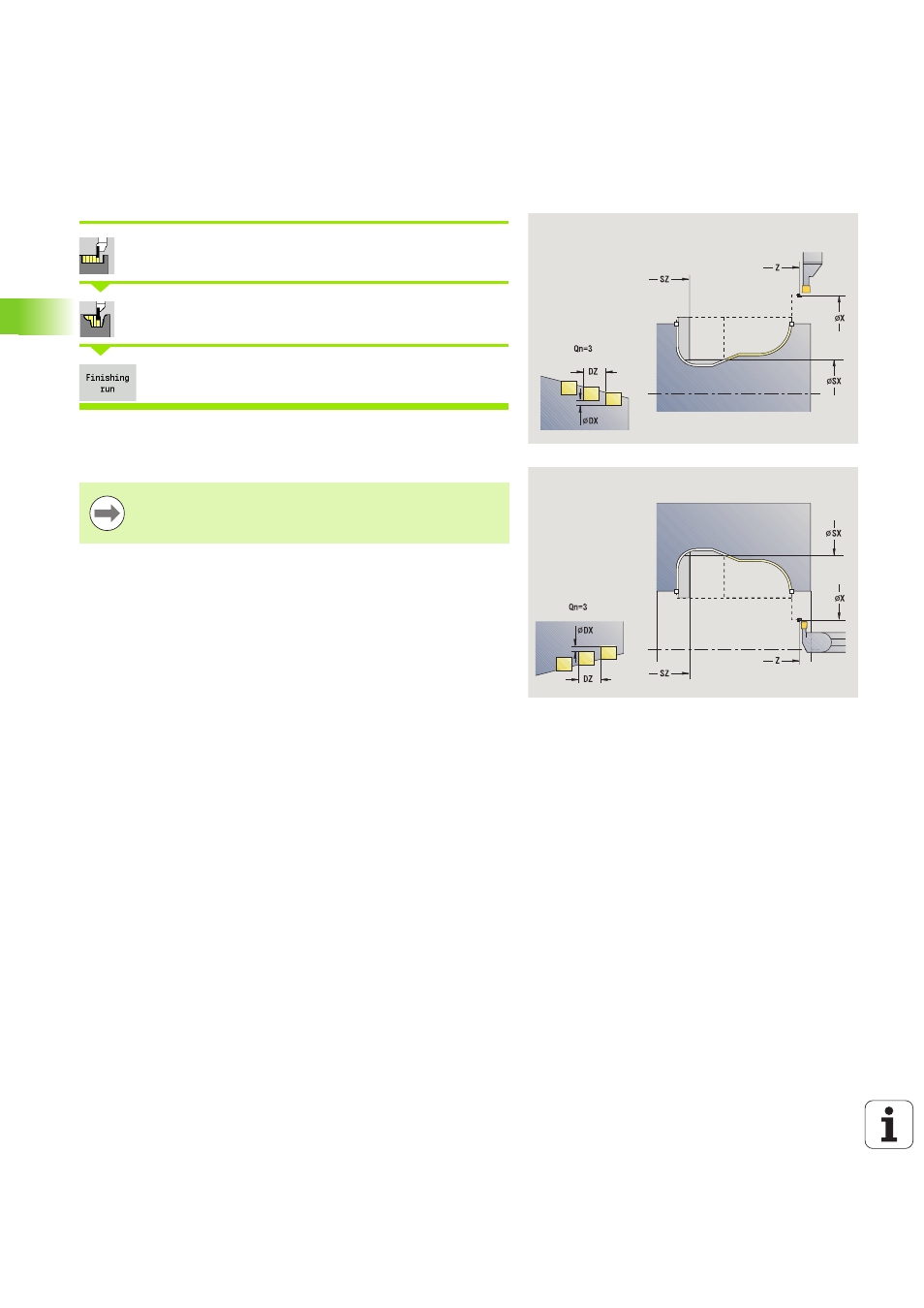

ICP recessing, radial finishing
Call the recessing cycles
Select recessing, radial ICP
Press the Finishing run soft key
The cycle finishes the number of recesses defined in number Qn with
the ICP recessing contour. The starting point defines the position of
the first recess.
At the end of the cycle, the tool returns to the starting
point.
Cycle parameters
X, Z
Starting point
FK ICP finished part: Name of the contour to be machined
Qn Number of recess cycles (default: 1)
DX, DZ Distance to subsequent recess with respect to the
preceding recess
G14 Tool change point (siehe Seite 140)
T Turret pocket number
ID Tool ID number
S Spindle speed/cutting speed
F Feed per revolution
SX, SZ Cutting limits (siehe Seite 140)
G47 Safety clearance (siehe Seite 140)
MT M after T: M function that is executed after the tool call T.
