88 Prelude — Instruction Manual
Section 3 — Configuration Reference
Acappella Remote Panels
Note Only Acappella Remote panels can be configured using Prelude. Acappella
control panels built into Acappella matrix frames are configured with the web
page for that Acappella matrix frame.

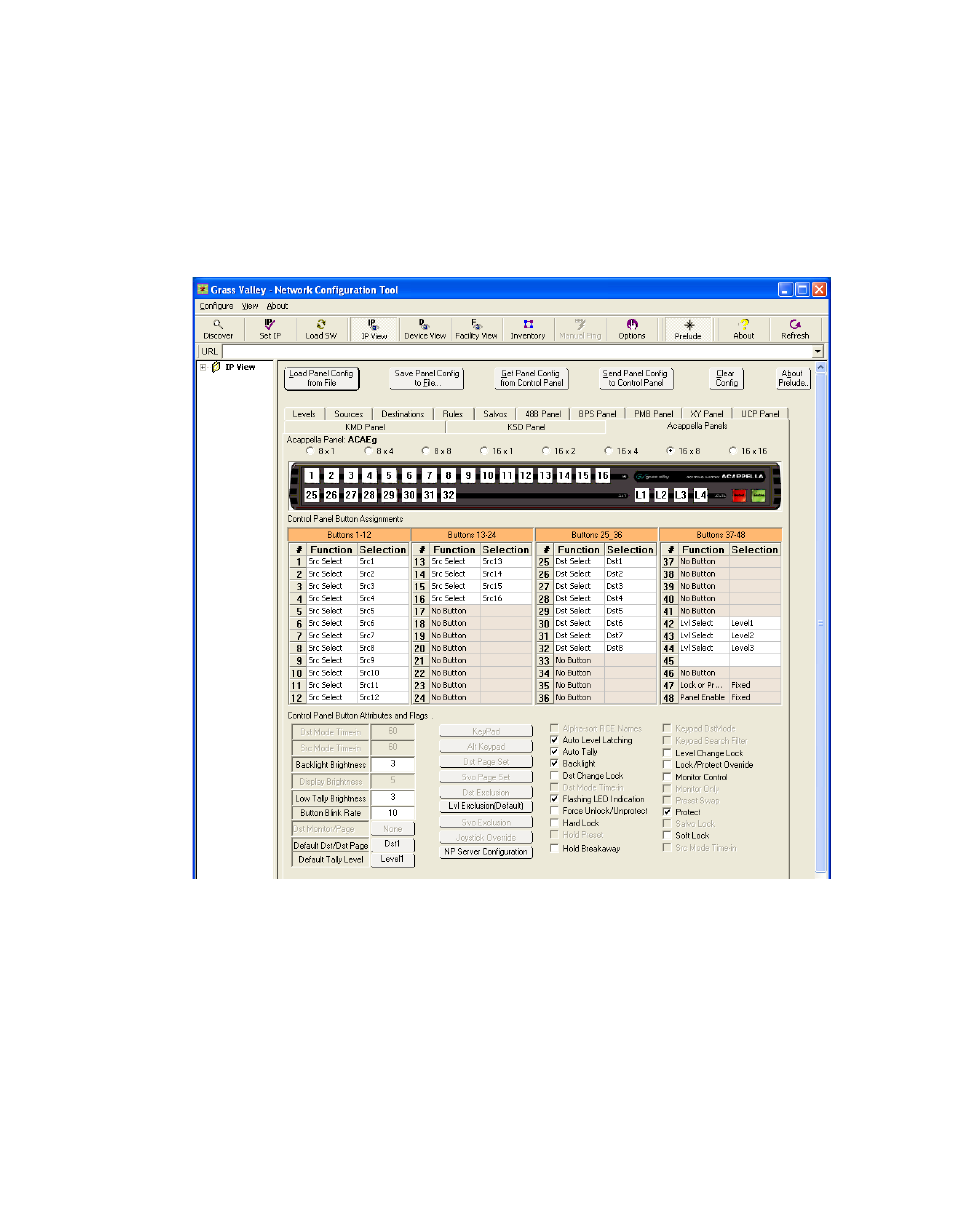

Figure 69. Acappella Panel Button Attributes and Flags
Acappella Remote Panel Types
If your Prelude system has different types of Acappella remote panels (8x1,
16x16, etc,) they will all appear on the
Send Panel Config to Control Panel list.
You should select only panel(s) that match the configuration type you have
created before you send the configuration to the panel(s). An Acappella
remote panel will operate with a mis-matched configuration, but buttons
not present on the panel will obviously not be usable.
