Expansion system configuration example
XEdit

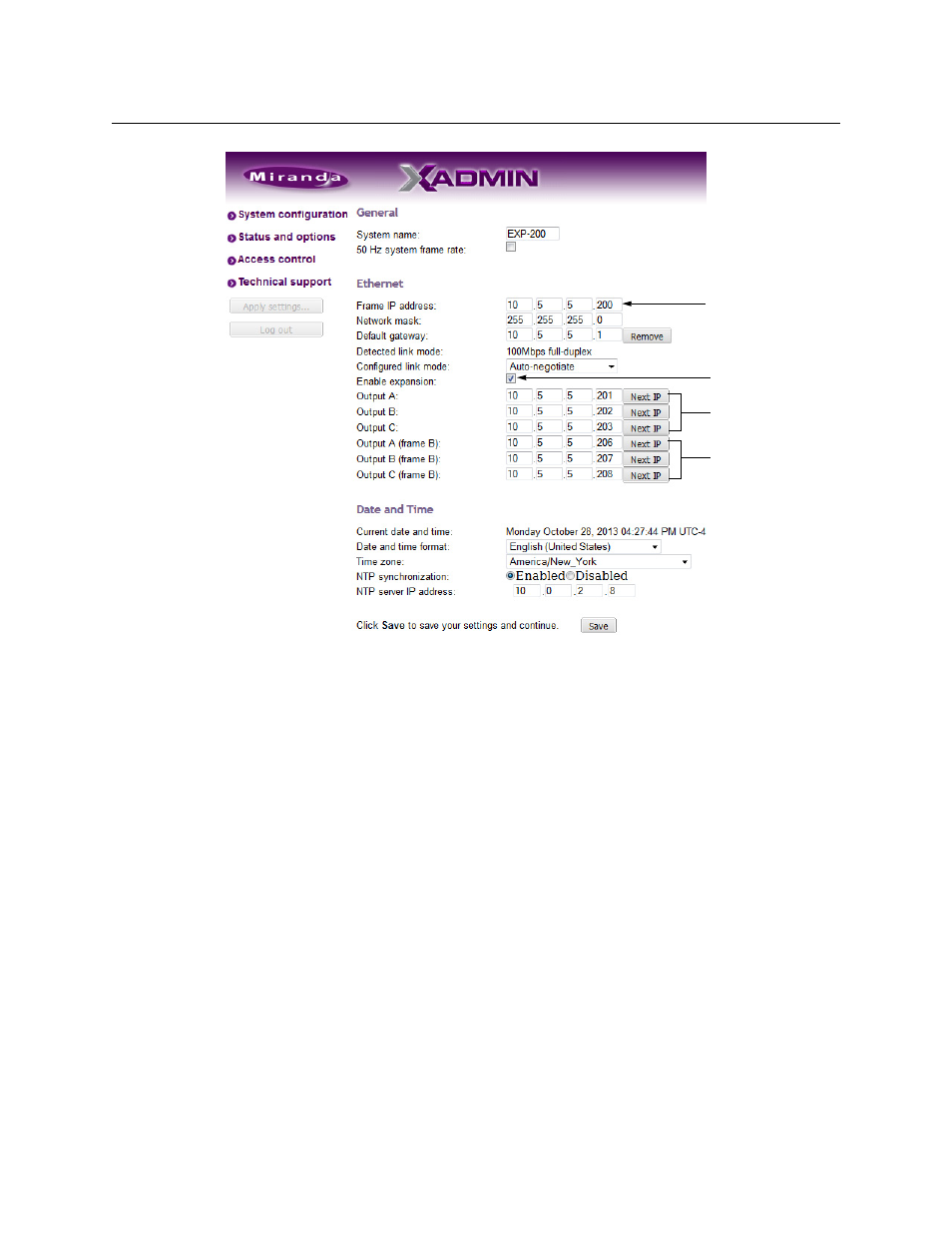

Two frames in an expanded system are presented in the XEdit hierarchical System list as
shown below.
Expansion mode is enabled
IP addresses for output
cards in Frame A
IP addresses for output
cards in Frame B
IP address for the system
