20
Kaleido-X (7RU) Installation

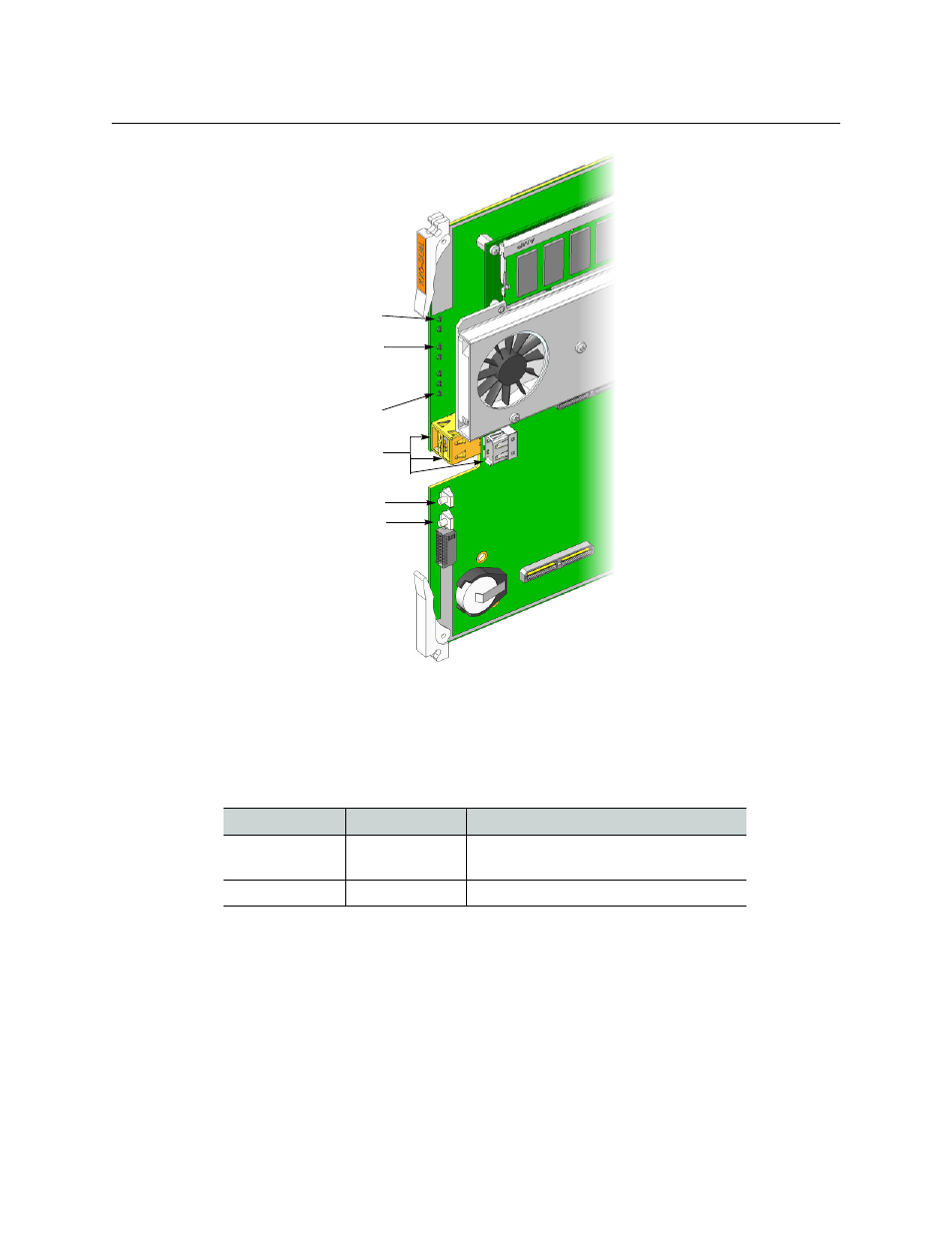

KXO-Dual Output Cards
Front Card-Edge Connectors
The front card-edge connectors are not accessible in normal use, as they are covered by the
front door of the frame. They are provided for maintenance purposes, or for special
circumstances. One exception is the recessed USB connector, which can be used to hold a
USB key that can be left in place during operation with the door closed.
Connector label Connector type Function
USB 1, USB 2 and
USB 4 USB A Connect a mouse, keyboard, or USB key
for software upgrade or data backup
(unlabeled) ICAT (for factory use only)
Status LEDs
Card
CPU
DVI 1
DVI 2
LTC 1
LTC 2
LTC 3
Buttons
Bypass
CPU ON/OFF (Reset)
USB connectors
