Control Panel Server\RCL Server must have the IP address of Miranda's Application Server.
Flags and Parameters should have Protocol Type set to
NP . There is also a Debug Rx and Debug
Tx that can be temporarily activated to view communication between Miranda and Encore.
Similar to Philips, the software assumes that there are no gaps in sources or destinations order.
The first source index should be 0, as well as first destination index.

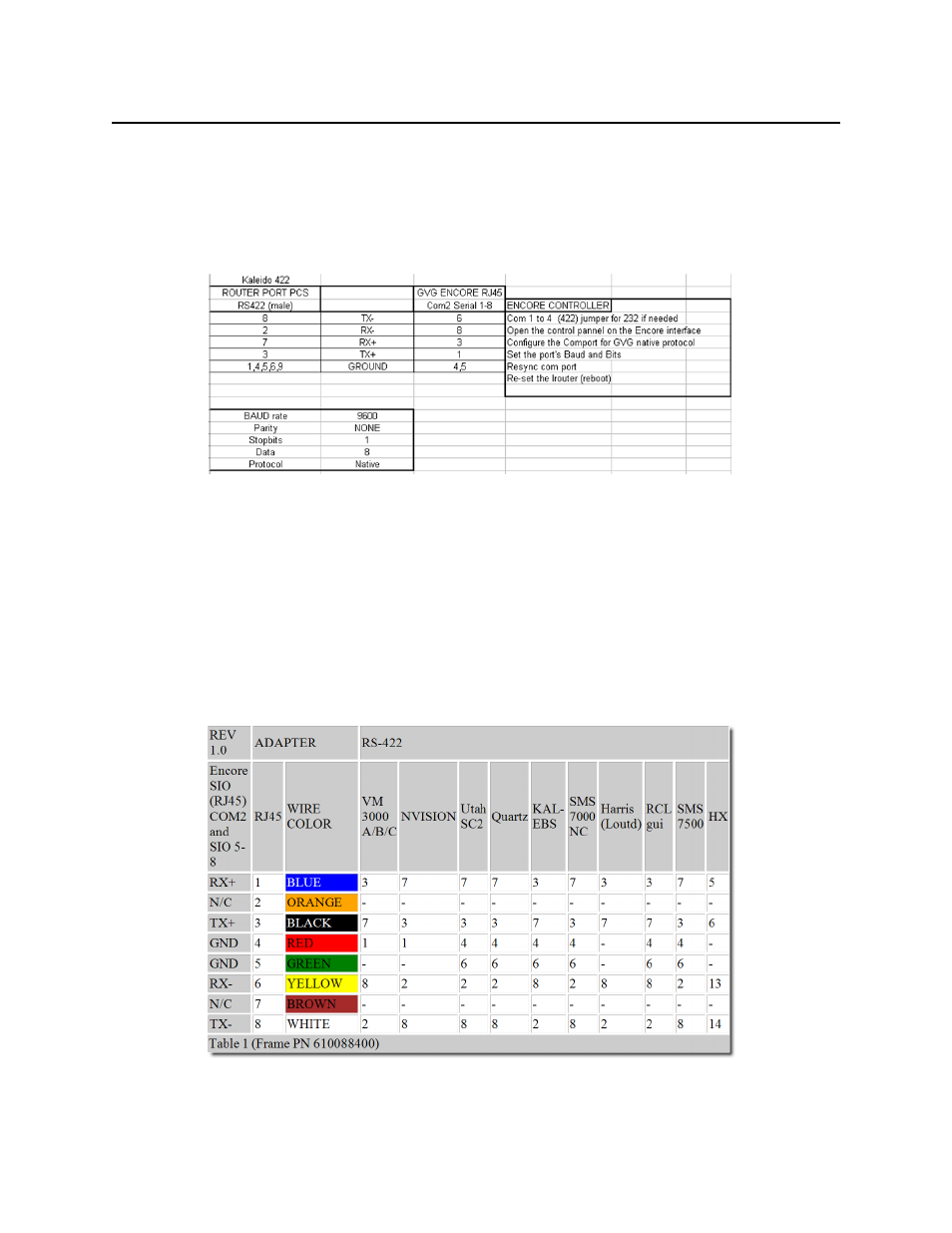

Figure 3-1: Baud rates and Info:
Most commonly used pin-outs for interfacing Encore via the SIO interface:
• COM2 is only available as an RCL client. It does not support being configured as a router
channel.
• There are two types of Encore frames. They can be identified by the part number on the
frame which is located on inside right panel of the frame. It is important that you match
the table pin-outs to the frame you have. The COM1 serial port is the same for both frame
types.
• The HX interface requires an RJ45-to-DB15 adapter. All others are RJ45-to-DB9.
Figure 3-2: Pinouts for frame 610088400 (RS-422)
