Exclusion Editor Menus

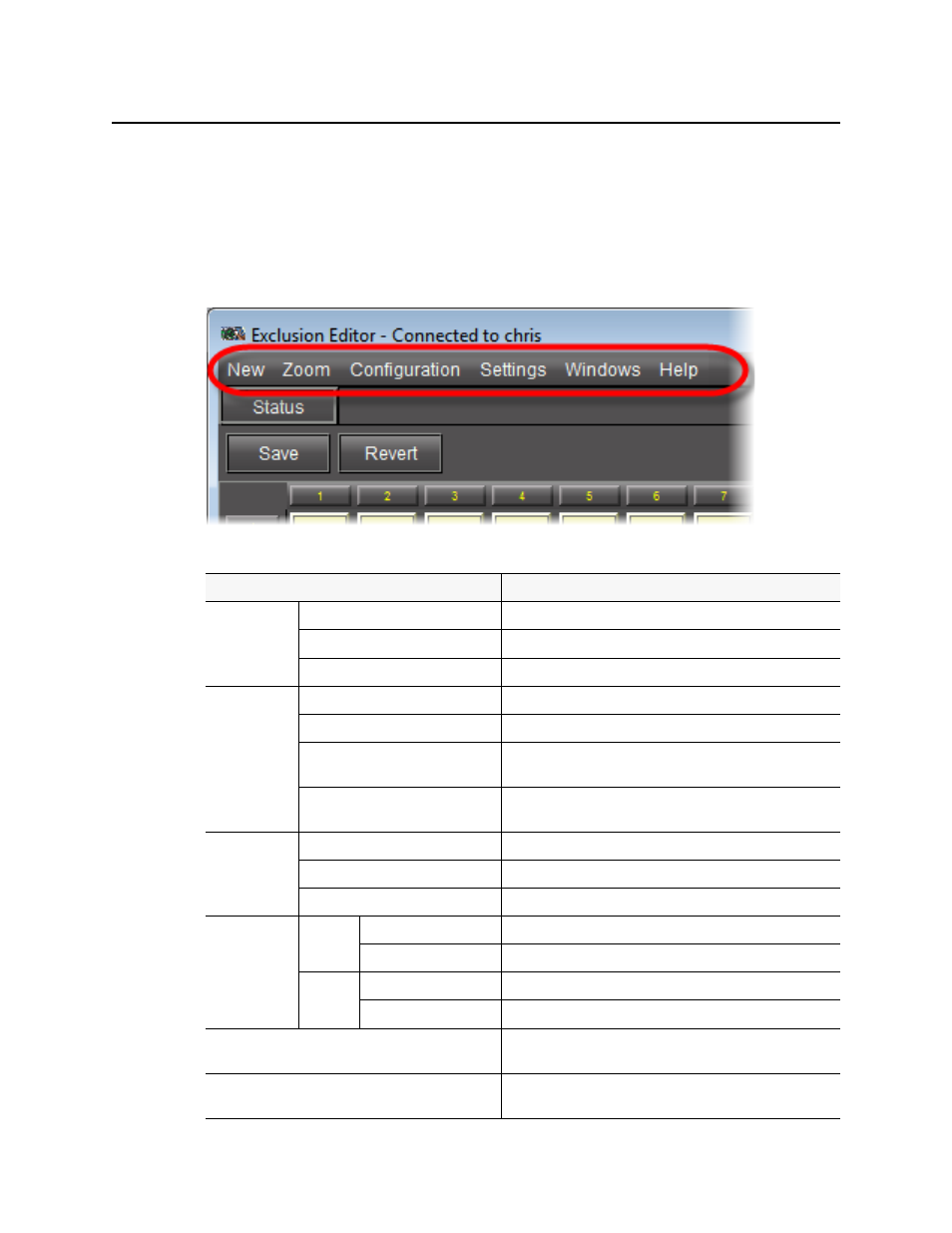

You may set some parameters of the Exclusion Editor using the menus located along the top.
1. If any exclusions are not allowed because of other choices made in the router definition, they will not
appear on the matrix. Additionally, a note will appear (highlighted in red) in the Status box at the top
of the pane. Click Status to see a list of all notes.
Exclusion Editor menu items
Menu item Action
New Single Bus Opens a new Single bus window with destination 1 selected.
Matrix View Opens a new Matrix View window.
Status View Opens a window showing the router status.
Zoom Zoom in Magnifies the view of the matrix by a set increment.
Zoom out Demagnifies the view of the matrix by a set increment.
Default size Reverts the magnification of the matrix to the default zoom
setting.
Fit horizontally Magnifies or demagnifies the view of the matrix so that it fits
horizontally within the Exclusion Editor’s window.
Configuration Salvo Editor Invokes the configuration mode Salvo editor window.
Exclusion Editor Invokes the configuration mode Exclusion editor window.
Group Editor Invokes the configuration mode Group editor window.
Settings Status Bar On Displays status bar.
Off Hides status bar.
Sound On Enables sound effects.
Off Disables sound effects.
Windows Contains a list of open windows. Selecting an entry will bring it
to the front.
Close Closes current window. If the window is the last one open – then
exit.
