Grass Valley GV STRATUS Installation v.3.1 - Manual (Page 401)

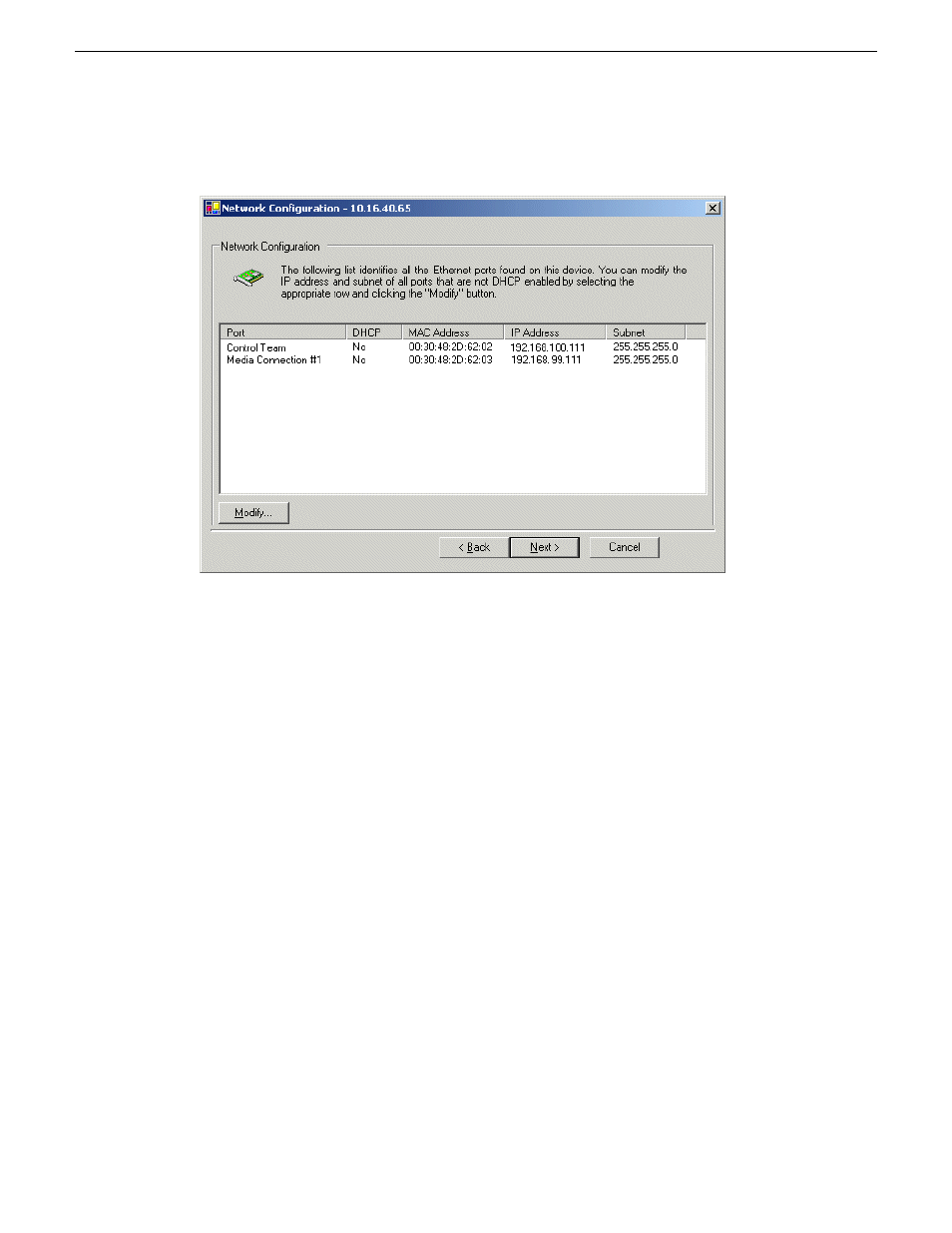

Configure Network Configuration page
This page configures both control and media (iSCSI) network connections.
1. Verify that the top port is configured correctly.
The top port is the port over which the K2Config application is communicating. If correctly
configured, it is already assigned the control network IP address, as displayed on this page.
2. Select Media Connection #1 and then click Modify .
A network configuration dialog box opens.
3. Verify or configure the media connection as follows:
• Verify or enter the media network IP address. Also enter the subnet mask.
4. Click Next .
The iSCSI Initiator Configuration page opens.
2013 12 19 GV STRATUS Installation and Service Manual 401
Complete system set up and configuration
