Appendix D Use of Application Instructions|DOP-EXIO Series
D-24 Revision March, 2008, Doc. Name: 2007PDD23000014
Mnemonic Operands Function
FMOV D S D n
Fill Move
Bit Devices Word Devices
X Y M S K H KnX KnY KnM KnS T C D E F
S
D
n
y Note:
1. If S is used in device F, only 16-bit instruction is applicable.
2. Range of n: 1~ 512
16-bit instruction (7 Steps)
FMOV
Continuous
execution
32-bit instruction (13 Steps)
DFMOV
Continuous
execution
y Flags: None
Operands:
S
: Source of data
D
: Destination of data
n
: Number of data to be moved
Explanations:
The contents in n registers starting from the device designated by S will be moved to n registers
starting from the device designated by D. If n exceeds the actual number of available source devices,
only the devices that fall within the valid range will be used.

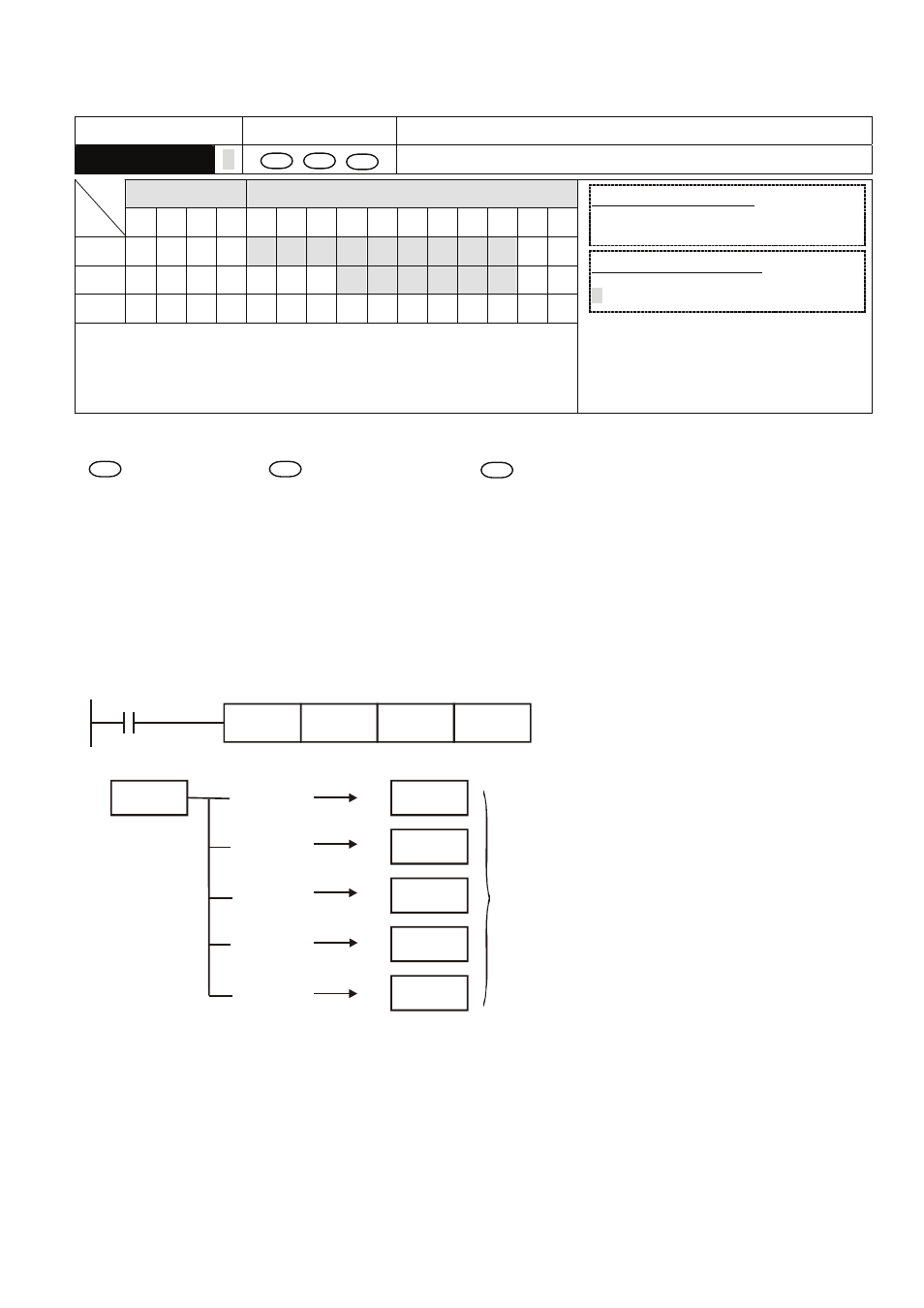

Program Example:
When X10 = On, K10 will be moved to the 5 consecutive registers starting from D10.
X10
D10 K5 FMOV K10
K10
K10
K10
K10
K10
K10 D10
D11
D12
D13
D14
n=5
