Figure a-20 – Gasboy Atlas Fuel Systems Installation Manual User Manual
Page 97
MDE-4331M Atlas® Fuel Systems Installation Manual · September 2014
Page A-21
Foundation Diagrams
Atlas Diagrams

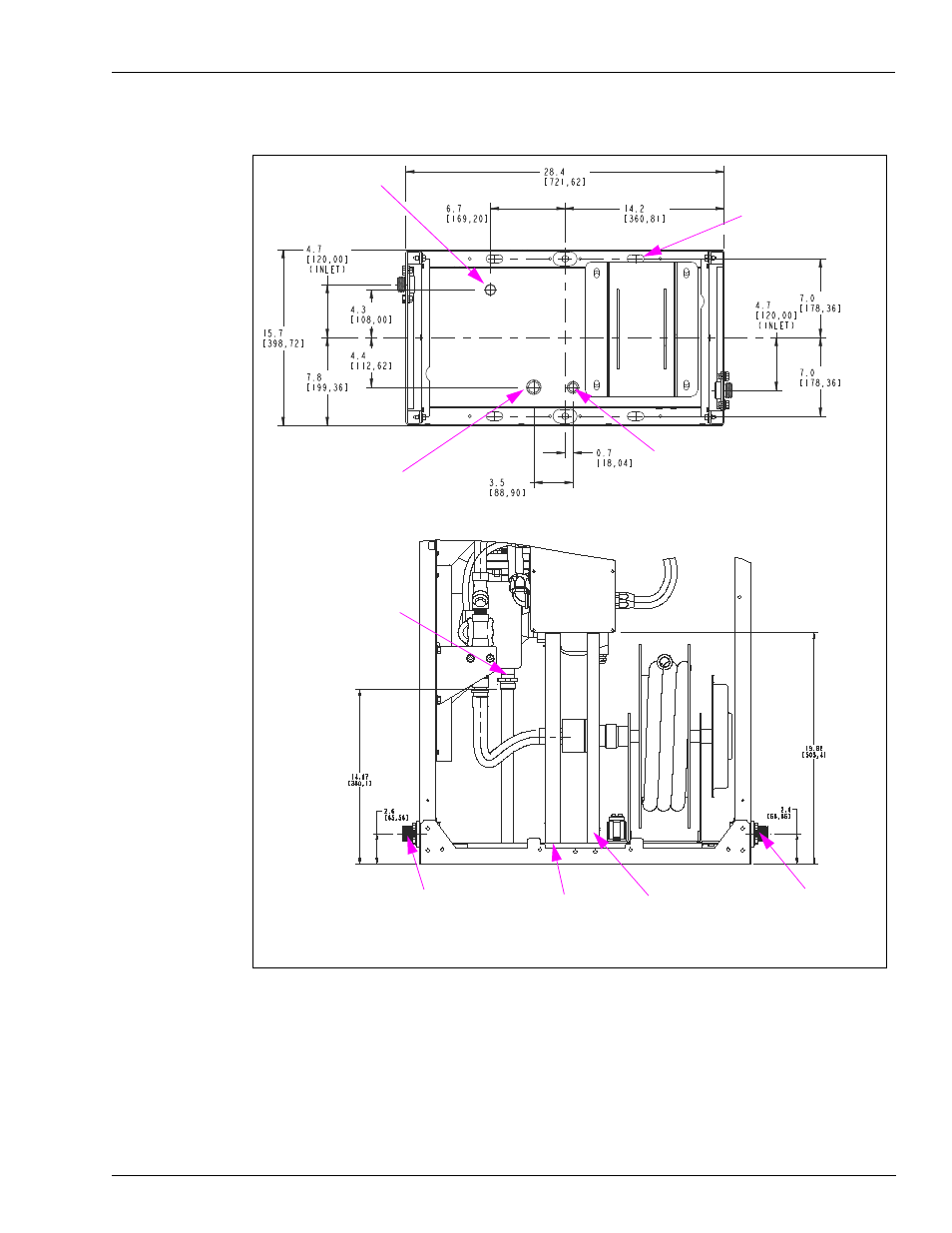

Figure A-20: Model 9862KX-Z (DEF Cold Weather Dispenser)
DEF Dispenser - Model 9862KX-Z
1-inch BSPP Male
Optional Product
Inlet
1-inch BSPP
Male Optional
Product Inlet
AC Power
Connection
Optional DC
Power
Connection
1-inch BSPP
Male Optional
Product Inlet
Footprint
1-inch Conduit
Connection AC Power
3/4-inch Conduit Connection Optional
DC Applications
Anchor Bolt Slots (Use 1
each side)
Product Inlet
