MDE-4431C Gasboy ATC M05819K00X Kits Installation Manual · February 2013
Page 21
Installing the Commercial Atlas (9800K) ATC Kits
9
Feed the wires extending from the IS Barrier Mounting Stud through the hole in the shelf as
shown in
and place the mounting stud through the hole.

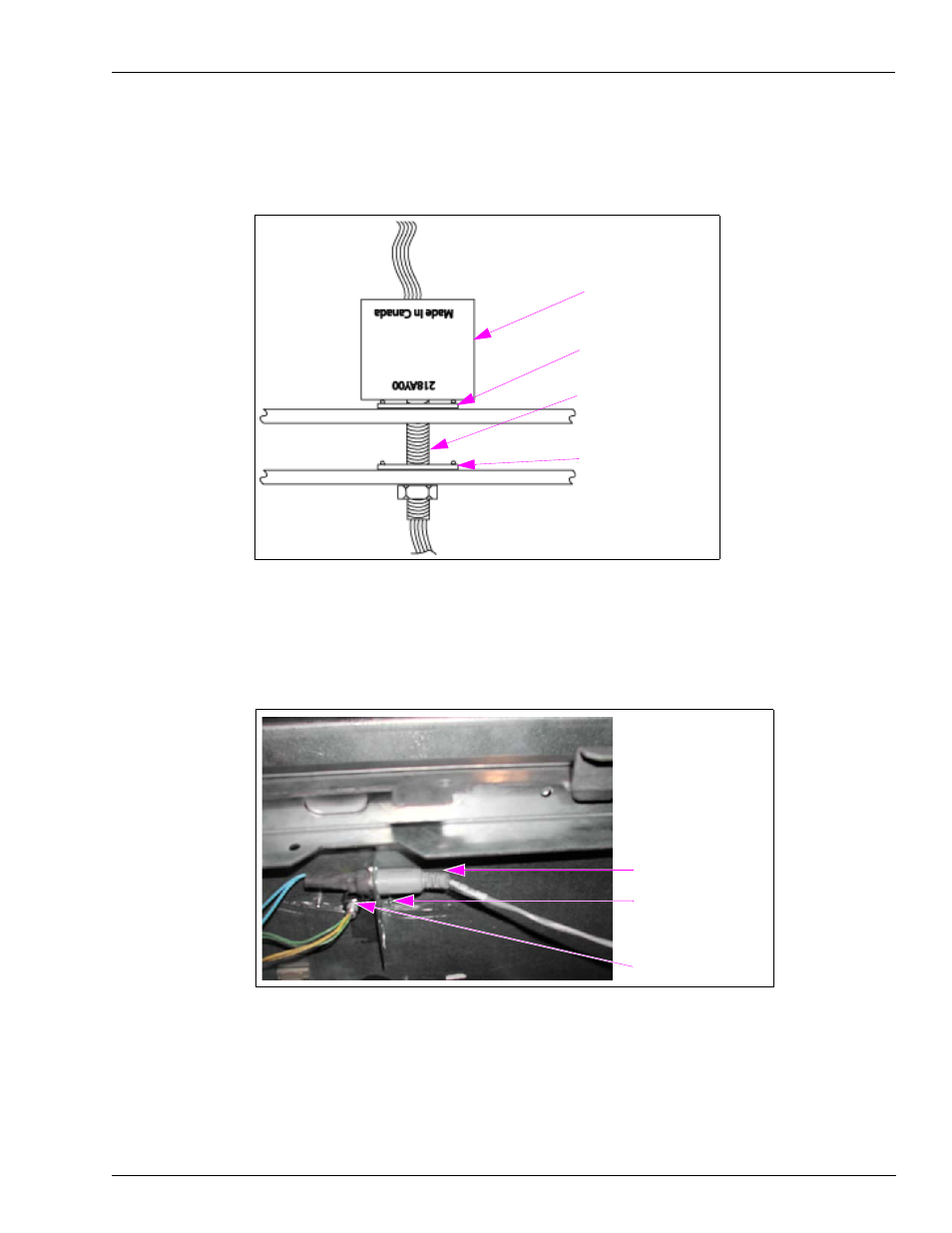

Figure 13: Mounting the IS Barrier on the Shelf
IS Barrier
IS Barrier Mounting Stud
through Air Gap
Lower Conduit Seal
Washer and Gasket
Upper Conduit
Seal Washer
10
Place the wires extending from the mounting stud through the mounting hole in the Dual
Probe Connector Assembly. Place the Connector Assembly up on the stud [under the shelf
)].
Figure 14: Probe Connector Assembly and IS Barrier Stud Mounting (Under the Shelf)
Probe Connector
Probe Connector
Assembly
IS Barrier Mounting Stud
Note: The probe connection to the Probe Connector Assembly shown is for a single unit. The
dual unit has two probe connectors connected to the assembly.
11
Place the washer and nut over the wires and turn nut onto the stud securing the IS Barrier and
Probe Connector. Tighten snugly but do not overtighten.
