MD2401 L-Band Multi Demod Installation and Operation Manual Rear Panel Interfaces
MN-MD2401 5–7
Revision 7
on off on on 45
off on on on 46
on on on on 47
Table 5-5. S1 DIP Switches
Position 5 Control Type
off RS-485 (default)
on RS-232

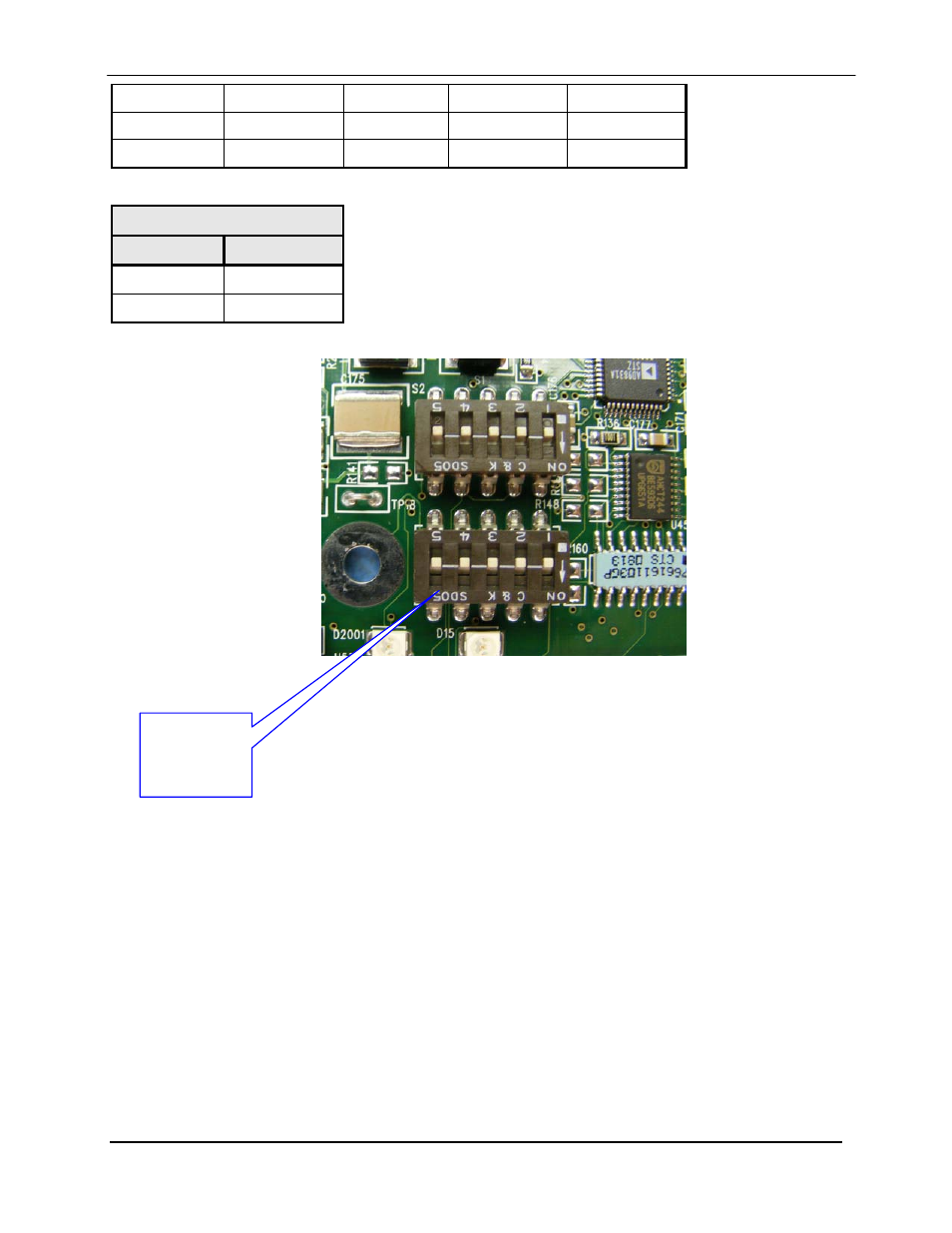

Figure 5-3. S1 DIP Swithes
S1
Dip Switch
Addressable
Settings
