Chapter 5. Rear Panel Interfaces
5.1 MD2401 Connections
All MD2401 connections are made to labeled connectors, and to any optional interfaces installed
in slots located on the rear of the unitnection interfacing to the MD2401 must be the appropriate
mating connector. Refer to Figure 5-1 for connector locations.
Shielded cables with the shield terminated to conductive backshells are
required in order to meet EMC Directives. Cables with insulation flammability
ratings of 94 VO or better are required in order to meet Low Voltage Directives.

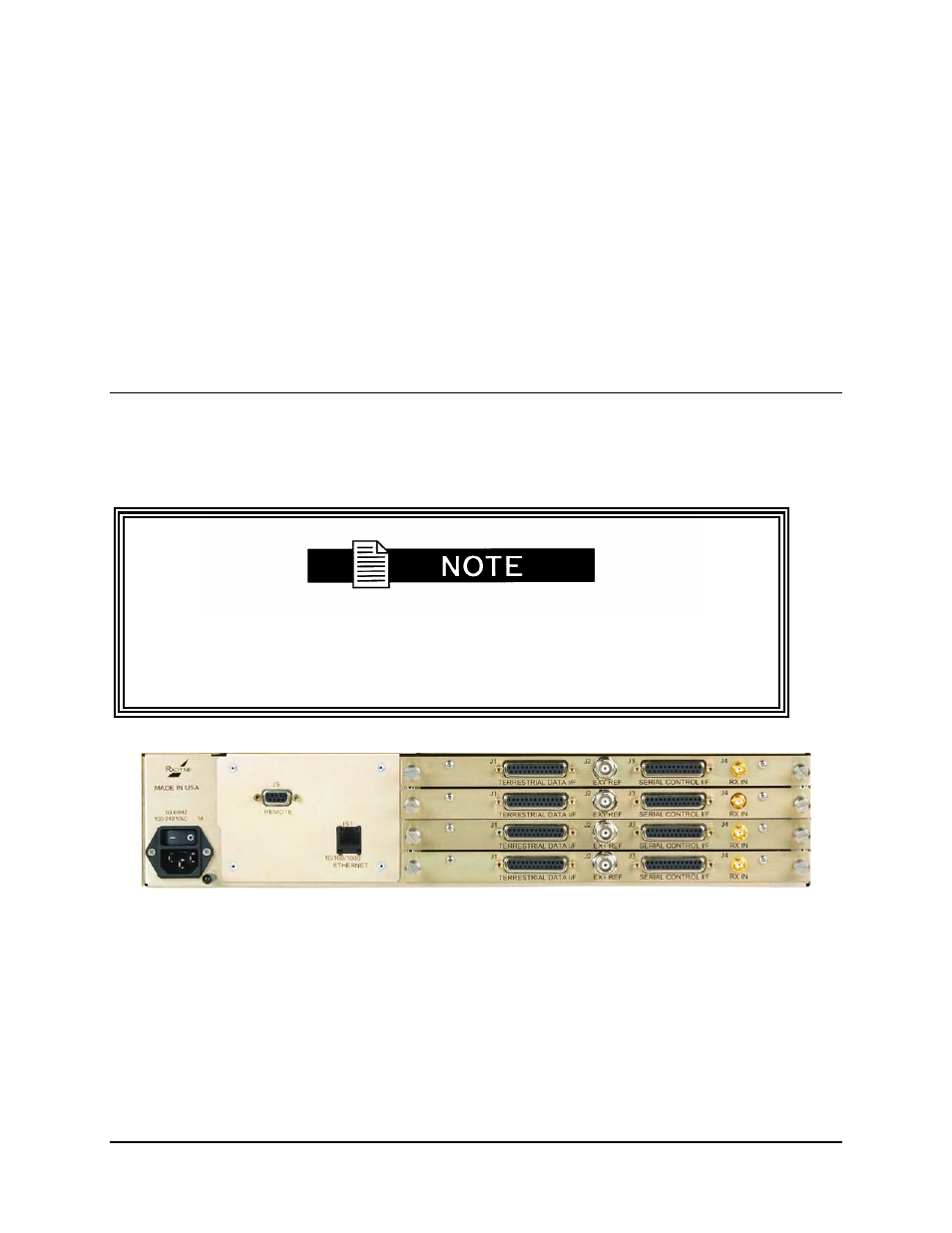

Figure 5-1. MD2401 Satellite Demodulator Rear Panel Connectors
