MD2401 L-Band Multi Demod Installation and Operation Manual

User Interfaces

MN-MD2401

4–9

Revision 7

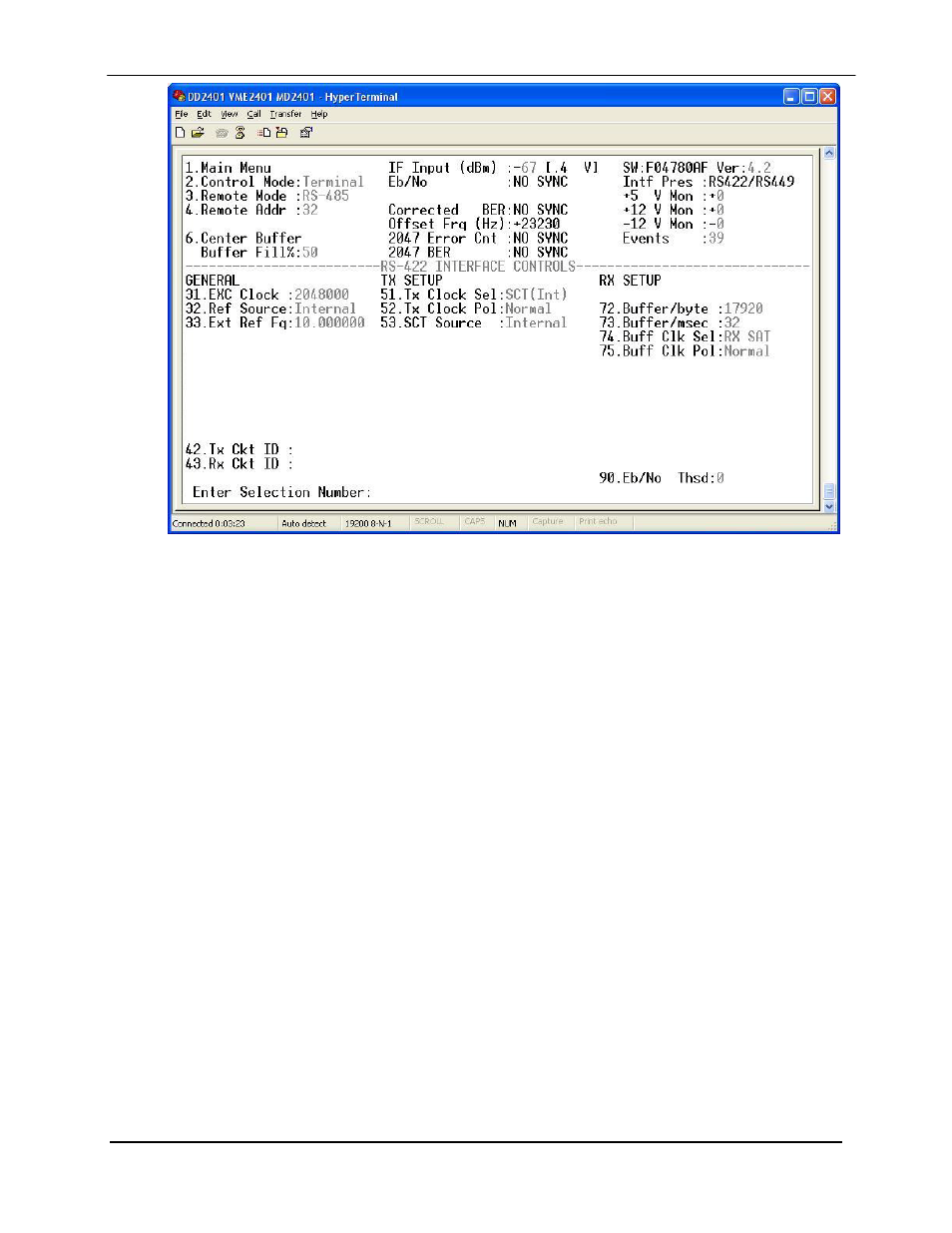

Figure 4-6. Interface Controls Menu

EXC Clock (MHz):

{N/A}

Reference Source:

{INTERNAL, EXTERNAL}

Allows the user to select the Frequency Reference Source.

Ext Ref Frequency (MHz):

{Selectable}

Allows the user to select the Frequency Reference Source.

Buffer Byte Size:

{nnnn Bits}

Allows the user to select the byte size Buffer

Buffer/msec:

{0 - 32 msecs}

Allows the user to set the Doppler Buffer Size in msec.

Buff Clk Select:

{RXSAT, SCTE, SCT}

Shows the current active buffer clock source.

Buff Clk Polarity:

{NORMAL, INVERTED}

Allows the user to select the Buffer Clock Polarity for the Rx
Terrestrial Clock relative to the Rx Data.

RX Ckt ID:

Allows the user to create an ID of the RX circuit.

Eb/No Thsd:

Allows the user to select the low end threshold alarm limits.
