System Overview
Centellis 2000 Shelf - DC Installation and Use (6806800G45F) 48
The hub of the ATCA-MF105 is an unmanaged Layer 2 Gigabit Ethernet switch which provides
the following ports:
 Two dual 10 Mbps Ethernet ports, one to each ShMC
 Two dual 10/100/1000 Mbps Ethernet ports, one to each blade base interface
 One 10/100/1000 Mbps Ethernet out-of-band interface on face-plate (UPLINK ETH)

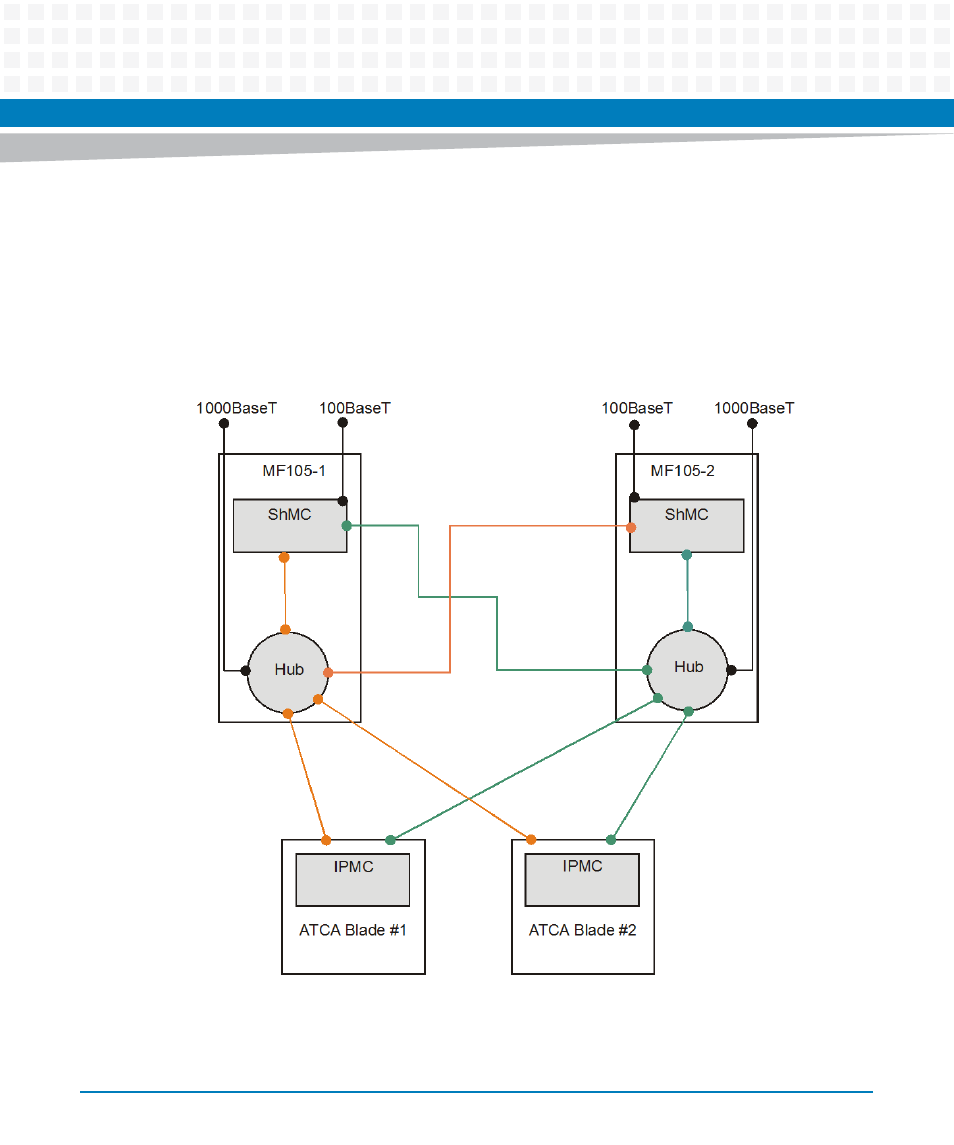

Figure 1-3 MF105 Hub Interfaces
