Replacing the Bottom Air Filter
To replace the bottom air filter, proceed as follows:
1. Remove the front fan tray as described in section
it is not already removed.

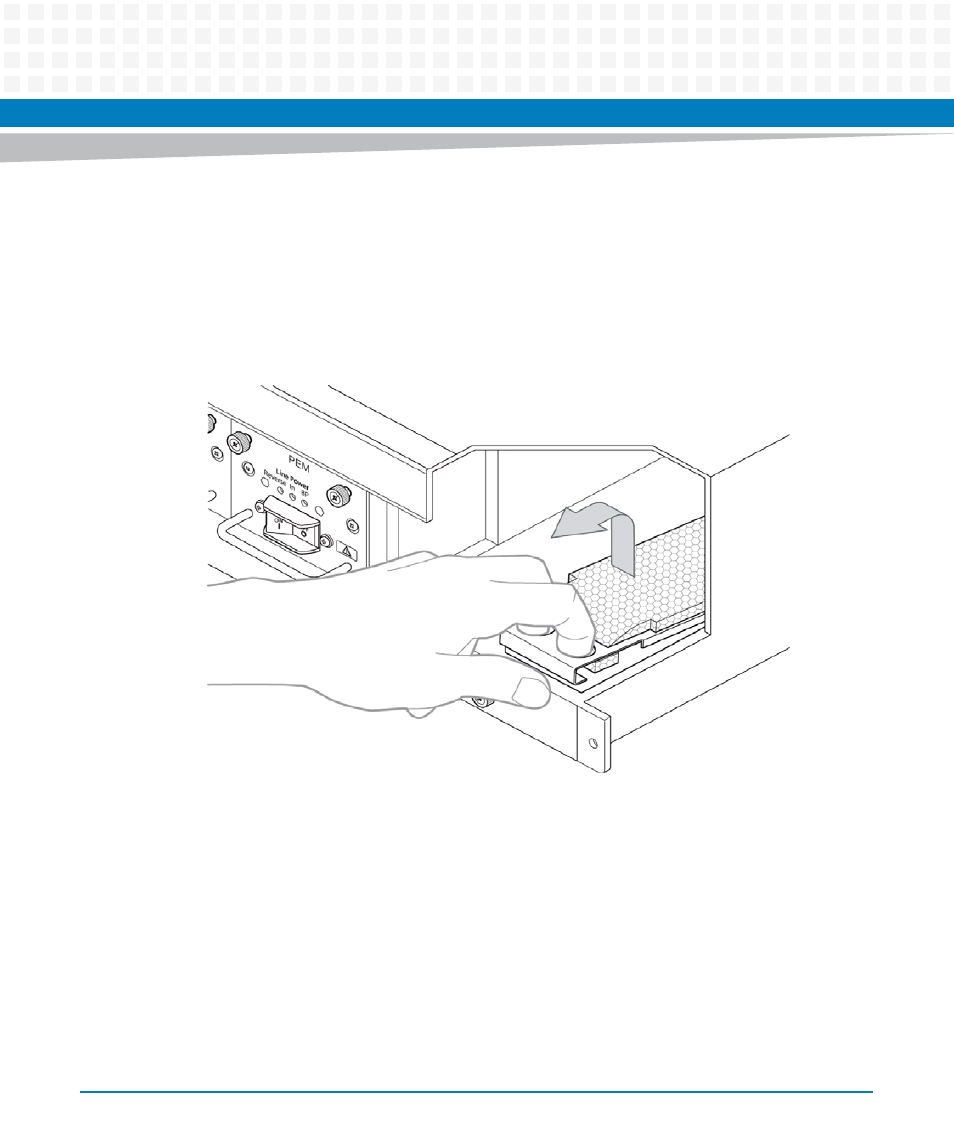

2. Insert two fingers in the round holes at the front of the bottom air filter frame and
pull it upward out of its compartment.
If you have difficulties in removing the frame with your fingers, you can also use a
tool such as a screw driver. In this case, pay attention not to damage the frame or
the shelf.
3. Pull the frame carefully out of the shelf.
4. Detach the air filter from the frame.
5. Attach the new filter to the frame. Align it accurately to the frame.
