Technical Data
Centellis 2000 Shelf - DC Installation and Use (6806800G45F)
168

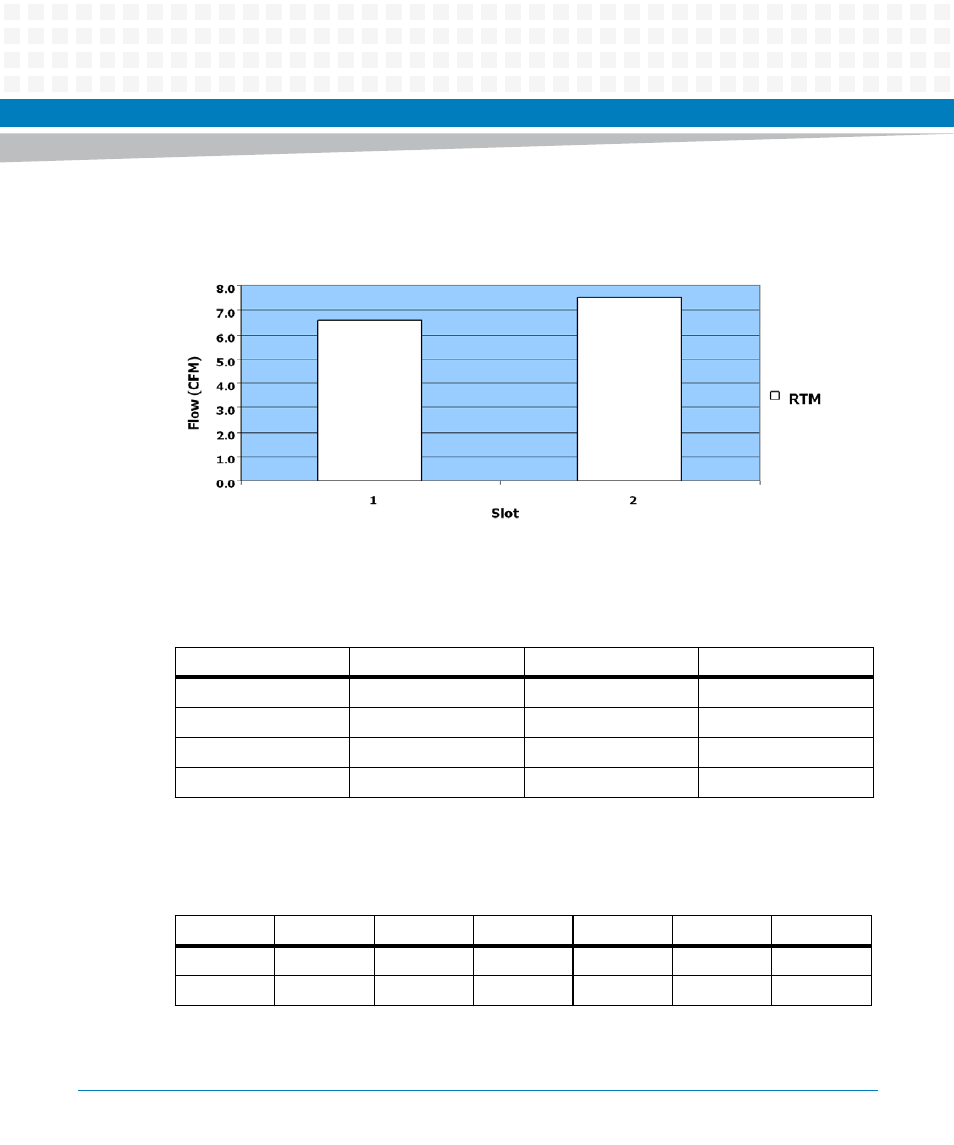

Figure B-7
RTM Slot Volumetric Flow during Front Fan Tray Replacement
Table B-9 Airflow Summary during Rear Fan Tray Replacement
Chassis
Front Blade (FB)
RTM
Total
91.5 CFM
79.9 CFM
11.6 CFM
Maximum
-
40.5 CFM
5.9 CFM
Minimum
-
39.4 CFM
5.7 CFM
Average
-
39.9 CFM
5.8 CFM
Table B-10 Quadrant Detail during Rear Fan Tray Replacement
FBQ1
FBQ2
FBQ3
FBQ4
FB Total
RTM
Slot 1
10.1 CFM
9.8 CFM
9.2 CFM
10.2 CFM
39.4 CFM
5.7 CFM
Slot 2
10.7 CFM
9.3 CFM
10.0 CFM
10.6 CFM
40.5 CFM
5.9 CFM
